500mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm Etc.
Screen Length:
1500mm, 3000mm, 3600mm, 4000mm, 5000mm Etc.
Layers Of Screen:
1~4 Layers Of Screen Available
Discharge Port:
Usually At The Bottom Of The Machine
Mesh Cleaning Method:
Wear-resistant Rubber Balls, Silicone Balls Etc.
Motor Brand:
Siemens, ABB Or Other Brand You Require
Voltage:
380V/3-Ph/50HZ (according To Your Requirement)
Highlight:
gyratory screener for granular graphite
,
granular graphite gyratory screen
,
granular graphite sieving machine

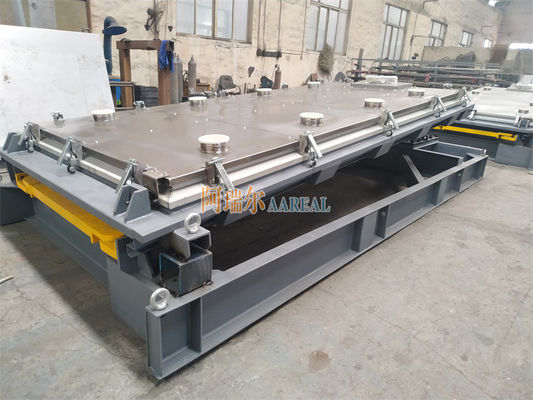

1500*3000mm 1~4 Decks Rotex Gyratory Screener for Granular Graphite Classification
The granular graphite industry demands efficient, durable, and high-capacity screening solutions to handle diverse salt types—from industrial-grade to edible salt—while addressing challenges such as corrosion, high throughput, and precise particle separation. Gyratory screenshave emerged as a cornerstone technology in this sector. Combining the principles of the Rotex gyratory screen and innovative designs like side-door configurations (akin to the Rotex Apex model), these machines excel in performance, adaptability, and maintenance efficiency. This article explores the mechanics, applications, and competitive advantages of gyratory screens in salt processing, with insights into optimizing operational workflows and enhancing sustainability.
Overview of 1500*3000mm 1~4 Decks Rotex Gyratory Screener for Granular Graphite Classification:
1500*3000mm 1~4 Decks Rotex Gyratory Screener for Granular Graphite Classification can also be called Rotex screen, gyratory screen, gyratory screener, gyratory separator, gyratory sifter, Rotex screening machine, Rotex separator, planar rotary screen, plane rotary screen, rotary flat sieve, flat screen, square precision screening machine, reciprocating screen etc.
This gyratory type screening machine is often used for screening petroleum coke, activated carbon, quartz sand, silica sand, frac sand, precoated sand, urea, fertilizer, resin, glass bead, wood pellet, sodium carbonate, melamine, tea, sugar, salt, soybean etc.
Moving Trajectory
gyratory reciprocating motion: circular motion at feed end, elliptical motion at center, and linear motion at discharge end
Drive Device
general motor + exciter
Layers of Screen
1~4 layers of screen available
Screen Size
500*1500mm, 1000*2100mm, 1000*3000mm, 1500*3000mm, 1500*3600mm, 1800*3600mm, 1800*4000mm, 2000*5000mm etc.
Motor Brand
Siemens, or according to customer requirements
Spare Parts
the special screen, drive exciter, compensating clamps and clips are made by ourselves
Discharge Port
usually at the bottom of the machine, it can also be made at the back of the machine
Material
carbon steel, contact parts stainless steel (optional)
Use mesh cleaning balls to clean the screen mesh. Rubber ball, silicone ball, polyurethane ball etc.
Working Principle of 1500*3000mm 1~4 Decks Rotex Gyratory Screener for Granular Graphite Classification:
The gyratory reciprocating motion of gyratory screener machine begins with a circular motion at the feed end, gradually diminishing along the length of the machine to elliptical movement in the middle, and finally to an almost straight-line motion at the discharge end.
Technical Parameters of 1500*3000mm 1~4 Decks Rotex Gyratory Screener for Granular Graphite Classification:
Layers
Model
Screen Surface Specification (W*L) (mm)
Screen Box Stroke (mm)
Motor
A
(mm)
B
(mm)
C
(mm)
D
(mm)
Weight
(kg)
Power
(kw)
Rotation Rate (rpm)
1
AD-1014-1
1000*1400
63.5
1.5
960
2731
962
1168
1200
715
AD-1021-1
1000*2100
63.5
1.5
960
3285
962
1156
1200
980
AD-1030-1
1000*3000
63.5
1.5
960
4484
1035
1194
1251
1200
AD-1521-1
1500*2100
63.5
1.5
960
3460
1003
1708
1759
1380
AD-1530-1
1500*3000
76
2.2
960
4232
1362
1778
1892
1340
AD-1536-1
1500*3600
76
5.5
960
5098
1352
1956
2048
2410
2
AD-1236-2
1200*3600
76
5.5
960
5263
1327
2464
2556
2020
AD-1021-2
1000*2100
63.5
1.5
960
3743
1121
1308
1378
1400
AD-1030-2
1000*3000
76
4
960
4575
1317
1270
1546
1840
AD-1521-2
1500*2100
63.5
4
960
3728
1330
1781
1946
1710
AD-1836-2
1800*3600
76
7.5
960
5305
1500
2256
2459
3880
AD-1530-2
1500*3000
76
7.5
960
4765
1397
1956
2159
2780
AD-1536-2
1500*3600
76
7.5
960
5365
1368
2032
2019
3180
3
AD-1021-3
1000*2100
63.5
5.5
960
4854
1422
1435
1549
2150
AD-1530-3
1500*3000
76
5.5
960
4765
1391
1956
2159
3200
AD-1836-3
1800*3600
76
7.5
960
5200
1500
2400
2500
4170
AD-2050-3
2000*5000
92
11
960
5400
2000
2750
2810
5500
Advantages of 1500*3000mm 1~4 Decks Rotex Gyratory Screener for Granular Graphite Classification:
1. ball cleaning system
2. double-balanced motor system
3. convenient and quick compensating clamps for head cover
4. unique gyratory reciprocating motion
5. automatic screen surface tension device
Features of 1500*3000mm 1~4 Decks Rotex Gyratory Screener for Granular Graphite Classification:
1. Screen service life is long. It is 5~100 times than the ordinary vibrating screen.
2. The soft running does not damage the particles original structure of the material.
3. Three types of screen tensioning spring clips and screen side-pull mode. Easy to remove and replace the screen.
4. Super large capacity and high screening accuracy, suitable for industrial continuous screening.
5. The effect of anti-clogging screen mesh blinding is good. Especially suitable for the screening of materials which are easy plugging and sticking the screen mesh.
6. It is not easy to generate static electricity, especially suitable for the screening of materials those are flammable and explosive, and easy to generate static electricity.
7. Totally enclosed structure, no dust, low noise to 70 decibels.
8. Smooth operation, no special requirement for the plant.
Installation of 1500*3000mm 1~4 Decks Rotex Gyratory Screener for Granular Graphite Classification:

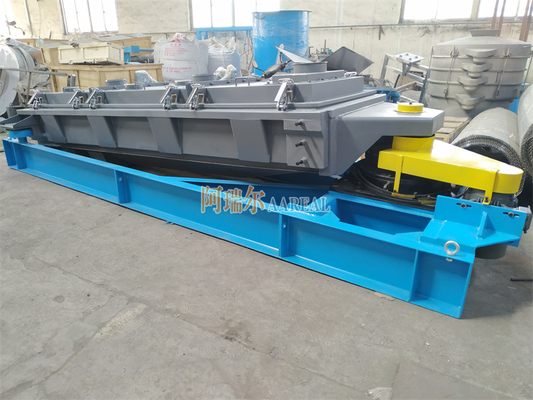

1. Seat Installation:
Forward Type
Direct Discharge Type

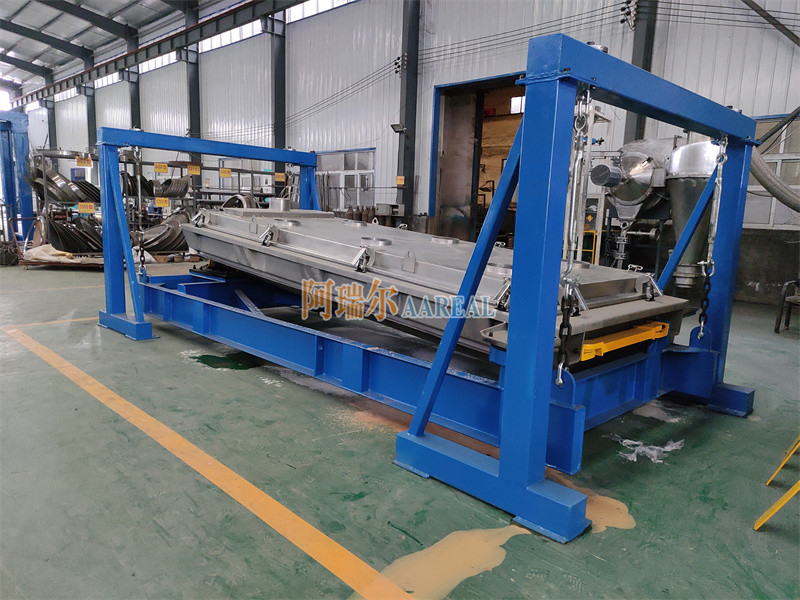

2. Cable Suspension Installation:
Cable Suspension Type
Application of 1500*3000mm 1~4 Decks Rotex Gyratory Screener for Granular Graphite Classification:
Fertilizer: raw material sieving and finished product fine screening.
Including ammonium nitrate, phosphate, potassium hydroxide, urea and other compounds
Grain cleaning: corn, wheat, soybean and other cereals peeling and cleaning
Abrasive: glass beads, slag, alumina, sand and other abrasive materials
Animal feed: feed powder and chips, meat paste and small food
Carbon products: coking coal, graphite, charcoal etc.
Chemical products: hundreds of different compounds
Clay: product classification
Paper: paper pulp, coating
Fiberboard: wood chips, flaking, bits of wood, to make high quality fiberboard
Drug: many large drug manufacturers use our screening machines, which meet the health standard design and GMP, to achieve precise and effectiveseparation and cleaning
Ore: ore, rubble, limestone, soda ash and salt
Plastic: plastic particles, plastic powder
Powder metal: aluminum, copper, iron, nickel, steel, zinc and many other metal powders
Recycling of resources: used in the recycling of various materials, such as PET recycling etc.
Steel-making: classification of steel shot and metal filing
