High Efficiency Large Output 3-Deck 1500*3600mm Petroleum Coke Gyratory Screen Sifter for Screening 0.1mm Powder

High Efficiency Large Output 3-Deck 1500*3600mm Petroleum Coke Gyratory Screen Sifter for Screening 0.1mm Powder​

Introduction of High Efficiency Large Output 3-Deck 1500*3600mm Petroleum Coke Gyratory Screen Sifter for Screening 0.1mm Powder:

AAREAL AD model High Efficiency Large Output 3-Deck 1500*3600mm Petroleum Coke Gyratory Screen Sifter for Screening 0.1mm Powder can be widely used for screening Organosilicone, Polysilicon, Metal Silicon Powder etc. It is mainly designed for large capacity and fine screening needs. Food Grade Rotex Gyratory Screen Sifter for Polysilicon Metal Silicon Powder is one of the most widely used industrial equipment for separation and grading. Occupying a limited floor space the Gyratory Screen Separator works efficiently with very less down time. The number of screens in the Gyratory Screen Separator decides the range of grading, separation of solids from liquids is also workable.

  It is also known as the gyratory sifter, gyratory screen, gyratory screener, gyratory separator, gyratory screening machine, Rotex screen, Rotex screening machine, Rotex separator, planar rotary screen, plane rotary screen, rotary flat sieve, flat screen, square precision screening machine, reciprocating screen etc.

Features​ of High Efficiency Large Output 3-Deck 1500*3600mm Petroleum Coke Gyratory Screen Sifter for Screening 0.1mm Powder:

1. Long screen service life- No vertical component avoid the impact and damage of material to screen.

2. Quick Screen Changes-Quick release device is provided to take down the net rack and replace the screen rapidly.
3. Automatic cleaning- Bouncing balls keep screen openings clean and maintain efficiency and capacity.

4. Various sieving solution- Gyratory screen allows separations with openings from 12mm to 325 mesh.
5. Full utilization of screen surface- Gyratory reciprocating motion ensures material constantly contact with screen surface.
6. Top-class design -Mature technology, easy installation and maintenance, convenient and quick screen replacement.
7. Customized order- multi- layer,different capacity and mesh size can be customized according to customer’s demand.
8. Environmentally Friendly- Fully enclosed structure,no dust pollution,improve working conditions for operators as well.

Useful Information You Can't Miss About High Efficiency Large Output 3-Deck 1500*3600mm Petroleum Coke Gyratory Screen Sifter for Screening 0.1mm Powder:

Technical Parameters of High Efficiency Large Output 3-Deck 1500*3600mm Petroleum Coke Gyratory Screen Sifter for Screening 0.1mm Powder:

Advantages of High Efficiency Large Output 3-Deck 1500*3600mm Petroleum Coke Gyratory Screen Sifter for Screening 0.1mm Powder:

1. unique gyratory reciprocating motion

2. double-balanced motor system

3. automatic screen surface tension device

4. convenient and quick compensating clamps for head cover

5. ball cleaning system

Working Principle of High Efficiency Large Output 3-Deck 1500*3600mm Petroleum Coke Gyratory Screen Sifter for Screening 0.1mm Powder:

  The Rotex type gyratory screener separator could spreads the material across the full width of the screen surface, the material flow thickness will be thiner than other sifting equipment. The material will be easy to be sifting becasuse thiner the flow bed.

Feeding Port → Round Motion → Elliptic Motion → Linear Motion → Discharge Ports

 1. The materials do reciprocating-gyratory motion along with the gyratory screen running, and there is not vertical jump during the gyratory screen running period, the little size material will go to the bottom of the flow bed along moving forward, the material particle will pass the mesh aperture when the particle size is less than the gyratory sifter aperture size. The reciprocating gyratory motion will make the material flow bed touch the screener mesh surface with longer time for increasing the screening efficiency.


 2. The reciprocating gyratory motion of the Rotex gyratory screener will spread the material flow bed evenly along with the screener mesh bed after material fall into the inlet, the material flow bed will be very thin after being spread, it is good for material screening , and the material screening precision and capacity will be increased.

 3. The screen deck of gyratory screening equipment consist of mesh, spring clamp, ball trays and self-cleaning balls. The self-cleaning balls jump ceaselessly along with gyratory screen operation, the ball could hit the screen mesh in order to let the mesh vibration, so the material blocked in the mesh aperture or adhered to the mesh surface will be cleaned out, it could make sure the aperture ratio so guarantee the screening efficiency.


 4. The gyratory screen do not have vertical vibration, so it do not have much load request on the base foundation, it is much lower than the vibration type screening machine, so the gyratory screener could save steel structure cost, the customer do not need to consider the install load limited.

Installation Method of High Efficiency Large Output 3-Deck 1500*3600mm Petroleum Coke Gyratory Screen Sifter for Screening 0.1mm Powder:

1. Seat Installation or Floor Mounting:

            discharge ports at the bottom                                 discharge port at side

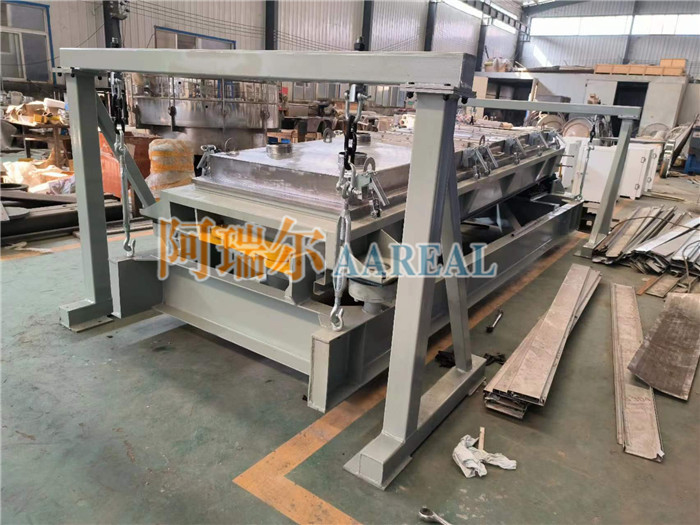

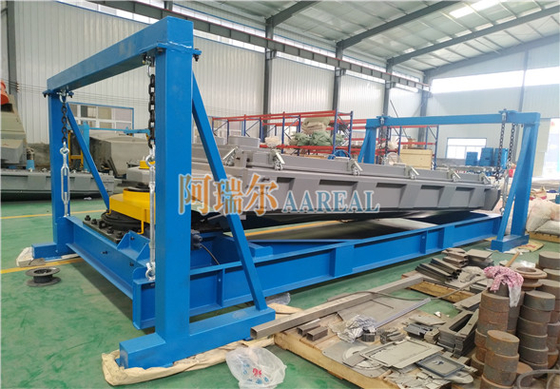

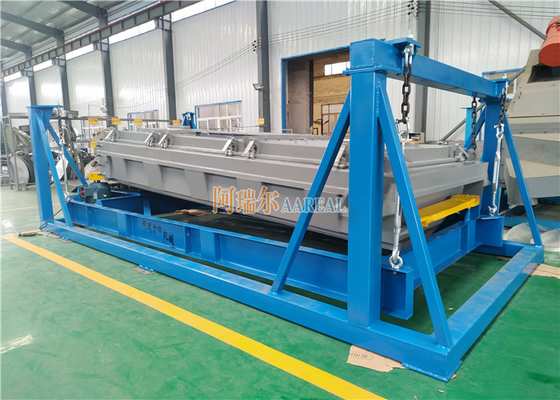

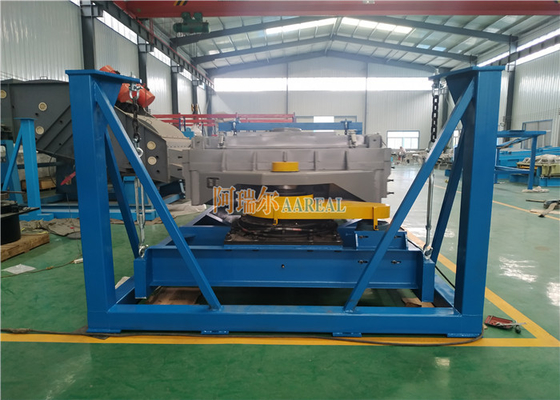

2. Cable Suspension Installation:

                                                        Cable Suspension Type

Application of High Efficiency Large Output 3-Deck 1500*3600mm Petroleum Coke Gyratory Screen Sifter for Screening 0.1mm Powder:

The gyratory screener is very suitable for high yield screening of fine materials.

Silicon: silicon metal powder, polysilicon, organic silicon, silicon carbide, silicon dioxide etc.

Food: sugar, flour, milk powder, coffee, cereals, rice, nuts, condiments, cocoa powder, glucose, starch etc.

Abrasive: glass beads, slag, alumina, sand and other abrasive materials

Clay: product classification

Carbon products: coking coal, graphite, charcoal etc.

Animal feed: feed powder and chips, meat paste and small food

Fertilizer: raw material sieving and finished product fine screening.

Grain cleaning: corn, wheat, soybean and other cereals peeling and cleaning

Drug: many large drug manufacturers use our screening machines, which meet the health standard design and GMP, to achieve precise and effectiveseparation and cleaning

Ore: ore, rubble, limestone, soda ash and salt

Chemical products: hundreds of different compounds

Paper: paper pulp, coating

Fiberboard: wood chips, flaking, bits of wood, to make high quality fiberboard

Plastic: plastic particles, plastic powder

Powder metal: aluminum, copper, iron, nickel, steel, zinc and many other metal powders

Recycling of resources: used in the recycling of various materials, such as PET recycling etc.

Steel-making: classification of steel shot and metal filing Including ammonium nitrate, phosphate, potassium hydroxide, urea and other compounds
