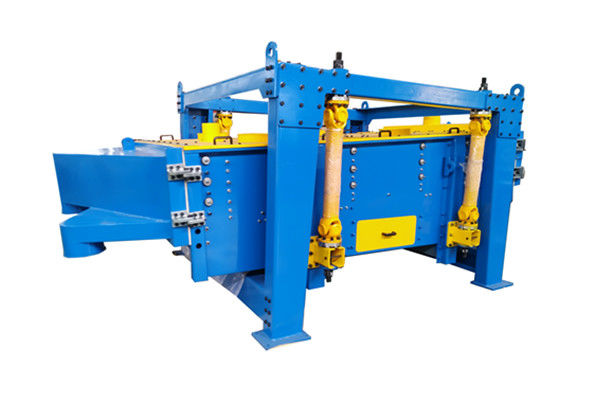

High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter For Screening Marble Calcium Carbonate

High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter For Screening Marble Calcium Carbonate

  • High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter For Screening Marble Calcium Carbonate
  • High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter For Screening Marble Calcium Carbonate
  • High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter For Screening Marble Calcium Carbonate
  • High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter For Screening Marble Calcium Carbonate
High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter For Screening Marble Calcium Carbonate
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film for the machine body, and plywood wooden case (fumigation-free) for the spare parts such as screens etc.
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Layers Of Screen: 1~6 Layers Of Screen (usually 1~5 Layers) Advantages: Large Capacity, High Screening Accuracy, Multi-layer Sieving
Screen Type: Adopt Hook Screens, Durable Mesh De-blinding: Bouncing Rubber Balls
Bearing: HRB, SKF, NSK Or Other Brands Motor: YUTONG, ABB, SIEMENS Or Other Brands
Model: AF-1025, 1030, 1230, 1536, 1840, 2036 Etc. Application: Activated Carbon, Salt, Sugar, Silica Sand, Frac Sand, Fertilizer Etc.
Tags: Gyratory Sifter, Gyratory Sifter For Salt, Salt Screening Machine, Screening Machine For Salt
Highlight:

Large Capacity Gyratory Sifter

,

High Accuracy Gyratory Sifter

,

3 Decks Gyratory Sifter

High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter for Screening Marble Calcium Carbonate



Overview of High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter for Screening Marble Calcium Carbonate​​:

High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter for Screening Marble Calcium Carbonate can increase your plant's productivity by reducing the costs associated with routine maintenance and unscheduled repairs. That means fewer production outages and fewer instances of pulling employees away from other duties for unscheduled maintenance. It all adds up to less frustration, greater productivity, and lower production costs.

  This gyratory sieving equipment is the ideal industrial screening machine for dry applications where a cleaner separation is necessary, providing higher screening capacity and a much cleaner product. Our AF model gyratory sifter machine is also the perfect industrial screening equipment for sifting and screening materials with variables shapes, due to its gyratory, side to side sifting motion. This gyratory screener also offers numerous advantages over traditional rectangular screening equipment, making the gyratory vibrating screen machine the most advanced and easy-to-own industrial sifter.



Some Information You May Care About High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter for Screening Marble Calcium Carbonate​​:



Motion  gyratory reciprocating motion: the material is completely covered   with the screen, making full use of the screen
Layers of Screen  1~6 layers, even 10 layers under special circumstances
Duplex Screening  can realize multi-layer double screening with the same mesh
Screen Type  hook screen
Drive Device  exciter + motor + belt
Motor Brand  Siemens, ABB etc.
Amplitude  large horizontal amplitude can effectively improve the screening   effect of near-size particles
Mesh Cleaning Method  rubber balls
Application  quartz sand, fertilizer, activated carbon, fracturing sand, petroleum   proppant, petroleum coke, plastic particles, sugar, salt etc.



Benefits of High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter for Screening Marble Calcium Carbonate​​:
1. Quick and easy screen changes and inspection;
2. Easy access to screens through hinged doors on both ends;
3. Quality and reliability;
4. Zero-maintenance, lubed for life, single bearing drive.



Features of High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter for Screening Marble Calcium Carbonate​​:

1. Even product distribution – much cleaner separation
With a side by side gyratory motion and a feed distributor the AF model gyratory industrial sifter is capable of providing a much better separation, which improves your product quality and build customer trusts. This technology also helps this gyratory screening equipment separate material with different shapes in different angles, that otherwise will pass the screen with a vibratory action, making the AF model gyratory sieve machine a one of its kind gyratory screener.



2. Easy access to the screens – operator friendly
Featuring easy to open hinged doors from both ends, the AF model gyratory screening machine makes the operators’ job easier and faster, improving your plant productivity and reducing downtime.



3. Higher sieving capacity
Implementing higher frequency and adding more revolutions per minutes, this modern screening machine provides greater throughput compared to competing industrial vibrating sifters.



4. Low maintenance
The easy to open doors to clean, replace and inspect the mesh screen, along with a low maintenance drive and screen assembly, the AF model gyratory vibrating sifter machine is a cost-effective gyratory screening machine to own.



5. Easy-to-tension screening media
With its tension in place technology the AF model gyratory screener makes it easier for operators to tension the screens in every deck without having to dismantle the screener decks. With hook style screens, operators can easily adjust and tension screens from outside this screening equipment – this also eliminates the need for multiple screens panels, reducing downtime.



6. Improved productivity
The AF model rectangular gyratory sifter equipment increases productivity in your plant by reducing downtime and increasing capacity. Featuring advanced designs and technologies this industrial sifter eliminates the headaches experienced by operators in other traditional vibratory sifters.



7. Reduced costs
This industrial screening machine is engineered to reduce operating costs and lower downtime in processing plants – featuring easy to maintain technologies, this industrial screener is aimed to reduce costs in your plant and boost profitability.



High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter For Screening Marble Calcium Carbonate 0High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter For Screening Marble Calcium Carbonate 1

High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter For Screening Marble Calcium Carbonate 2High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter For Screening Marble Calcium Carbonate 3

     Both sides of the screen are tensioned                              Ball Decks



Working Principle of High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter for Screening Marble Calcium Carbonate​​:

High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter For Screening Marble Calcium Carbonate 4

   The total gyratory movement of the square gyratory sifter can rapidly spread, stratify and separate the material. The unique gyratory motion can quickly spread the material across the full width of screen at the feed end, driving the particles move forward contact with the screen surface. The large horizontal amplitude can improve the sieving effect of the near-size particles, and can improve the material handling capacity of the machine.

   How does the gyratory sifter work? The gyratory sifter is also called reciprocating screener from the motion of screen box. The vibratory force produced by the driving device is the inertial force twining along the dead axle, the direction of which is changed according to a certain regular. The essence of gyratory sifter is the reciprocating intertia force formed by the rotation of eccentric wheel winding the dead axle. According to the structure characteristics and working principle of gyratory screen, its screen surface is arranged with level or incline (the angle of inclination is 0~5 degree). Working principle of gyratory screen is that after starting the screen machine, the shaking body of screen machine namely screen box make ront-rear reciprocating motion under the action of the inertial force, screen box drives screen surface to make periodic shaking, which makes the materials on the screen surface to make directional jumping movement with the screen box. During the period, the material less than the aperture of the screen surface fall to under layer through the sieve mesh to became the screen underflow. The material greater than the aperture of the screen surface is discharged from the discharge gate after the continuous roll jumping movement and finally complete screening work.
  From the structure and working principle of gyratory screener we could see that the residence time of material staying on the screen surface namely the distance of its drive machanism eccentric wheel apart from the motion trial of material has a very important influence, that is to say, having the opposite effect to processing capacity and screening efficiency of screening machine. On the account, in the actual sieve assignments we can make our choice in the two aspects of production capacity and screening efficiency.



Technical Parameters of High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter for Screening Marble Calcium Carbonate​​:

High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter For Screening Marble Calcium Carbonate 5

Model Screen Surface Specifications

Power

(kw)

Amplitude (mm) Operating Frequency (r/min) Leaning Angle of Screen (°)

L*W*H (mm)

(Reference)

AF-515 500*1500 2.2 20~60 180~300 4~8 2900*1150*1500
AF-520 500*2000 2900*1150*1900
AF-525 500*2500 3400*1150*1900
AF-1025 1000*2500 3 3400*1700*1950
AF-1030 1000*3000 3900*1700*1950
AF-1036 1000*3600 4500*1700*1950
AF-1530 1500*3000 5.5 3900*2200*1950
AF-1536 1500*3600 4500*2200*1950
AF-1830 1800*3000 7.5 3900*2500*1950
AF-1836 1800*3600 4500*2500*1950
AF-2030 2000*3000 7.5 3900*2700*1950
AF-2036 2000*3600 4500*2700*1950

Note:

All specifications of this series of screening machine can be equipped with one to six layers of screen mesh. It can be equipped with ten layer screen mesh under special circumstances.



Application of High Accuracy Large Capacity 1500*3600mm 3~4 Decks Gyratory Sifter for Screening Marble Calcium Carbonate​​:

  Our AF model gyratory industrial sifter machine can be widely used in the high-demand screening processes, such as bentonite, fertilizer, fracturing sand, activated carbon, lime, petroleum coke, plastics, PVC powder, salt, sugar, etc.
