Capacity Gyratory Screen SKF Bearings Multi Deck Hook Plate Screen Easy Screen Replacement

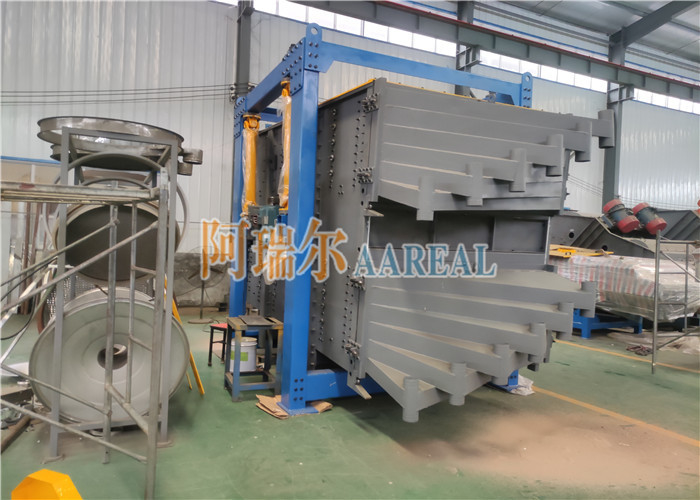

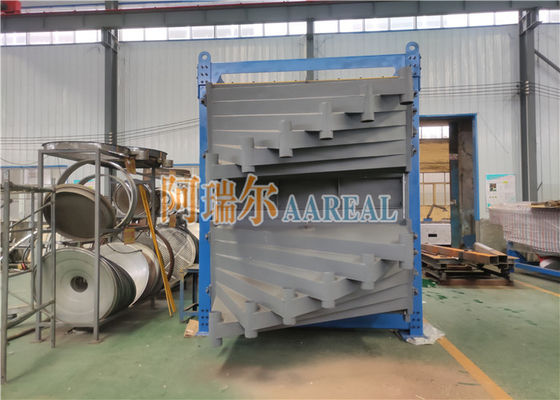

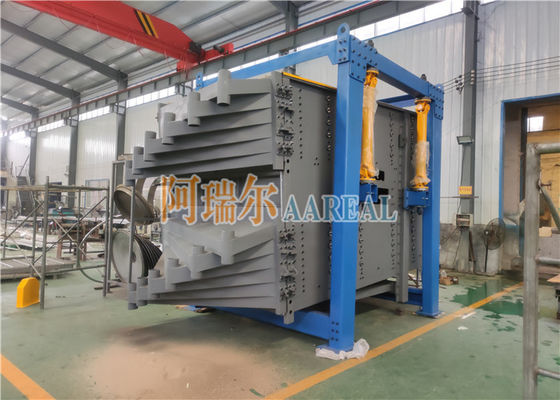

2000*4000mm Multi Deck Sweco Bigmax Gyratory Sifter For Silica Sand Glass Sand

Overview of 2000*4000mm Multi Deck Sweco Bigmax Gyratory Sifter For Silica Sand Glass Sand:

1800*3600mm Multi-Deck Gyratory Sifter Screen For Construction Sand Silica Sand​ is a new type of high-performance industrial sifting equipment. It does gyratory reciprocating motion. This sifter is designed to provide high throughput rate while ensure cleaner separation.

  1. Screens can be replaced from either end of machine
  2. Adjust and tension screens from outside sifter
  3. Long retention time and accurate separations
  4. Higher capacity while cleaner separation

  Our 2AFF model gyratory sifter separators can maximize the productivity, provide maximum vibration control and enables maximum recovery of clean and acceptable product. This sieving machine can increase your plant's productivity by reducing the costs associated with routine maintenance and unscheduled repairs. That means fewer production outages and fewer instances of pulling employees away from other duties for unscheduled maintenance. It all adds up to less downtime, larger capacity and lower cost.

  The gyratory sifter can be widely used in chemical, metallurgy, food, mineral and other industries for sifting dry materials, such as sand, fertilizer, feed, minerals and other bulk solids.

Application of 2000*4000mm Multi Deck Sweco Bigmax Gyratory Sifter For Silica Sand Glass Sand:

The gyratory sifter can be widely used in metallurgical, abrasive, mining, quarrying, chemical, clay, glass, building materials, medicine, food processing, grain, plastics and other industries of fine classification.

This kind of gyratory screening machine can be used for the most demanding screening requirements of silica sand, activated carbon, fertilizer, frac sand, plastic particles, polyvinyl chloride powder, limestone, petroleum coke, sugar, salt etc.

Working Principle of 2000*4000mm Multi Deck Sweco Bigmax Gyratory Sifter For Silica Sand Glass Sand:

   What is AAREAL AF and 2AFF model gyratory sifter? How does the multi-deck gyratory sifter work?

   The total gyratory motion of the multi-deck gyratory sifter for silica sand glass sand can rapidly spread, stratify and separate the material. The unique gyratory motion can quickly spread the material across the full width of screen at the feed end, driving the particles move forward contact with the screen surface. The large horizontal amplitude can improve the sieving effect of the near-size particles, and can improve the material processing capacity of the machine.

Characteristics of 2000*4000mm Multi Deck Sweco Bigmax Gyratory Sifter For Silica Sand Glass Sand:

1. The unique gyratory reciprocating motion makes the whole screen surface of gyratory sifter for petroleum coke have the equivalent screening efficiency, which can realize the large yield and high precision screening.

2. Quick-open type hinged door and rapid screen mesh tension system ensure quick replacement and inspection of screen mesh.

3. The high speed rotation of the exciter improves the acceleration value of the elastic ball, so that the elastic ball impacts screen surface more powerfully. The screen mesh is not easy to plug, prolonging the service life of the screen, reducing the downtime, and ensuring the continuity of screening.

4. The unique suspension system makes the whole machine run smoothly. The sieving machine itself is less destructive. The basic dynamic load is low and the equipment does not need to be fixed.

5. Forward stretch material discharging, easy to collect.

6. Vibration exciter is maintenance-free within 2 years. Adopt high quality lubricating grease, high quality sealing ring and high quality sealing bearing.

7. The dynamic balance drive increases the exciter's rotation speed from 150~180 RPM to 300 RPM.

8. Soft running and low noise.

9. Larger capacity. Duplex screening is available.

10. Fully enclosed structure and dust-free.

11. The movement of the multi-deck gyratory screen separator for activated carbon​, the screen mesh protection support design, and the effective cleaning of the elastic ball make the screen service life long.

                  Quick-open Door                                                       Vibration Exciter

     Both sides of the screen are tensioned                                       Ball Deck

Technical Parameters of 2000*4000mm Multi Deck Sweco Bigmax Gyratory Sifter For Silica Sand Glass Sand:

Note:

All specifications of this series of gyratory screener can be equipped with one to six layers of screen mesh. Under special circumstances, it can be equipped with ten layer screen mesh.

FAQs:

Q: Are you a manufacturer?
A: Yes, sure. We are the manufacturer of sieving and filtering equipment. Our factory was established in the year 2008. We can customize screeners according to customer requirements

Q: What's your main products?
A: Our main products are Rotex gyratory screen, SWECO type gyratyory sifter, tumbler screening machine, rotary vibrating screen, linear vibrating screen, rectangular separator, ultrosonic separator, low-profile flow-thru inline vibrating control sieve, centrifugal sifter, rotap type test sieve shaker, mogensen sieve, probability screen, wet screening machine, dewatering screen, rotary trommel screen, vibrating wire cloth Screen machine, electromagnetic vibrating feeder, screw conveyor, bucket elevator, vibrating mill, crusher etc.

Q: How to choose a suitable model?
A: please let me know the follwing questions so that we can recommend you the suitable model.
1. what is the raw material do you want to process? And what is the material's specific gravity? Does this kind of material have special physical and chemical properties? Such as high temperature, high water content, easy to corrosion etc.
2. what is the purpose to use a sieving machine? Grading, filtering or removing impurities?
3. what is the feeding capacity per hour do you require?
4. Is it possible to know the particle size distribution of the feeding material?
5. how many layers of screen do you need? Please notice that one layer has 2 outlets, 2 layers have 3 outlets, etc.
6. what is the mesh size for each layer?
7. what is the voltage and hertz do you ask for?
