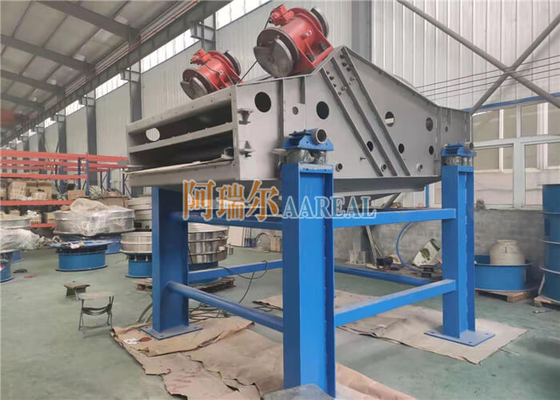

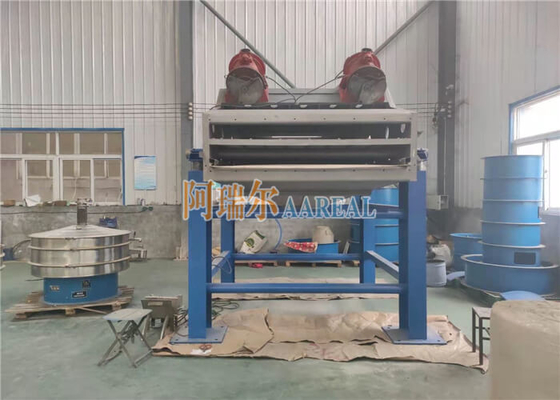

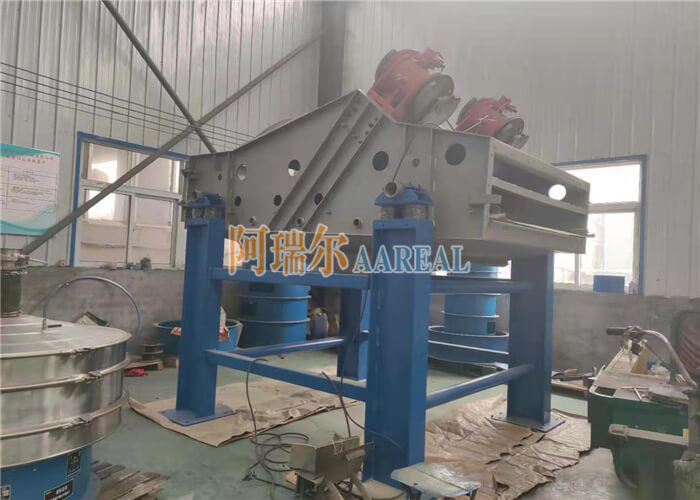

1500*3000mm Rectangular Linear Vibrating Screen For Sugar Stainless Steel

1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar

Overview of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar​​:

1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar is also known as the mogensen sizer, mogensen screen, mogensen sieve, mogensen screener, mogensen screening machine, probability sieve, vibration probability screen, vibrating probability screen, vibration probability sieve, vibrating probability sieve etc. It is a kind of screening machine that actively uses the principle of probability screening.

  The high efficiency vibration probability screen is a kind of new efficient screening equipment. The moving trajectory of the sieve box is linear. It adopts multi-layer and large inclined angle screen surface. The angle of the screen increases from top to bottom. And using probability theory, the mesh size is larger than the required sieve size, generally 1.2~2.2 times, which greatly improves the screening efficiency and production capacity.

  This kind of high efficiency vibrating sieve has been widely used in metallurgy, building materials, coal and other industrial departments for medium and fine particle size grading.

  This series of vibration sieving machine is a successful example of the combination of probability theory and engineering practice. Its new design concept, unique structure and screening principle have achieved the perfect screening effect of the probability screen and have a wide application prospect.

Working Principle of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar:

  The screen surface does linear vibration relying on the vibration excitation device. The high efficiency vibration probability sizer adopts the screen mesh which is bigger than the sieving granularity. Probability vibrating screen adopts multi-layer (usually 3 ~ 6 layer), large dip angle (generally 30°~60°), and large sieve mesh (the screen mesh size is 2~10 times of the separation size) as the screen surface. It consists of a frame, double vibrating motors and a group of multi-layer overlapping screens whose gradient increase from top to bottom, and the mesh of which decrease progressively.

  The whole equipment is mounted on a set of elastic elements. High frequency vibration is obtained by the screen through the rotation of vibration motor.

  The mesh size of high efficiency vibration probability screen is generally larger than particle size. As soon as the material enters the screen machine, it disintegrates rapidly, thereby eliminating the mesh clogging phenomenon may caused by the critical particles.

Main Dimensions of 1500*3000mm High Efficiency Stainless Steel Rectangular Linear Vibrating Screen for Sugar:
