|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts|
|Delivery Time:||30~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Moving Track:||Circular Vibrating Motion||Structural Composition:||Screen, Screen Box, Vibrator And Damping Spring Etc.|
|Screen Decks:||1~3 Decks||Screen Surface:||Inclined|
|Feeding Size:||<400mm||Screen Material:||High Manganese Steel Woven Wire Mesh, Rubber Sieve Plate, Perforated Screen Plate Etc.|
|Screen Angle:||Screen Surface Angle Of Inclination Adjustment Can Be Realized By Changing The Spring Support Position Height||Application:||Building Materials, Electricity, Water Conservancy, Light Industry And Chemical Industry Etc.|
inclined vibrating screen,
dewatering vibrating screen

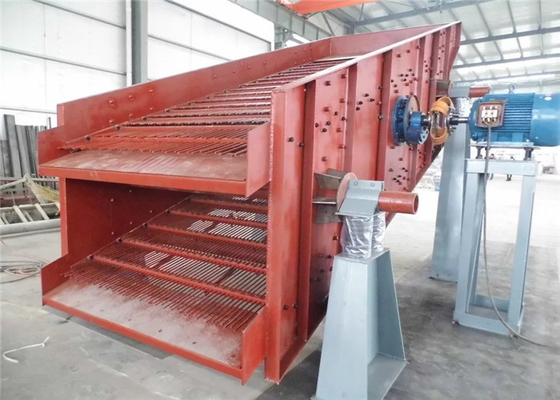

High Efficiency Rectangular Vibrating Screen Machine For Building Materials
Introduction of High Efficiency Horizontal Circular Vibrating Screen Machine for Building Materials:

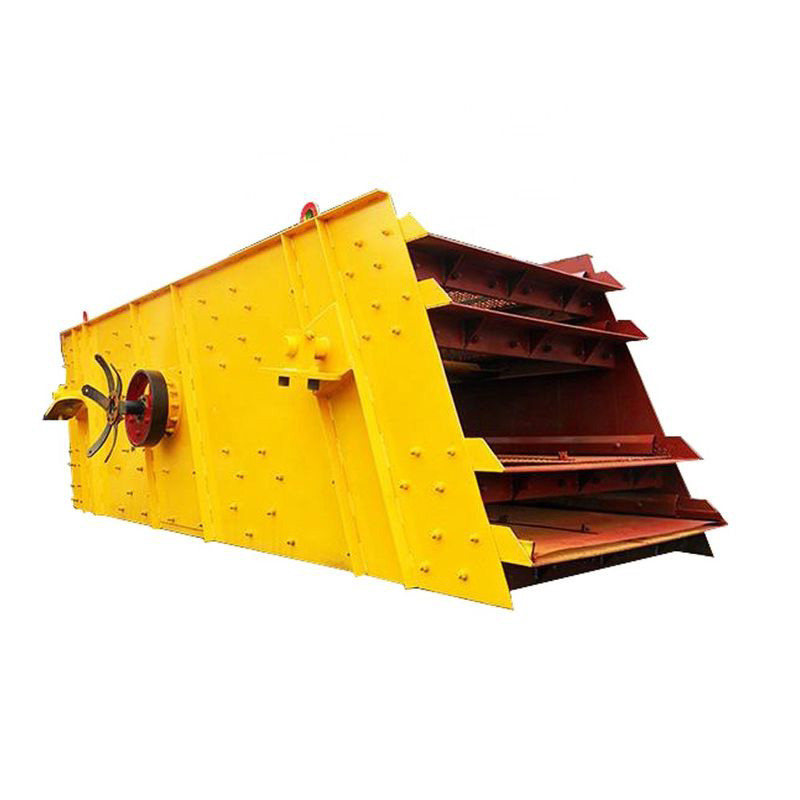

High Efficiency Horizontal Circular Vibrating Screen Machine for Building Materials is a kind of multi deck vibrating screen with circular motion, which is specially designed for quarry to separate crushed stone material into different sizes, and is also used as a grading machine in coal dressing, ore dressing, construction material, electric and chemical industries. circular vibrating screen has a feature of advanced structure, powerful vibrating forces, low vibration noise, easy maintenance, high durability and etc.
Application of High Efficiency Horizontal Circular Vibrating Screen Machine for Building Materials:
Metal, metallurgical mining: aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, manganese dioxide, electrolytic copper powder, electromagnetic material, abrasive powder, refractory material, kaolin, lime, alumina, heavy carbonic acid Calcium, quartz sand, etc.
Food industry: powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, juice, etc.
Chemical industry: resins, coatings, industrial pharmaceuticals, cosmetics, paints, Chinese medicine powder, etc.
Pollution treatment: waste oil, wastewater, dyeing and finishing wastewater, additives, activated carbon, etc.
Model About High Efficiency Horizontal Circular Vibrating Screen Machine for Building Materials:
Take 2YK1845 for an example.
2: Screen Layers (Omit if single layer)
Y: Circle Vibration
K: Eccentric Block Vibrator
18: Screen Width (dm)
45: Screen Length (dm)
Advantages of High Efficiency Horizontal Circular Vibrating Screen Machine for Building Materials:
1. Block eccentricity is adopted as the excitation force with strong excitation force.
2. The sieve beam and the sieve box are connected by high-strength bolts without welding.
3. Screen machine structure is simple, easy to operate.
4. The screen adopts unique design, and it only takes 3-5 minutes to replace the screen quickly.
5. The use of small amplitude, high frequency, large inclination structure, so that the screening efficiency of the machine, long life, low power consumption, low noise.
Working Principle of High Efficiency Horizontal Circular Vibrating Screen Machine for Building Materials:
The circular vibrating screen utilizes a motor external mopping vibrator to make the screen body reciprocally vibrate in the direction of the exciting force, and the material is circularly moved on the screen surface to achieve the purpose of screening. It consists of vibration source, sieve body, screen mesh, vibration damping device, base, etc. It has reasonable structure and is durable.
The circular vibrating screen mainly comprises a sieve box, a screen mesh, a vibrator, a vibration-damping spring device, a chassis, a suspension (or support) device and an electric motor.
The circular vibrating screen structure is composed of a spring support group, a transmission device, a sieve box, a support base, a thin oil lubrication vibrator and the like.
The drive screen machine adopts a petal coupling and a flexible disc coupling which are simple in structure and easy to manufacture and repair, and overcomes the defect that the universal joint is easy to be damaged; the vibrator adopts an eccentric structure and has a simple structure; The application of the feeding box and the feeding box increases the effective screening area of the vibrating screen, and at the same time prolongs the service life of the feeding end screen; the transmission part adds an intermediate transition bearing seat, and the application of the intermediate transition bearing seat effectively protects the motor and extends the motor Service life. The motor is mounted on the left side of the screen frame and can also be mounted on the right side of the screen frame. This series of screens is mounted in a seat. The adjustment of the screen inclination can be achieved by changing the height of the spring support.
Technical Parameter of High Efficiency Horizontal Circular Vibrating Screen Machine for Building Materials:
|Layer||Area||Dip Angle||Sieve Mesh||Structure||Power||Working||Turn On or Off|
Contact Person: Ms. Magie
Movement: linear motion
Drive Device: double horizontal vibrating motor or vibration exciter
Dip Angle: the dip angle of the screen surface can be adjusted from -2 to 10 degrees
Application: often used in coal preparation, ore dressing, power generation, sugar making, salt making and other industrial sectors
