Motion: | Gyratory Reciprocating Motion | Drive Device: | General Motor + Exciter (drive Head) |
---|---|---|---|
Max. Screen Size: | Screen Width*length 2000mm*5000mm | Material: | Only Contact Parts Stainless Steel |
Spare Parts: | Drive Exciter, Special Screens, Compensating Clamps, Clips, Drag Link Etc. | Layers Of Screen: | 1~4 Layers Of Screens |
Mesh Cleaning Method: | Silicone Balls | Discharge Port: | At The Bottom Of The Machine |
Motor Brand: | Siemens, ABB Etc. | Voltage: | 380V, 415V/Three Phase/50HZ Etc. |
Highlight: | 1800*3600mm Gyratory Screen Machine,Calcined Soda Gyratory Screen Machine,Calcined Soda rotex vibrating screen |

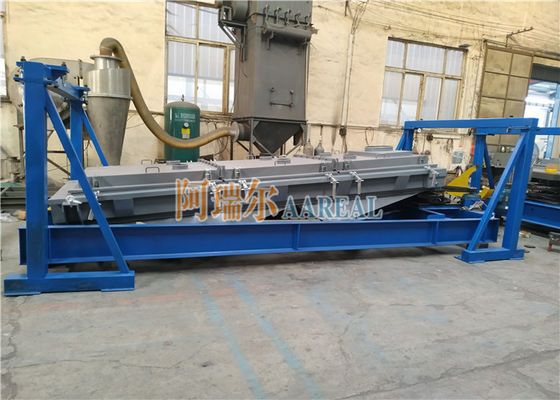

1800*3600mm Industrial Rotex Type Gyratory Screen Machine for Sodium Carbonate Calcined Soda
Overview of Industrial Rotex Type Gyratory Screen Machine for Sodium Carbonate Calcined Soda:
Industrial Rotex Type Gyratory Screen Machine for Sodium Carbonate Calcined Soda is also called gyratory screen, gyratory vibrating screen, gyratory screener, gyratory separator, gyratory sifter, gyratory screening machine, Rotex screen, Rotex screening machine etc.
The main function of AD model gyratory screening machine is to provide accurate separation of materials without product deterioration, thereby resulting greater product yields at higher production rates. This machine consists of top cover, top screen fame, spacer, bottom screen fame, the base space and the screen box. The unique gyratory motion of the near horizontal screen surface and the available screen mesh cleaning system secure the gyratory vibrating screen quality as a high capacity product that efficiently developed for materials screening purposes.
To pursue sieving accuracy simply will sacrifice the production, and pursuing big production will drop the accuracy. Square precision gyratory screen is high-precision and high-performance large production efficient device which specially designed for the above problems. It is widely used for the industries such as chemical, metallurgy, non-ferrous metal, ferrous metal, food and abrasive material etc.
Moving Trajectory | gyratory reciprocating motion: circular motion at feed end, elliptical motion at center, and linear motion at discharge end |
Drive Device | general motor + exciter |
Layers of Screen | 1~4 screen decks |
Screen Size | 500*1500mm, 1000*2100mm, 1000*3000mm, 1500*3000mm, 1500*3600mm, 1800*3600mm, 1800*4000mm, 2000*5000mm etc. |
Motor Brand | Siemens, ABB, China Made, or according to customer requirements |
Spare Parts | the special screen, drive exciter, compensating clamps and clips are made by ourselves |
Discharge Port | usually at the bottom of the machine, it can also be made at the back of the machine |
Material | carbon steel, stainless steel, aluminium alloy etc. (optional) |
Installation | floor seat installation, cable suspension installation |
Mesh Cleaning Method | Use mesh cleaning balls to clean the screen mesh. Rubber ball, silicone ball, polyurethane ball etc. |
Features of Industrial Rotex Type Gyratory Screen Machine for Sodium Carbonate Calcined Soda:
1. Screen service life is long. It is 5~100 times than the ordinary vibrating screen.
2. Super large capacity and high screening accuracy, suitable for industrial continuous screening.
3. The effect of anti-clogging screen mesh blinding is good. Especially suitable for the screening of materials which are easy plugging and sticking the screen mesh.
4. The soft running does not damage the particles original structure of the material.
5. Three types of screen tensioning spring clips and screen side-pull mode. Easy to remove and replace the screen.
6. It is not easy to generate static electricity, especially suitable for the screening of materials those are flammable and explosive, and easy to generate static electricity.
7. Smooth operation, no special requirement for the plant.
8. Totally enclosed structure, no dust, low noise to 70 decibels.
Advantages of Industrial Rotex Type Gyratory Screen Machine for Sodium Carbonate Calcined Soda:
1. unique gyratory reciprocating motion
2. automatic screen surface tension device
3. ball cleaning system
4. double-balanced motor system
5. convenient and quick compensating clamps for head cover
Working Principle of Industrial Rotex Type Gyratory Screen Machine for Sodium Carbonate Calcined Soda:
Driven by an ordinary motor, this gyratory screening machine drives the eccentric wheel to do gyratory reciprocating motion.
The gyratory reciprocating motion of gyratory screen begins with a circular motion at the feed end, gradually diminishing along the length of the machine to elliptical movement in the middle, and finally to an almost straight-line motion at the discharge end.
Gyratory Reciprocating Motion:
1.Circular motion at the feed end
The gyratory movement at the feed end can quickly complete the material’s spreading, stratifying, separating and moving forward across the full width of the screen surface.
2. Changing to elliptical motion at center
The long-stroke elliptical movement can enhance material stratification, improving the screening capacity and sieving effect of near-size particles.
3.Straight line motion at the discharge end
The linear sifting motion at the discharge end has almost no particles jump vertically, which ensures that the material is in constant contact with the screen surface.
Technical Parameters of Industrial Rotex Type Gyratory Screen Machine for Sodium Carbonate Calcined Soda:
Layers |
Model | Screen Surface Specification (W*L) (mm) | Screen Box Stroke (mm) | Motor |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Weight (kg) |
|
Power (kw) |
Rotation Rate (rpm) | |||||||||
1 | AD-1014-1 | 1000*1400 | 63.5 | 1.5 | 960 | 2731 | 962 | 1168 | 1200 | 715 |
AD-1021-1 | 1000*2100 | 63.5 | 1.5 | 960 | 3285 | 962 | 1156 | 1200 | 980 | |
AD-1030-1 | 1000*3000 | 63.5 | 1.5 | 960 | 4484 | 1035 | 1194 | 1251 | 1200 | |
AD-1521-1 | 1500*2100 | 63.5 | 1.5 | 960 | 3460 | 1003 | 1708 | 1759 | 1380 | |
AD-1530-1 | 1500*3000 | 76 | 2.2 | 960 | 4232 | 1362 | 1778 | 1892 | 1340 | |
AD-1536-1 | 1500*3600 | 76 | 5.5 | 960 | 5098 | 1352 | 1956 | 2048 | 2410 | |
2 | AD-1236-2 | 1200*3600 | 76 | 5.5 | 960 | 5263 | 1327 | 2464 | 2556 | 2020 |
AD-1021-2 | 1000*2100 | 63.5 | 1.5 | 960 | 3743 | 1121 | 1308 | 1378 | 1400 | |
AD-1030-2 | 1000*3000 | 76 | 4 | 960 | 4575 | 1317 | 1270 | 1546 | 1840 | |
AD-1521-2 | 1500*2100 | 63.5 | 4 | 960 | 3728 | 1330 | 1781 | 1946 | 1710 | |
AD-1836-2 | 1800*3600 | 76 | 7.5 | 960 | 5305 | 1500 | 2256 | 2459 | 3880 | |
AD-1530-2 | 1500*3000 | 76 | 7.5 | 960 | 4765 | 1397 | 1956 | 2159 | 2780 | |
AD-1536-2 | 1500*3600 | 76 | 7.5 | 960 | 5365 | 1368 | 2032 | 2019 | 3180 | |
3
|
AD-1021-3 | 1000*2100 | 63.5 | 5.5 | 960 | 4854 | 1422 | 1435 | 1549 | 2150 |
AD-1530-3 | 1500*3000 | 76 | 5.5 | 960 | 4765 | 1391 | 1956 | 2159 | 3200 | |
AD-1836-3 | 1800*3600 | 76 | 7.5 | 960 | 5200 | 1500 | 2400 | 2500 | 4170 | |
AD-2050-3 | 2000*5000 | 92 | 11 | 960 | 5400 | 2000 | 2750 | 2810 | 5500 |
Installation of Industrial Rotex Type Gyratory Screen Machine for Sodium Carbonate Calcined Soda:
1. Seat Installation:
Forward Type
Direct Discharge Type
2. Cable Suspension Installation:
Cable Suspension Type
Application of Industrial Rotex Type Gyratory Screen Machine for Sodium Carbonate Calcined Soda:
The Rotex type gyratory vibrating screen can be widely used for screening quartz sand, silica sand, frac sand, precoated sand, petroleum coke, activated carbon, urea, fertilizer, resin, glass bead, wood pellet, sodium carbonate, melamine, tea, sugar, salt, soybean etc.
