Product Details:
Payment & Shipping Terms:
|
| Purpose: | Dewatering, Medium Removal And Desliming Etc. | Movement: | Linear Vibrating Motion |
|---|---|---|---|
| Dip Angle: | Can Be Adjusted From -2 To 10 Degrees | Screen: | Polyurethane Screen Mesh, Woven Wire Mesh Etc. |
| Power Source: | Double Vibrating Motors, Vibrating Exciter | Application: | Ore Dressing, Power Generation, Coal Preparation, Sugar Making, Salt Making And Other Industrial Sectors |
| High Light: | inclined vibrating screen,dewatering vibrating screen |
||
Linear Rectangular Vibrating Screen Sand Screening Equipment
Introduction of High Frequency Vibrating Dewatering Screen Machine for Washed Sand:
High Frequency Vibrating Dewatering Screen Machine for Washed Sand is also called drainage screen, drainage sieve, dehydration vibrating screen, dewatering vibrating screen, vibrating dewatering screen, dehydration shaker, sculping screen, medium drainage screen, medium draining screen, sizing-medium drainage screen etc. This kind of screening machine can choose vibration motor or exciter as vibration source.
The dewatering screen is often used in coal preparation, ore dressing, power generation, sugar making, salt making and other industrial sectors, for medium and fine grained materials wet and dry grading, screening, dewatering, medium removal and desliming.
Characteristics of High Frequency Vibrating Dewatering Screen Machine for Washed Sand:
1. Good dewatering effect, safe and reliable.
2. High screening capacity and efficiency.
3. Low noise, easy maintenance.
4. Reasonable structure, strong and durable.
5. It has seat type and hanging type for choice.
6. The screen has a simple structure, easy maintenance. Screen adopts high strength metal woven mesh, durable service, or uses polyurethane screen mesh.
Working Principle of High Frequency Vibrating Dewatering Screen Machine for Washed Sand:
Dewatering screen adopt dual-electrode self-synchronization technology, universal eccentric block, adjustable amplitude vibrator. The machine is combined mainly by the screen box, exciter, support system and motor. The two mutually independent vibrators are respectively driven by the tape coupling to do synchronous reverse operation. The centrifugal force generated by two eccentric masses is superposed along the vibration direction and reversely counteracted, thereby forming a single vibration force along the vibration direction, making the screen box reciprocating linear motion.
The drainage screen, also known as high-frequency dewatering screen, changing the water surface tension of pulp through the exciting force, pulp water through the screen to become the undersize material, and fine material is blocked by the screen to form the filter layer by the vibration of the forward movement of discharge. Dewatering screen is mainly used for detailings dewatering in the mineral processing industry, coal slurry dehydration of coal preparation plant, washed quartz sand dewatering and ceramic slurry dehydration, and wet and dry classification, dehydration, removal and mud removal of medium and fine granular materials in industrial sectors such as electric power, sugar making and salt making.
Technical Parameters of High Frequency Vibrating Dewatering Screen Machine for Washed Sand:
| Model | Screen Surface Area (m2) |
Mesh Size (mm) |
Screen Mesh Structure | Feeding Size (mm) |
Capacity (t/h) |
Vibration Frequency (min-1) |
Double Vibration Amplitude (mm) |
Power (kw) |
Vibrating Direction Angle (°) |
Overall Size (mm) |
| 926 | 2.34 | 0.25-50 |
Stainless steel woven mesh
Perforated plate
Stainless steel seam welded mesh |
≤150 | 1.5-100 | 960 | 6-10 | 2*1.5 | 45 | 2740*1340*1520 |
| 1030 | 3 | 2-120 | 8-10 | 2*2.2 | 3140*1440*1680 | |||||
| 1230 | 3.6 | 3-180 | 8-10 | 2*2.2 | 3140*1640*1680 | |||||
| 1540 | 6 | 5-250 | 8-12 | 2*3.0 | 4140*1940*1790 |
Vibration Motor Type

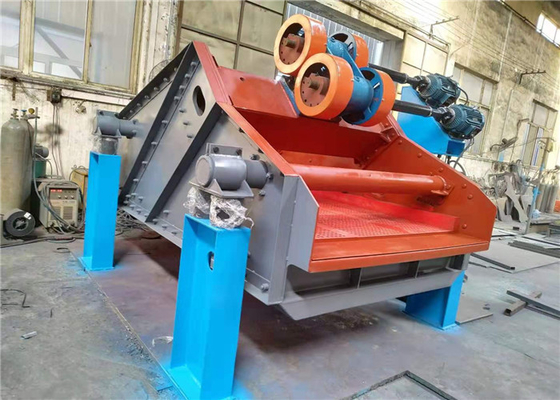

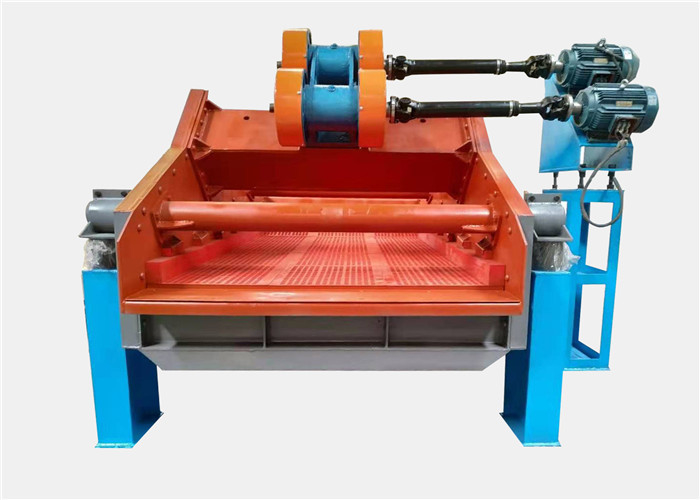

Vibration Exciter Type
Instructions for High Frequency Vibrating Dewatering Screen Machine for Washed Sand:
1. The dip angle of the screen surface can be adjusted from -2 to 10 degrees. Other angles can be adjusted by the user.
2. When the forced synchronization is adopted, the motor can be installed on the left or right. User must state when ordering.
3. The screen structure (weaving, punching, wedge-bar), mesh size, processing capacity, material name and feeding particle size should be indicated in the selection and ordering by the user.
4. When selecting and ordering, the user should determine the arrangement of the sieve and screen seam size. If they do not make a decision, we supply the machine according to the right-type screen seam 0.5mm arrangement. (The motor is installed on the left or right side of the material flow direction.)
