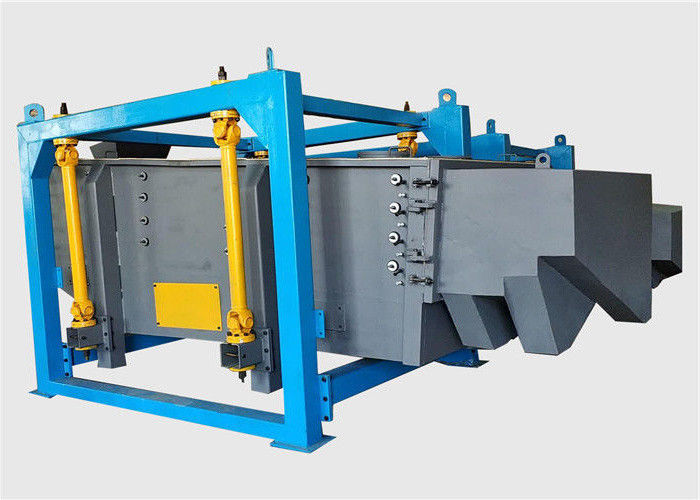

Gyratory Industrial Screening Machine For Coconut Shell Activated Carbon

Gyratory Industrial Screening Machine For Coconut Shell Activated Carbon

  • Gyratory Industrial Screening Machine For Coconut Shell Activated Carbon
  • Gyratory Industrial Screening Machine For Coconut Shell Activated Carbon
Gyratory Industrial Screening Machine For Coconut Shell Activated Carbon
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film for the machine body, and plywood wooden case (fumigation-free) for the spare parts such as screens etc.
Delivery Time: 20~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Features: Multi-layer Screening, High Yield, High Accuracy Warranty Period: One Year For The Machine (motor And Vulnerable Parts Are Excluded)
Movement: Gyratory Reciprocating Movement Amplitude: Large Horizontal Amplitude Improves The Screening Effect Of Near-size Particles
Layers Of Screen: Usually 1~6 Layers Of Screen (customizable) Mesh Cleaning Method: Bounce Balls
Applicable Materials: Fertilizer, Activated Carbon, Silica Sand, Petroleum Coke, Plastic Particles, Sugar, Salt Etc. Material: Carbon Steel, Contact Parts Stainless Steel Etc.
High Light:

Coconut Shell Industrial Screening Machine

,

Activated Carbon Industrial Screening Machine

,

Coconut Shell rotary vibrating screen

Gyratory Industrial Screening Machine For Coconut Shell Activated Carbon



Overview of Gyratory Industrial Screening Machine for Coconut Shell Activated Carbon​​​:

Gyratory Industrial Screening Machine for Coconut Shell Activated Carbon is a versatile, adaptable high-speed screener for all industries. The stroke, speed, and slope can be custom-engineered to your specifications; stroke and speed can also be optimized in the field for enhanced performance, no matter how difficult or variable the application.



Motion gyratory reciprocating motion: the material is completely covered with the screen, making full use of the screen
Layers of Screen 1~6 layers, even 10 layers under special circumstances
Duplex Screening can realize multi-layer double screening with the same mesh
Screen Type hook screen
Drive Device exciter + motor + belt
Motor Brand Siemens, ABB etc.
Amplitude large horizontal amplitude can effectively improve the screening effect of near-size particles
Mesh Cleaning Method balls
Application quartz sand, fertilizer, activated carbon, fracturing sand, petroleum proppant, petroleum coke, plastic particles, sugar, salt etc.



Working Principle of Gyratory Industrial Screening Machine for Coconut Shell Activated Carbon:

Gyratory Industrial Screening Machine For Coconut Shell Activated Carbon 0

  The rectangular gyratory screening machine is also called reciprocating screen, if see from the motion trail of screen box. The vibratory force produced by its driving device is the inertial force twining along the dead axle, the direction of which is change according to a certain regular. The essence of square swinging screen is the reciprocating inertial force formed by the rotation of eccentric wheel winding the dead axle. According to the structure characteristics and working principle of swinging screen, the screen surface is arranged with level or incline (angle of inclination is 0-5 degree). After turn on the swinging screen, the screen box take reciprocating movement under the inertial force, screen box drives screen surface to make periodic shaking, which makes the materials on the screen surface to make directional jumping movement with the screen box. During the period, the material less than the screen aperture falls to under layer, the material bigger than the screen aperture make jumping movement, discharged from the coarse outlet.



Characteristics of Gyratory Industrial Screening Machine for Coconut Shell Activated Carbon:

1. Large output screening: With its large number of revolutions per minutes, our gyrasifter equipment delivers an unparalleled level of throughput screening for dry materials, such as pharmaceutical products. This feature provides your operators and facility with the ability to optimize the quality and distribution of your goods, which can help you expand your reach and revenue.



2. Hook screens: Thanks to its convenient hook style screens, our AF model gyratory separator industrial equipment provides operators with a hassle-free method for modifying screens without imposing unnecessary downtime on your facility. This engineering feat also saves your company the cost and maintenance of maintaining multiple screen panels, which lets you maximize your uptime.



3. Reciprocating motion: with the gyratory sifter motion, the AF model gyratory screening machine provides exceptional screening quality. By separating materials of varying shapes, which is typical of raw dry goods, your company can maximize its production and product quality. This could lead to gains in revenue by building your consumer base and their confidence in your items.



4. Easy tension size support: with its innovative design, our gyratory sifter equipment offers compatibility with multiple sizes of easy-tension screening media. That feature lets the sieving machine support a range of dry application processes, which helps your company adapt to changes with ease and boost your overall production without sacrificing quality.



Gyratory Industrial Screening Machine For Coconut Shell Activated Carbon 1Gyratory Industrial Screening Machine For Coconut Shell Activated Carbon 2

                  Quick-open Door                                                       Vibration Exciter

Gyratory Industrial Screening Machine For Coconut Shell Activated Carbon 3Gyratory Industrial Screening Machine For Coconut Shell Activated Carbon 4

                          Hook Screen                                                           Ball Decks



Technical Parameters of Gyratory Industrial Screening Machine for Coconut Shell Activated Carbon:

Gyratory Industrial Screening Machine For Coconut Shell Activated Carbon 5

Model Screen Surface Specifications

Power

(kw)

Amplitude (mm) Operating Frequency (r/min) Leaning Angle of Screen (°)

L*W*H (mm)

(Reference)

AF-515 500*1500 2.2 20~60 180~300 4~8 2900*1150*1500
AF-520 500*2000 2900*1150*1900
AF-525 500*2500 3400*1150*1900
AF-1025 1000*2500 3 3400*1700*1950
AF-1030 1000*3000 3900*1700*1950
AF-1036 1000*3600 4500*1700*1950
AF-1530 1500*3000 5.5 3900*2200*1950
AF-1536 1500*3600 4500*2200*1950
AF-1830 1800*3000 7.5 3900*2500*1950
AF-1836 1800*3600 4500*2500*1950
AF-2030 2000*3000 7.5 3900*2700*1950
AF-2036 2000*3600 4500*2700*1950

Note: Our company reserves the right to modify the data above.



Applicable Materials for Gyratory Industrial Screening Machine for Coconut Shell Activated Carbon:

  The AF model gyratory vibrating separator sifter is widely used in metallurgical, abrasive, mining, chemical, quarrying, clay, glass, building materials, medicine, plastics and other industries of fine classification.

  This screening equipment can be used for the most demanding screening requirements of petroleum coke, activated carbon, fertilizer, frac sand, limestone, plastic particles, polyvinyl chloride powder, salt, sugar etc.



Besides,

Our factory also produce many other kinds of screening machines such as tumbler screening machine, Rotex gyratory screen, SWECO type gyratyory sifter, rotary vibrating screen, linear vibrating screen, rectangular separator, ultrasonic separator, low-profile flow-thru inline vibrating control sieve, centrifugal sifter, rotap test sieve shaker, mogensen sieve, probability screen, wet screening machine, dewatering screen, rotary trommel screen, vibrating wire cloth Screen machine, electromagnetic vibrating feeder, screw conveyor, bucket elevator, vibrating mill, crusher etc.

  If you need any one of them, please don't hesitate to contact us
