Place of Origin: | China |
Brand Name: | AAREAL |
Certification: | ISO9001:2015 |
Model Number: | AF |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic film for the machine body, and plywood wooden case (fumigation-free) for the spare parts such as screens etc. |
Delivery Time: | 20~35 work days after order confirmed |
Payment Terms: | T/T, L/C |
Supply Ability: | 5 sets per month |
Movement: | Gyratory Reciprocating Motion | Characteristics: | Multi-deck Screening, High Yield, High Accuracy |
---|---|---|---|
Layers Of Screen: | Usually 1~6 Layers Of Screen | Mesh Cleaning Method: | Mesh Cleaning Balls |
Amplitude: | Large Horizontal Amplitude Can Effectively Improve The Screening Effect Of Near-size Particles | Duplex Screening: | Can Realize Double Screening With The Same Mesh |
Applicable Materials: | Silica Sand, Fertilizer, Activated Carbon, Fracturing Sand, Petroleum Proppant, Petroleum Coke, Plastic Particles, Sugar, Salt Etc. | Warranty Period: | One Year For The Machine (motor And Vulnerable Parts Are Excluded) |
Highlight: | Mineral Gyratory Screen Separator,Mineral rotex vibrating screen,500×1500 Gyratory Screen Separator |

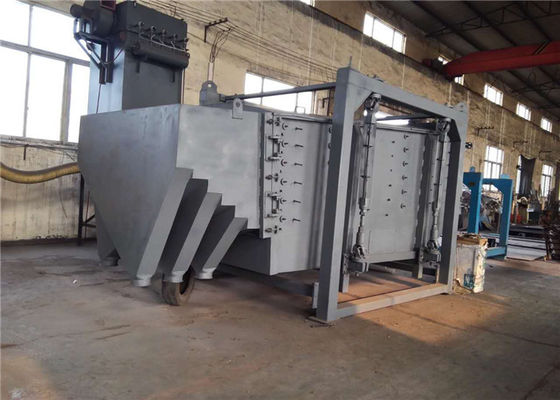

Large Output Gyratory Screen Separator Mineral Products Vibrating Sifter Machine
Overview of Multi-deck Large Output Mineral Products Gyratory Vibrating Sifter Machine:
Our Multi-deck Large Output Mineral Products Gyratory Vibrating Sifter Machine can maximize the productivity, provide maximum vibration control and enables maximum recovery of clean and acceptable product. This sieving machine can increase your plant's productivity by reducing the costs associated with routine maintenance and unscheduled repairs. That means fewer production outages and fewer instances of pulling employees away from other duties for unscheduled maintenance. It all adds up to less downtime, larger capacity and lower cost.
This gyratory screening machine can be equipped with one to six layers of screen, and even 10 layers under special circumstances, which can complete the sieving from 12 mesh to 325 mesh. It can be designed as duplex screening to make it more productive. The design is compact and energy efficient.
Working Principle of Multi-deck Large Output Mineral Products Gyratory Vibrating Sifter Machine:
Square gyratory sifter is also called reciprocating screen, if see from the motion trail of screen box. The vibratory force produced by its driving device is the inertial force twining along the dead axle, the direction of which is change according to a certain regular. The essence of square swinging screen is the reciprocating inertial force formed by the rotation of eccentric wheel winding the dead axle. According to the structure characteristics and working principle of swinging screen, the screen surface is arranged with level or incline (angle of inclination is 0-5 degree). After turn on the swinging screen, the screen box take reciprocating movement under the inertial force, screen box drives screen surface to make periodic shaking, which makes the materials on the screen surface to make directional jumping movement with the screen box. During the period, the material less than the screen aperture falls to under layer, the material bigger than the screen aperture make jumping movement, discharged from the coarse outlet.
Motion | gyratory reciprocating motion: the material is completely covered with the screen, making full use of the screen |
Layers of Screen | 1~6 layers, even 10 layers under special circumstances |
Duplex Screening | can realize multi-layer double screening with the same mesh |
Screen Type | hook screen |
Drive Device | exciter + motor + belt |
Motor Brand | Siemens, ABB etc. |
Amplitude | large horizontal amplitude can effectively improve the screening effect of near-size particles |
Mesh Cleaning Method | balls |
Application | quartz sand, fertilizer, activated carbon, fracturing sand, petroleum proppant, petroleum coke, plastic particles, sugar, salt etc. |
Characteristics of Multi-deck Large Output Mineral Products Gyratory Vibrating Sifter Machine:
Our team engineered the gyratory sifter machine with several distinctive features to deliver a solution that meets the needs of industries sifting dry materials, such as fertilizer and other bulk solids. These features include:
1. Reciprocating motion: with the gyratory sifter motion, the AF model gyratory screening machine provides exceptional screening quality. By separating materials of varying shapes, which is typical of raw dry goods, your company can maximize its production and product quality. This could lead to gains in revenue by building your consumer base and their confidence in your items.
2. Large output screening: With its large number of revolutions per minutes, our gyrasifter equipment delivers an unparalleled level of throughput screening for dry materials, such as pharmaceutical products. This feature provides your operators and facility with the ability to optimize the quality and distribution of your goods, which can help you expand your reach and revenue.
3. Hook screens: Thanks to its convenient hook style screens, our AF model gyratory separator industrial equipment provides operators with a hassle-free method for modifying screens without imposing unnecessary downtime on your facility. This engineering feat also saves your company the cost and maintenance of maintaining multiple screen panels, which lets you maximize your uptime.
4. Easy tension size support: with its innovative design, our gyratory sifter equipment offers compatibility with multiple sizes of easy-tension screening media. That feature lets the sieving machine support a range of dry application processes, which helps your company adapt to changes with ease and boost your overall production without sacrificing quality.
Quick-open Door Vibration Exciter
Hook Screen Ball Decks
Technical Parameters of Multi-deck Large Output Mineral Products Gyratory Vibrating Sifter Machine:
Model | Screen Surface Specifications |
Power (kw) |
Amplitude (mm) | Operating Frequency (r/min) | Leaning Angle of Screen (°) |
L*W*H (mm) (Reference) |
AF-515 | 500*1500 | 2.2 | 20~60 | 180~300 | 4~8 | 2900*1150*1500 |
AF-520 | 500*2000 | 2900*1150*1900 | ||||
AF-525 | 500*2500 | 3400*1150*1900 | ||||
AF-1025 | 1000*2500 | 3 | 3400*1700*1950 | |||
AF-1030 | 1000*3000 | 3900*1700*1950 | ||||
AF-1036 | 1000*3600 | 4500*1700*1950 | ||||
AF-1530 | 1500*3000 | 5.5 | 3900*2200*1950 | |||
AF-1536 | 1500*3600 | 4500*2200*1950 | ||||
AF-1830 | 1800*3000 | 7.5 | 3900*2500*1950 | |||
AF-1836 | 1800*3600 | 4500*2500*1950 | ||||
AF-2030 | 2000*3000 | 7.5 | 3900*2700*1950 | |||
AF-2036 | 2000*3600 | 4500*2700*1950 |
Note:
All specifications of this series of screening machine can be equipped with one to six layers of screen mesh. Under special circumstances, it can be equipped with ten layer screen mesh.
Applicable Materials for Multi-deck Large Output Mineral Products Gyratory Vibrating Sifter Machine:
The gyratory screen sifter can be widely used in metallurgical, abrasive, mining, chemical, quarrying, clay, glass, building materials, medicine, plastics and other industries of fine classification.
This kind of gyratory screening equipment can be used for the most demanding screening requirements of fertilizer, frac sand, limestone, petroleum coke, activated carbon, plastic particles, polyvinyl chloride powder, salt, sugar etc.
Besides,
Our company also make many other kinds screening machines such as Rotex gyratory screen, SWECO type gyratyory sifter, tumbler screening machine, rotary vibrating screen, linear vibrating screen, rectangular separator, ultrasonic separator, low-profile flow-thru inline vibrating control sieve, centrifugal sifter, rotap type test sieve shaker, mogensen sieve, probability screen, wet screening machine, dewatering screen, rotary trommel screen, vibrating wire cloth Screen machine, electromagnetic vibrating feeder, screw conveyor, bucket elevator, vibrating mill, crusher etc.
If you are interested in anyone of them, please don't hesitate to contact us
