|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Plastic film for the machine body, and fumigation-free plywood wooden case for the spare parts such as screens etc.|
|Delivery Time:||15~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Movement:||Gyratory Reciprocating Movement||Material:||Carbon Steel, Stainless Steel, Aluminum Etc.|
|Self-cleaning System:||Polyurethane Balls, Rubber Balls, Silicone Balls Etc.||Layers Of Screen:||1~4 Screen Decks (suggest 1~3 Layers)|
|Screen:||Automatically Tensioned Screens, Durable||Screen Size:||Screen Width*Length 1000*3000mm, 1500*3000mm, 1800*3600mm, 2000*5000mm Etc.|
|Vulnerable Parts:||Balls, Screens, Sealing Rubber Strip, Clips, Clamps Etc.||Application:||Salt, Sugar, Petroleum Coke, Ceramic Proppant, Quartz Sand, Coated Sand, Calcium Carbonate Etc.|
vibrating sieve screen,
vibrating sieve separator

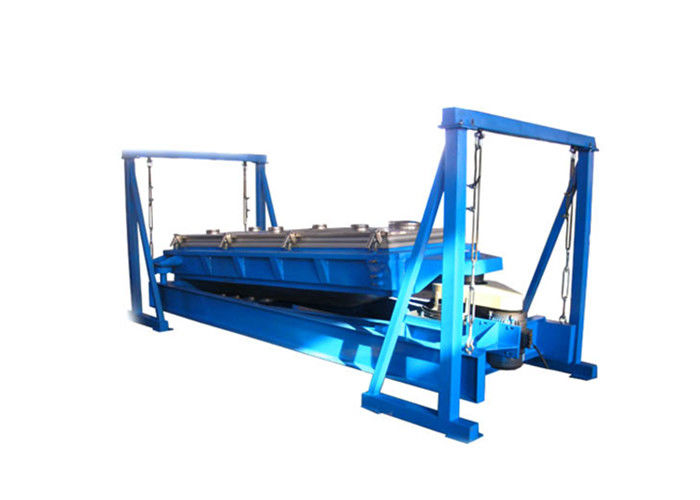

Gyratory Vibrating Screen Machine White Granulated Caster Sugar Tumbler Sieve
Overview of Large Output White Granulated Custer Sugar Gyratory Vibrating Screen Machine:
Large Output White Granulated Custer Sugar Gyratory Vibrating Screen Machine provide unusually high efficiency and capacity for Fine Materials Screening because they have a unique gyratory-reciprocating motion of the near-horizontal screen surface, combined with a positive screen mesh cleaning system.
|Moving Trajectory||gyratory reciprocating motion: circular motion at feed end, elliptical motion at center, and linear motion at discharge end|
|Drive Device||general motor + exciter|
|Layers of Screen||1~4 layers of screen available|
|Screen Size||500*1500mm, 1000*2100mm, 1000*3000mm, 1500*3000mm, 1500*3600mm, 1800*3600mm, 1800*4000mm, 2000*5000mm etc.|
|Motor Brand||Siemens, or according to customer requirements|
|Spare Parts||the special screen, drive exciter, compensating clamps and clips are made by ourselves|
|Discharge Port||usually at the bottom of the machine, it can also be made at the back of the machine|
|Material||carbon steel, contact parts stainless steel (optional)|
|Installation||floor seat installation, cable suspension installation|
|Mesh Cleaning Method||Use mesh cleaning balls to clean the screen mesh. Rubber ball, silicone ball, polyurethane ball etc.|
Advantages of Large Output White Granulated Custer Sugar Gyratory Vibrating Screen Machine:
1. Lower headroom permits operation in confined areas, reducing cost of building construction and maintenance.
2. Less conveying equipment is required for elevating material to the feeding port.
3. Automatic Screen Tensioning.
4. Easy Screen Removal.
Working Principle of Large Output White Granulated Custer Sugar Gyratory Vibrating Screen Machine:
The unique gyratory motion imparts a combination of actions to the material as it passes along the screen surface. It begins with a horizontal circular motion at the feed end, gradually diminishing along the length of the machine to an elliptical path, and finally to an approximate straight-line motion at the discharge end. There is no vertical component to this motion thus keeping the material in constant contact with the screen surface.
1. Distributes: circular motion at feed end
The gyratory motion at the feed end of the machine immediately spreads the material across the full width of the screen surface to maximise screen utilisation – even though the feed is from a single point. At the same time, this motion stratifies the material, causing the fines to sink down against the screen surface. The particles that are appreciably smaller than the openings quickly pass through at this part of the screen.
2. Stratifies: changing to elliptical motion at center
As the circular motion diminishes into an elliptical path, the gentle near-horizontal motion causes the fine particles closer in size to the screen mesh – the near-size particles – to fall through the mesh openings.
3. Separates: straight-line motion at discharge end
The nearly linear reciprocating motion at the discharge end of the AD model gyratory screen removes those particles closest in size to the mesh openings while gently conveying the oversize material off the screen. In addition, the unique gyratory sifter ability to advance or retard material flow at the discharge end allows further fine-tuning to achieve the most efficient and accurate motion for the application.
Technical Parameters of Large Output White Granulated Custer Sugar Gyratory Vibrating Screen Machine:
|Model||Screen Surface Specification (W*L) (mm)||Screen Box Stroke (mm)||Motor||
|Rotation Rate (rpm)|
Installation of Large Output White Granulated Custer Sugar Gyratory Vibrating Screen Machine:
The gyratory screens range consists of floor mounted and suspension for optional.
1. Floor Mounting:
The low transmitted forces of the Rotex Screeners counterbalanced drive allow the unit to be floor mounted in properly designed structures where some other types of equipment cannot. Mounting may be directly on the floor or on an elevated structural steel framework, the elevated position permitting drums or other equipment to be located under the machine. iBulk engineers can recommend a stand for any specific application.
2. Cable Suspension:
Gyratory screening machine can be cable-suspended from the four corners of the machine, thereby isolating out-of-balance screening forces from the surrounding structure. Accurate counterbalancing of the gyratory sifter makes this installation option possible. If the existing overhead structure is not suitable for cable suspension, or is structurally unable to support the cable-suspended unit, the gyratory separator can be suspended from a floor-mounted cable support cradle. As with conventional cable suspension, this option effectively isolates the horizontal out-of-balance screening forces, helping to minimize costs for new structures as well as permitting the use of older structures which might not otherwise support cable-suspended equipment.
Cable Suspension Type Floor Mounting Type
Application of Large Output White Granulated Custer Sugar Gyratory Vibrating Screen Machine:
As one of our featured products, we have supplied it to many factories and companies for many years and have enjoyed a good reputation because of its superior quality and long service life. The gyratory screening machines have been successfully applied to screening granular urea in fertilizer plant. But it is also used to screen other thounds of different materials and is suitable for many industries and application as below: chemical, carbon product, wood chips, grain cleaning, mineral, fertilizer, steel shot, clay, animal feed etc.
