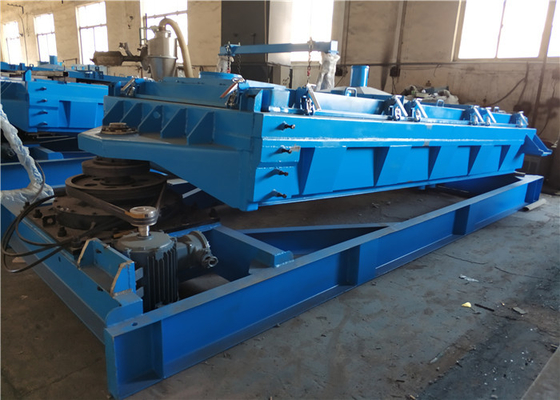

Rotex Vibrating Screen Gyratory Screening Machine For Ceramic Proppant

Rotex Vibrating Screen Gyratory Screening Machine For Ceramic Proppant

  • Rotex Vibrating Screen Gyratory Screening Machine For Ceramic Proppant
  • Rotex Vibrating Screen Gyratory Screening Machine For Ceramic Proppant
Rotex Vibrating Screen Gyratory Screening Machine For Ceramic Proppant
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film for the machine body, and plywood wooden case (fumigation-free) for the spare parts such as screens etc.
Delivery Time: 15~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Movement: Gyratory Reciprocating Movement Screen: Automatically Tensioned Screens
Layers Of Screen: 1~4 Layers Of Screen Available (1~3 Suggested) Screen Size: W*L 1000*3000mm, 1500*3000mm, 1800*3600mm, 2000*5000mm Etc.
Vulnerable Parts: Screens, Balls, Sealing Rubber Strip Etc. Self-cleaning System: Rubber Balls, Silicone Balls Etc.
Application: Ceramic Proppant, Quartz Sand, Coated Sand, Calcium Carbonate, Petroleum Coke Etc. Material: Stainless Steel, Aluminum, Carbon Steel Etc.
High Light:

vibrating sieve separator

,

vibratory screen separator

Rotex Vibrating Screen Gyratory Screening Machine For Ceramic Proppant



Overview of Rotex Industrial Gyratory Screen Machines for Ceramic Proppant:

Rotex Industrial Gyratory Screen Machines for Ceramic Proppant provide a fast, efficient and accurate separation of materials in major process industries.

   This gyratory screener is also known as the Rotex screen, gyratory screen, gyratory separator, gyratory sifter, reciprocating screen etc.

   Through the unique gyratory motion of the horizontal screen surface, combined with a positive screen mesh cleaning system, the gyratory screeners provide high efficiency and capacity.



Moving Trajectory gyratory reciprocating motion: circular motion at feed end, elliptical motion at center, and linear motion at discharge end
Drive Device general motor + exciter
Layers of Screen 1~4 layers of screen available
Screen Size 500*1500mm, 1000*2100mm, 1000*3000mm, 1500*3000mm, 1500*3600mm, 1800*3600mm, 1800*4000mm, 2000*5000mm etc.
Motor Brand Siemens, or according to customer requirements
Spare Parts the special screen, drive exciter, compensating clamps and clips are made by ourselves
Discharge Port usually at the bottom of the machine, it can also be made at the back of the machine
Material carbon steel, contact parts stainless steel (optional)
Installation floor seat installation, cable suspension installation
Mesh Cleaning Method Use mesh cleaning balls to clean the screen mesh. Rubber ball, silicone ball, polyurethane ball etc.



Working Principle of Rotex Industrial Gyratory Screen Machines for Ceramic Proppant​:

  Gyratory motion rapidly distributes, stratifies and separates.
  The unique gyratory motion imparts a combination of actions to the material as it passes along the screen surface. It begins with a horizontal circular motion at the feed end, gradually diminishing along the length of the machine to an elliptical path, and finally to an approximate straight-line motion at the discharge end. There is no vertical component to this motion. Thus keeping the material in constant contact with the screen surface.



1. Circular motion at feed end
The gyratory motion at the feed end of the machine immediately spreads the material across the full width of the screen surface to maximize screen utilization even though the feed is from a single point. At the same time, this motion stratifies the material, causing the fines to sink down against the screen surface. The particles that are appreciably smaller than the openings quickly pass through at this part of the screen.



2. Changing to elliptical motion at center
As the circular motion diminishes into an elliptical path, the gentle near-horizontal motion causes the fine particles closer in size to the screen mesh the near-size particles to fall through the mesh openings.



3. Straight-line motion at discharge end
The nearly linear reciprocating motion at the discharge end of the Gyratory Screener removes those particles closest in size to the mesh openings while gently conveying the oversize material off the screen.

Gyratory Screen Machine for Silica Sand

Technical Parameters of Rotex Industrial Gyratory Screen Machines for Ceramic Proppant​:

Gyratory Screen Machine for Silica Sand

Deck

Model Screen Surface Specification (W*L) (mm) Screen Box Stroke (mm) Motor

A

(mm)

B

(mm)

C

(mm)

D

(mm)

Weight

(kg)

Power

(kw)

Rotation Rate (rpm)
1 AD-1014-1 1000*1400 63.5 1.5 960 2731 962 1168 1200 715
AD-1021-1 1000*2100 63.5 1.5 960 3285 962 1156 1200 980
AD-1030-1 1000*3000 63.5 1.5 960 4484 1035 1194 1251 1200
AD-1521-1 1500*2100 63.5 1.5 960 3460 1003 1708 1759 1380
AD-1530-1 1500*3000 76 2.2 960 4232 1362 1778 1892 1340
AD-1536-1 1500*3600 76 5.5 960 5098 1352 1956 2048 2410
2 AD-1236-2 1200*3600 76 5.5 960 5263 1327 2464 2556 2020
AD-1021-2 1000*2100 63.5 1.5 960 3743 1121 1308 1378 1400
AD-1030-2 1000*3000 76 4 960 4575 1317 1270 1546 1840
AD-1521-2 1500*2100 63.5 4 960 3728 1330 1781 1946 1710
AD-1836-2 1800*3600 76 7.5 960 5305 1500 2256 2459 3880
AD-1530-2 1500*3000 76 7.5 960 4765 1397 1956 2159 2780
AD-1536-2 1500*3600 76 7.5 960 5365 1368 2032 2019 3180



3



AD-1021-3 1000*2100 63.5 5.5 960 4854 1422 1435 1549 2150
AD-1530-3 1500*3000 76 5.5 960 4765 1391 1956 2159 3200
AD-1836-3 1800*3600 76 7.5 960 5200 1500 2400 2500 4170
AD-2050-3 2000*5000 92 11 960 5400 2000 2750 2810 5500



Advantages of Rotex Industrial Gyratory Screen Machines for Ceramic Proppant​:

1. Standard Base Frame for each model- Slot/tab/laser cut components for increased rigidity
2. Bottom Pan- Modular sections with standard offsets to suit layout requirements
3. Dynamic Absorber Drive- For optimum counterbalance and reduced noise, with totally enclosed, profiled guard
4. Aluminum Alloy Cover- Durable/replaceable steel clamp brackets and compensating clamp assemblies
5. Draglink Assembly- Low profile for increased safety



Rotex Vibrating Screen Gyratory Screening Machine For Ceramic Proppant 2



Installation of Rotex Industrial Gyratory Screen Machines for Ceramic Proppant​:

1. Cable Suspension Installation:

Rotex Vibrating Screen Gyratory Screening Machine For Ceramic Proppant 3

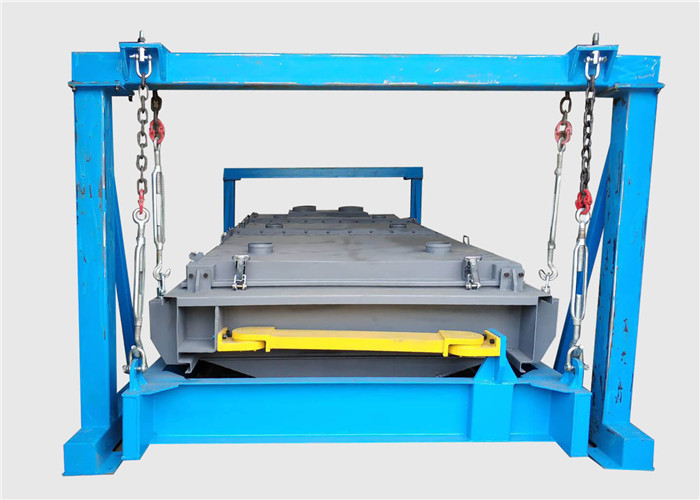

                                                 Cable Suspension Type



2. Seat Installation:

Rotex Vibrating Screen Gyratory Screening Machine For Ceramic Proppant 4

                                                              Forward Type



Rotex Vibrating Screen Gyratory Screening Machine For Ceramic Proppant 5

                                                          Direct Discharge Type



Application of Rotex Industrial Gyratory Screen Machines for Ceramic Proppant​:

Chemicals
Detergent
Fertilizer

Abrasives
Animal feed
Bulk food
Grain cleaning
Metallic powders
Minerals
Plastic and rubber
Salt
Sand
Sugar
Wood
