|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Plastic film for the machine body, and plywood wooden case (fumigation-free) for the spare parts such as screens etc.|
|Delivery Time:||15~35 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||5 sets per month|
|Moving Trajectory:||Gyratory Reciprocating Motion, Circular-elliptical-linear Motion||Drive Device:||General Motor + Exciter|
|Discharge Port:||At The Bottom Of The Machine||Mesh Cleaning Method:||Silicone Balls|
|Voltage:||380V, 3-Phase, 50HZ||Material:||Only Contact Parts Are Made Of Stainless Steel|
|Installation Method:||Cable Suspension Installation||Important Parts:||Special Screen, Drive Vibration Exciter, Compensating Clamps And Clips Are Made By Ourselves|
Custer Sugar Gyratory Screen Separator,
SUS Gyratory Screen Separator,
Custer Sugar horizontal vibrating screen

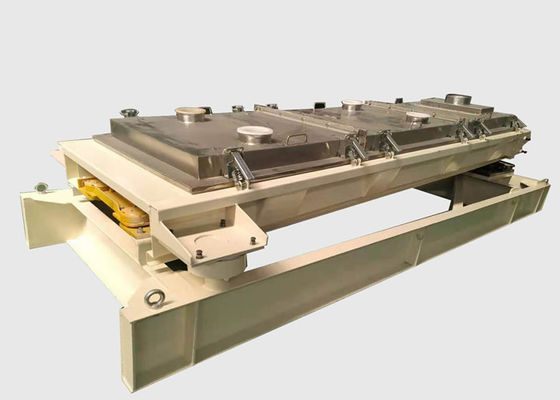

Stainless Steel Gyratory Screen Separator Machine For Granulated Custer Sugar
Overview of Rotex Type Gyratory Screen Sifters for Granulated Custer Sugar:
What is the Gyratory Screen? The Rotex type gyratory screen sifters for granulated custer sugar is also called gyratory screen, gyratory screener, gyratory separator, gyratory sifter, gyratory screening machine, Rotex screen, Rotex screening machine, Rotex separator, planar rotary screen, plane rotary screen, rotary flat sieve, flat screen, square precision screening machine, reciprocating screen etc. The gyratory screen is driven by an ordinary motor, and this gyratory screening machine drives the eccentric wheel to do gyratory reciprocating motion. The main function of AD model gyratory screen is to provide accurate separation of materials without product deterioration, thereby resulting greater product yields at higher production rates.
To pursue sieving accuracy simply will sacrifice the production, and pursuing big production will drop the accuracy. Square precision gyratory screen is high-precision and high-performance large production efficient device which specially designed for the above problems. It is widely used for the industries such as chemical, metallurgy, non-ferrous metal, ferrous metal, food and abrasive material etc.
This machine consists of top cover, top screen fame, spacer, bottom screen fame, the base space and the screen box. The unique gyratory motion of the near horizontal screen surface and the available screen mesh cleaning system secure the gyratory vibrating screen quality as a high capacity product that efficiently developed for materials screening purposes.
|Moving Trajectory||gyratory reciprocating motion: circular motion at feed end, elliptical motion at center, and linear motion at discharge end|
|Drive Device||general motor + exciter|
|Layers of Screen||1~4 layers of screen available|
|Screen Size||500*1500mm, 1000*2100mm, 1000*3000mm, 1500*3000mm, 1500*3600mm, 1800*3600mm, 1800*4000mm, 2000*5000mm etc.|
|Motor Brand||Siemens, or according to customer requirements|
|Spare Parts||the special screen, drive exciter, compensating clamps and clips are made by ourselves|
|Discharge Port||usually at the bottom of the machine, it can also be made at the back of the machine|
|Material||carbon steel, contact parts stainless steel, total stainless steel (optional)|
|Installation||floor seat installation, cable suspension installation|
|Mesh Cleaning Method||use mesh cleaning balls to clean the screen mesh. Rubber ball, silicone ball, polyurethane ball etc.|
Advantages of Rotex Type Gyratory Screen Sifters for Granulated Custer Sugar:
1. unique gyratory reciprocating motion
2. automatic screen surface tension device
3. ball cleaning system
4. double-balanced motor system
5. convenient and quick compensating clamps for head cover
Performance and Features of Rotex Type Gyratory Screen Sifters for Granulated Custer Sugar:
1. All components are easily accessible and removable for ease of disassembly and cleaning.
2. No vertical vibration, longer life span of mesh (6~12 months).
3. Every layer is installed an anti-blocking and cleaning facility and able to clean mesh while sieving.
4. Exterior is designed for easy cleaning. Exterior permanent joints are either welded continuously, or strip welded and filled with epoxy.
5. Lower headroom permits operation in confined areas, reducing cost of building and maintenance.
6. Less conveying equipment is required for elevating material to the feed point.
7. Greater product yields at higher production rates.
8. Low energy consumption.
9. High screening efficiency.
10. Create low noise pollution.
Working Principle of Rotex Type Gyratory Screen Sifters for Granulated Custer Sugar:
The unique gyratory motion imparts a combination of actions to the material as it passes along the screen surface. It begins with a horizontal circular motion at the feed end, gradually diminishing along the length of the machine to an elliptical path, and finally to an approximate straight-line motion at the discharge end. There is no vertical component to this motion – thus keeping the material in constant contact with the screen surface.
Technical Parameters of Rotex Type Gyratory Screen Sifters for Granulated Custer Sugar:
|Model||Screen Surface Specification (W*L) (mm)||Screen Box Stroke (mm)||Motor||
|Rotation Rate (rpm)|
Installation of Rotex Type Gyratory Screen Sifters for Granulated Custer Sugar:
1. Seat Installation:
Direct Discharge Type
2. Cable Suspension Installation:
Cable Suspension Type
Application of Rotex Type Gyratory Screen Sifters for Granulated Custer Sugar:
It is often used for screening petroleum coke, activated carbon, quartz sand, silica sand, frac sand, precoated sand, urea, fertilizer, resin, glass bead, wood pellet, sodium carbonate, melamine, tea, sugar, salt, soybean etc.
Abrasive: glass beads, slag, alumina, sand and other abrasive materials
Animal feed: feed powder and chips, meat paste and small food
Carbon products: coking coal, graphite, charcoal etc.
Chemical products: hundreds of different compounds
Clay: product classification
Fertilizer: raw material sieving and finished product fine screening.
Including ammonium nitrate, phosphate, potassium hydroxide, urea and other compounds
Food: sugar, flour, milk powder, coffee, cereals, rice, nuts, condiments, cocoa powder, glucose, starch etc.
Grain cleaning: corn, wheat, soybean and other cereals peeling and cleaning
Ore: ore, rubble, limestone, soda ash and salt
Paper: paper pulp, coating
Fiberboard: wood chips, flaking, bits of wood, to make high quality fiberboard
Drug: many large drug manufacturers use our screening machines, which meet the health standard design and GMP, to achieve precise and effectiveseparation and cleaning
Plastic: plastic particles, plastic powder
Powder metal: aluminum, copper, iron, nickel, steel, zinc and many other metal powders
Recycling of resources: used in the recycling of various materials, such as PET recycling etc.
Steel-making: classification of steel shot and metal filing
Please let me know the following questions in order to recommend you the suitable model:
1. What kind of raw material you want to process? Does this material have special physical or chemical properties? Such as wet, high temperature, corrosive etc.
2. How many layers of screen do you require for the machine?
3. The mesh size of each layer.
4. The voltage and hertz.
5. What kind of material do you prefer for the machine? Carbon steel, or SS304 /316 stainless steel?
Site Video of Rotex Type Gyratory Screen Sifters for Granulated Custer Sugar:
