| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts |
| Delivery Time: | 30~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 5 sets per month |
| Features: | Overcome The Screen Plugging Problem Caused By Circular Vibrating Screen And Linear Screen In The Process Of Screening Wet Materials | Other Names: | Rotary Screen, Trommel Screen, Drum Screen, Revolving Screen, Cylinder Round Sifter Etc. |
|---|---|---|---|
| Type: | With Shaft, Without Shaft | Motion: | Rotary Centrifugal Motion |
| Angle Of Inclination: | 5°~7° | Material: | Carbon Steel, Stainless Steel 304, 316L |
| Advantages: | Have Strong Adaptability To Materials. Material That Is Sticky, With High Humidity, Dirty And Miscellaneous Can Be Screened | Application: | Used For Grading Of Refractory Materials, Coal, Chemical Fertilizer, Sand Field Stone, And For Screening Of Coal, Coke, Lime, Gravel Mine And Other Clammy Materials |
| High Light: | air classifier machine,rotary sifter machine |
||

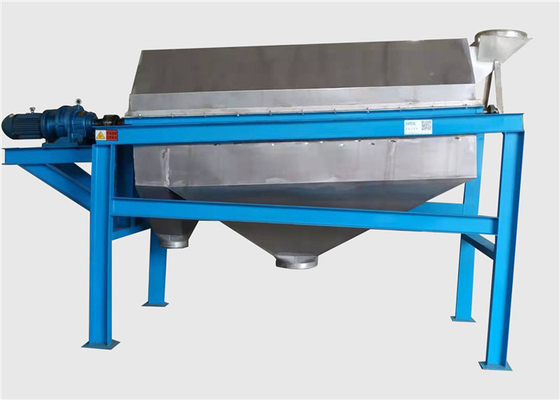

Introduction of Rotary Trommel Screener for White Granulated Sugar:
The Rotary Trommel Screener for White Granulated Sugar, also known as the trommel screen, rotary screen, trommel vibrating screen, trommel vibrating sieve, drum screen, drum sieve, drum screening machine, revolving screen, cylinder round sifter, cylinder rotary screen, revolving cylindrical sieve, cylinder revolving screen, roller screen, roller sieve etc., is a mechanical screening machine used to separate materials, mainly used in the mineral and solid-waste processing industries. This sieving machine consists of a perforated cylindrical drum that is normally elevated at an angle at the feed end. Physical size separation is achieved as the feed material spirals down the rotating drum, where the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
| Other Names | rotary screen, trommel screen, drum screen, revolving screen, cylinder round sifter etc. |
| Motion | rotary centrifugal motion |
| Power Source | general motor and reducer |
| Type | with shaft, without shaft |
| Angle of Inclination | 5°~7° |
| Material | carbon steel, stainless steel 304, 316L |
| Advantages | overcome the screen plugging problem caused by circular vibrating screen and linear screen in the process of screening wet materials |
| Features | have strong adaptability to materials. Material that is sticky, with high humidity, dirty and miscellaneous can be screened |
Working Principle of Rotary Trommel Screener for White Granulated Sugar:
How does the rotary trommel screen machine work? Material feeds into the drum, is lifted up by the rotation and aerated as it falls back down. This action is repeated with each revolution along the length of the drum. The finer material passes through the screen openings while the larger material tumbles towards its eventual exit at the rear of the drum.
Material Running State in the Rotary Screen
Features of Rotary Trommel Screener for White Granulated Sugar:
1. long bearing lifetime
2. high efficiency and low energy sumption
3. high credits and good quality
4. not easy to be blocked.
Technical Parameters of Rotary Trommel Screener for White Granulated Sugar:
1. driving device 2. coarse material discharge opening 3. seal cover
4. drum body 5. undersize material discharge opening 6. retaining plate
7. feed inlet 8. bracket
| Model |
Capacity (t/h) |
Screen Drum Diameter (mm) |
Length (m) |
Motor Power (KW) |
| GTS600 | 5-10 | ￠600 | 1000 | 1.5 |
| GTS800 | 8-15 | ￠800 | 1200 | 2.2 |
| GTS1000 | 15-30 | ￠1000 | 1500 | 3 |
| GTS1200 | 20-50 | ￠1200 | 1800 | 5.5 |
| GTS1500 | 40-80 | ￠1500 | 2000 | 7.5 |
| GTS1800 | 80-150 | ￠1800 | 2000 | 11 |
| GTS2000 | 130-200 | ￠2000 | 2500 | 11 |
Application of Rotary Trommel Screener for White Granulated Sugar:
Trommel screens can be used in a variety of applications such as classification of solid waste and recovery of valuable minerals from raw materials. The rotary screen is often used for the classification of refractory materials, coal, sand , sandstone block, limestone,metallic or non-metallic minerals etc.
