    Product Details:

    Place of Origin: China
    Brand Name: AAREAL
    Certification: ISO9001:2015

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts
    Delivery Time: 30~35 work days after order confirmed
    Payment Terms: T/T, L/C
    Supply Ability: 5 sets per month
    Contact Now
    Detailed Product Description
    Moving Trajectory: Rotary Centrifugal Motion Other Names: Rotary Screen, Rotary Sifter, Trommel Screen, Drum Screen, Revolving Screen, Cylinder Round Sifter Etc.
    Segment: 1~4 Segment Mesh Size: 2~200 Mesh
    Mesh De-blinding: Self-cleaning, No Need To Use Balls Material: Carbon Steel, Stainless Steel 304, 316L Etc.
    Angle Of Inclination: 5°~7° After-sales Service: Online And Video Technical Support, Overseas Service
    High Light:

    rotary sifter machine

    ,

    rotary trommel screen

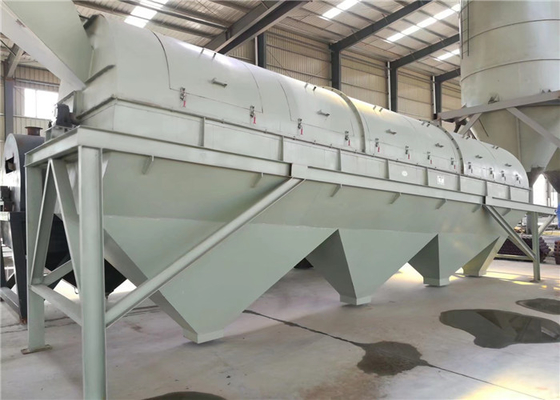

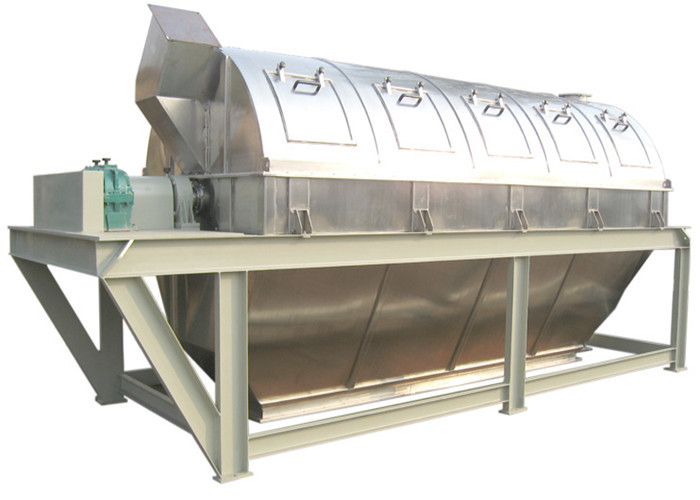

    Chemical Industries Rotary Sifter Screens Rotary Trommel Drum Screens



    Introduction of High Output Rotary Trommel Drum Screens Used In Chemical Industries:

    High Output Rotary Trommel Drum Screens Used In Chemical Industries is well known for its large processing capacity of compound fertilizer. And it is also a good choice for the classification of refractory materials, coal, sand, sandstone block, limestone, metallic or non-metallic minerals etc. It can be also called trommel screen, rotary screen, cylinder round sifter etc.



    Technical Parameters of High Output Rotary Trommel Drum Screens Used In Chemical Industries:

    Model

    Capacity

    (t/h)

    Screen Drum Diameter (mm)

    Length

    (m)

    Motor Power (KW)
    GTS600 5-10 600 1000 1.5
    GTS800 8-15 800 1200 2.2
    GTS1000 15-30 1000 1500 3
    GTS1200 20-50 1200 1800 5.5
    GTS1500 40-80 1500 2000 7.5
    GTS1800 80-150 1800 2000 11
    GTS2000 130-200 2000 2500 11



    Some Important Information About High Output Rotary Trommel Drum Screens Used In Chemical Industries:

    Other Names rotary screen, rotary sifter, trommel screen, drum screen, revolving screen, cylinder round sifter etc.
    Movement rotary centrifugal movement
    Power Source general motor and reducer
    Type with shaft, shaftless
    Angle of Inclination 5°~7°
    Material carbon steel, stainless steel 304, 316L
    Advantages overcome the screen mesh plugging problem caused by circular vibrating screen and linear screen in the process of screening wet materials
    Features have strong adaptability to materials. Material that is sticky, with high humidity, dirty and miscellaneous can be screened
    Application sand, gold, quicklime, refractory materials, coal, wood chips etc.



    Advantages of High Output Rotary Trommel Drum Screens Used In Chemical Industries​:

    1. Wide adaptability of materials.
    2. High screening efficiency equipment can be equipped with comb type cleaning mechanism.
    3. The screen feeding method is simple and diverse.
    4. Its own energy consumption is small, long service life, small maintenance.
    5. Equipment noise is low, working environment is good.
    6. The screen component is large, easy to enlarge.



    Working Principle of High Output Rotary Trommel Drum Screens Used In Chemical Industries​:

      The main structure of trommel screen is sieving cylinder, which is composed of several circular shape of the screen. The whole and ground plane is in heeling condition. External sealed the isolation cover seal is to prevent the pollution of the environment. The speed reducing system enables the screening cylinder rotates at a certain speed. Thus the material is separated by sieving cylinder from top to bottom. Afterwards fine material is discharged from the lower front part of sieving cylinder. While coarse material discharged from the tail end of the screening cylinder.

    Chemical Industries Rotary Sifter Screens Rotary Trommel Drum Screens 0

                                  Material Running State in the Rotary Screen



    Structure of High Output Rotary Trommel Drum Screens Used In Chemical Industries:

    Chemical Industries Rotary Sifter Screens Rotary Trommel Drum Screens 1



    1. driving device    2. coarse material discharge opening    3. seal cover

    4. drum body    5. undersize material discharge opening    6. retaining plate

    7. feed inlet    8. bracket



    Application of High Output Rotary Trommel Drum Screens Used In Chemical Industries:

    1. Food industry: sugar powder, monosodium, starch, salt, milk powder, egg powder, rice powder, bread crumbs, soy milk, sauce, juice, food additive, etc .
    2. Chemical industry: fertilizer, detergent powder , talcum powder, talcum powder, dyestuff, rubber, resin, pigment, industrial medicine, cosmetic, coatings, Chinese medicine powder .
    3. Metal , metallurgy industry: copper powder, nickel powder, aluminum powder, ceruse, ore alloy powder, welding powder, battery material, abrasive powder, fire proof material, alumina .
    4. Other industry: paper-making industry , ceramic industry, mining industry, pharmaceuticals industry etc.



    Chemical Industries Rotary Sifter Screens Rotary Trommel Drum Screens 2Chemical Industries Rotary Sifter Screens Rotary Trommel Drum Screens 3
