Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AQS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film, or fumigation-free plywood wooden case for split parts
Delivery Time: 15~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 5 sets per month
Contact Now
Detailed Product Description
Features: Low Noise, Low Power Consumption, Continuous Operation, Low Maintenance Rate Advantage: The Output Is About 5-10 Times Or More Than Vibrating Sieve
Screening Fineness: 80~500 Mesh Fine Powder Materials Carrier: With The Air As Carrier
Environment Protecting: The Sieving System Is Carried Out In A Negative Pressure Half-cycle State To Change The Dust Environment Screen: The Screen Is Installed Vertically Without Load, Long Service Life, And Suitable For A Wide Range Of Fineness
High Light:

rotary sifter machine

,

rotary trommel screen

Activated Carbon Powder Air Screen Machine Vertical Type Vibrating Sieve Screen



Application of Vertical Type Air Classifier Sieving Machine:

For the material of light-weight and easy-adhesion, the vertical air screen machine for activated carbon has an unexpected effect .It can make your factory clean as same as office. It can sieve 120-180 mesh light calcium carbonate , 20-150 mesh rubber chemicals, 300 mesh haw powder , 320-500 mesh zinc powder , 500 mesh black iron oxide , red iron oxide , 120-160 mesh Chinese medicine powder , 100 mesh gypsum powder and so on.
  The vertical air screen machine for activated carbon is widely used to screen black lead powder, resin powder, pigment, cosmetic, fire proof plastic powder, china clay, aluminum powder, glass powder, endure fire materials, starch, milk powder, metallurgy, electricity materials, copper powder, carbon black, active carbon etc.



Work Principle of Vertical Type Air Classifier Sieving Machine:
The vertical airflow sieving machine abandons gravity working principle, adopts the working principle of kinetic energy to do works, with the air as carrier. Mixing the materials and air through the negative pressure airflow, put them into the vane of the sieve motor, impose the leaf , then spray out of the screen to the bucket-type sieve mesh , finally collect them through the volute. The oversize materials couldn’t pass the screen, discharge them from the outlet automatically, reach the purpose of fast sieving.



Application of Vertical Type Air Classifier Sieving Machine​:

  Suitable for screening graphite powder, resin powder, traditional Chinese medicine powder, coating, fly ash, talcum powder, industrial medicine, cosmetics, fire extinguishing agent, plastic powder, clay, abrasive, aluminum powder, glass powder, refractory material, starch, milk powder, metallurgical powder, electromagnetic material, copper powder, carbon black, activated carbon, light calcium carbonate, iron ore etc.



Characteristics of Vertical Type Air Classifier Sieving Machine​:
1. High efficiency sieving : more than 95%

2. The output is about 5-10 times or more than vibrating sieve
3. Wide scope of thinnest: powder materials with the size of 80-600 mesh can filter with high efficiency
4. Precision of thinnest, no super and mixture grade
5. Install uprightness, long duration
6. Sieving procedure is processed under pressure, no powder pollution
7. Be matched with all kinds of mill and mesh work
8. Low noise, low consuming, continuous working, decrease maintain



Technical Parameters of Vertical Type Air Classifier Sieving Machine for Activated Carbon Powder​:

Model AQS-600 AQS1000 AQS1600 AQS2000
Air Volume (m³/h) 240~1100 300~2500 460~4900 650-6000
Screen Mesh 80~600 mesh
Feeding Size below 40 mesh
Power 3 5.5 11 15

Spindle Speed

(rpm/min)

450-1450
Outer Diameter (mm) 600 1000 1600 2000
Height (mm) 1150 1730 2300 2500

Activated Carbon Powder Air Screen Machine Vertical Type Vibrating Sieve Screen 0

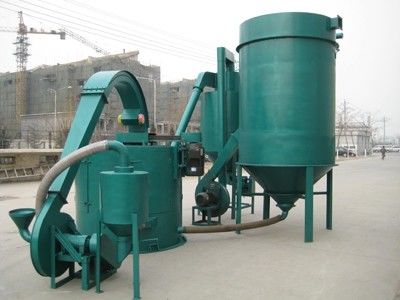

1. airflow sieving machine    2. cyclone collector    3. pulse dust collector

4. induced draft fan    5. tube



Activated Carbon Powder Air Screen Machine Vertical Type Vibrating Sieve Screen 1
