1800*4500mm 3 Decks Stainless Steel Linear Vibrating Screen for Herbs

1800*4500mm 3 Decks Stainless Steel Linear Vibrating Screen for Herbs

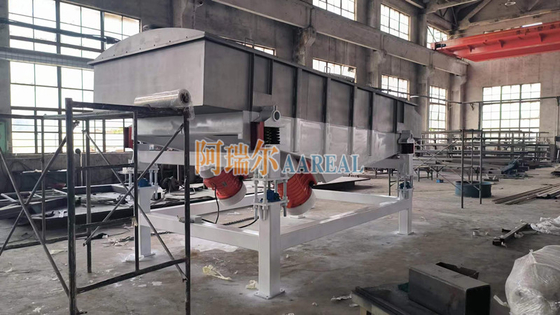

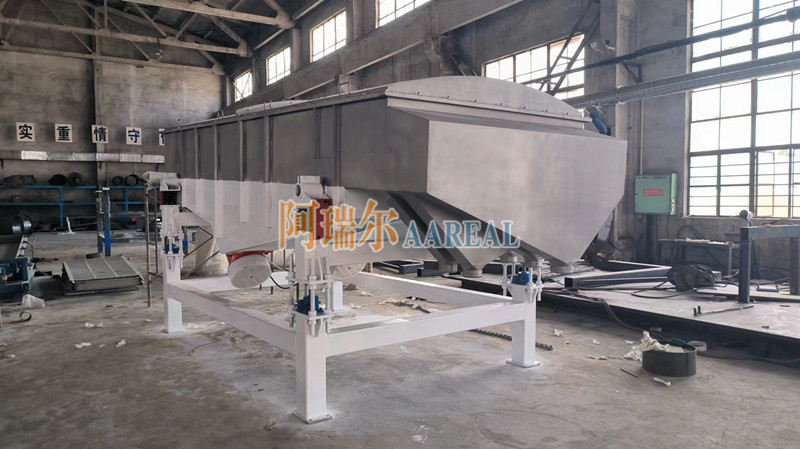

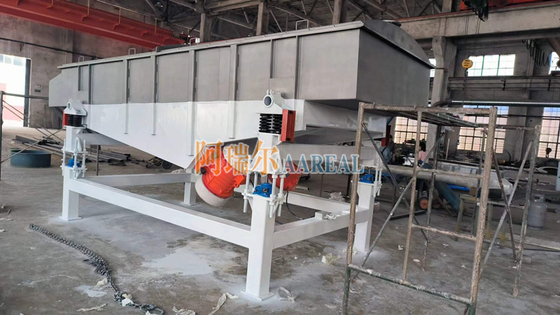

This is a Stainless Steel Linear Vibrating Screen for Herbs. The screen surface size is about 1800*4500mm. It has 3 screen decks with 4 discharge ports. And the angle of inclination is adjustable from 0 degrees to 5 degrees.

  Stainless steel linear vibrating screen is a rectangular vibrating screen made of stainless steel. The commonly used stainless steel materials are stainless steel 304, 304L, 316, 316L etc. They are all anti-corrosion, anti-rust, and high temperature resistant. They are widely used in food, medicine, chemical and other industries. It is suitable for screening, grading and impurity removal of powdered and granular materials. It can perform coarse filtration on solid-liquid mixtures. It is a light screening equipment with large processing capacity and high screening efficiency.

The stainless steel linear vibrating sieve is mainly made of SUS304 stainless steel and polished. It is corrosion-resistant, high-temperature resistant, not easy to rust, clean and hygienic. It has the following advantages:

1. Safe material and easy to clean: 304 or 316L stainless steel is selected, which is corrosion-resistant, rust-resistant and high-temperature resistant. The surface and welding points of the equipment are carefully polished and polished. There will be no powder hanging phenomenon during the screening process, which is convenient for cleaning and disinfection.
2. Fine screening: A single-layer screen can complete 400 mesh fine screening, meeting the screening processing capacity of 10 tons of large output.
3. Structural sealing, clean and hygienic: In order to ensure the hygiene of raw materials, the stainless steel linear vibrating screen adopts two measures, dust cover and sealing strip, to ensure the sealing of the equipment, and prevent multiple materials in the same workshop from contaminating each other and affecting the production process.
4. Complete models and support customization. Models with different lengths, widths and heights can be customized according to user needs.

  The linear vibrating separator is mainly composed of a screen box, a screen frame, a screen mesh, a vibration motor, a motor pedestal, a vibration damping spring, a bracket etc.

1. Screen box: It is welded from several steel plates of different thicknesses, has a certain strength and rigidity, and is the main component of the screen machine.
2. Screen frame: It consists of wooden screen frames, carbon steel screen frames and stainless steel screen frames, etc., which are mainly used to keep the screen mesh flat and achieve normal screening.
3. Screen mesh: There are several types of screen meshes such as low carbon steel, brass, bronze, and stainless steel wire.
Vibration motor.
4. Motor pedestal: Install the vibration motor, and the connecting screws must be tightened before use, especially in the first three days of the trial of the new screen machine, and must be tightened repeatedly to avoid loosening and causing accidents.
5. Vibration damping spring: Prevent vibration from being transmitted to the ground, and support the entire weight of the screen box at the same time. When installing, the spring must be perpendicular to the ground.
6. Bracket: It consists of four pillars and two channel steels, supporting the screen box. When installing, the pillars must be perpendicular to the ground, and the channel steels under the two pillars should be parallel to each other.

Introduction of 1800*4500mm 3 Decks Stainless Steel Linear Vibrating Screen for Herbs:

Stainless steel Linear motion vibrating screen for separating chemical products are used for screening of granulous bulk materials. A linear screening system suitable for light or heavy duty applications, capable of handling high rates of throughput or separating into multiple fractions.

  Linear vibrating screens can be supplied with different screen types to achieve different screening objectives. The types of screens that can be included are woven wire meshes, laser cut of punched plates, wedge wire, grid bars etc.

Working Principle of 1800*4500mm 3 Decks Stainless Steel Linear Vibrating Screen for Herbs:

  The linear vibrating sieve machine use vibration motor as vibration source, the materials are rose and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different outlets.

  There are two ways to install the vibration motor of the linear screen:

1. Bilateral: Installed on both sides

2. Bottom mounted: Installed below

Important Information About 1800*4500mm 3 Decks Stainless Steel Linear Vibrating Screen for Herbs:

Characteristics of 1800*4500mm 3 Decks Stainless Steel Linear Vibrating Screen for Herbs:

1. Double vibrating motor as the excitation source, obvious processing effect.

2. It can be installed one or more layers of screen.

3. Simple structure, seal strict, low noise, easy to repairing, low energy consumption.
4. Suitable for size sieving, grading, decontaminating of material, with big processing capacity.

5. Power distribution can be adjusted according to customers’ needs to adapt to the appropriate production conditions.

6. Mainly using in diggings, metallurgy, abrasive and abrasive tools, building materials etc.

Structural Composition of 1800*4500mm 3 Decks Stainless Steel Linear Vibrating Screen for Herbs:

  The rectangular vibrating separators are mainly composed of screen box, screen frames, screen, vibration motor, electric pedestal, damping spring, frame and so on.

1. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

2. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.

3. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.

4. Vibration motors: the vibration motor use and maintenance method to see the vibration motor operating instructions.

5. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
6. Brackets: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.

Technical Parameters of 1800*4500mm 3 Decks Stainless Steel Linear Vibrating Screen for Herbs:

Note: The data in the table are for reference only. AAREAL reserve the right to modify the above data.

Application of 1800*4500mm 3 Decks Stainless Steel Linear Vibrating Screen for Herbs:

1. Chemical Industry: colophony, industry leechdom, cosmetic, paint.

2. Food Industry: sugar,flour,amylum, rice powder,milk powder, soyabean milk, angel cake,juice,sauce,spice,salt,starch.

3. Grinding Materials And china Industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust.

4. Metallurgy, Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate.

5. Pharmacy Industry: chinese herbal medicine liquid, medicine powder, liquid and particle.

6. Paper-Making Industry: dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling.
