1000*3000mm Air Cooled Linear Vibrating Screen for Detergent

1000*3000mm Air Cooled Linear Vibrating Screen for Detergent

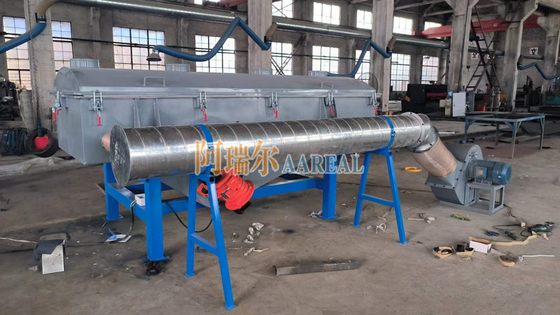

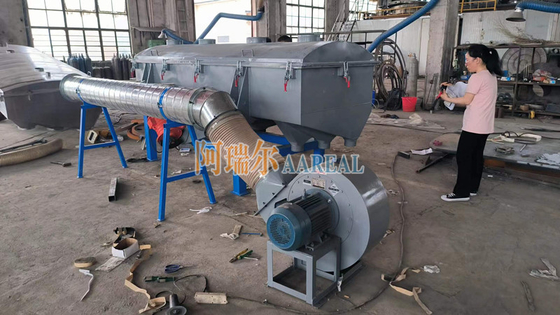

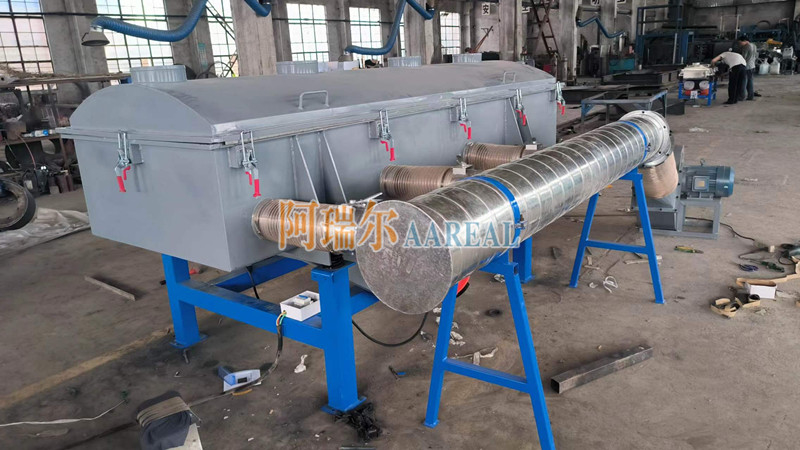

We made a 1000*3000mm Air Cooled Linear Vibrating Screen for Detergent for our client some days ago. Air-cooled linear vibrating screen is an efficient and reliable screening equipment, which is widely used in screening operations in coal, mining, chemical, metallurgy, building materials and other industries. It adopts air cooling technology to remove the heat generated by the operation of the screen through air flow, and has the characteristics of simple structure, easy maintenance and high screening efficiency.

Features and advantages of air-cooled linear vibrating screen:

1. Air cooling technology: air flow is used to take away the heat generated by the operation of the screen machine, effectively reducing the temperature of the screen machine and ensuring long-term stable operation of the screen machine.
2. High efficiency: with high screening efficiency and output, it can greatly improve production efficiency.
3. High reliability: simple structure, easy maintenance, low failure rate and long service life.
4. Wide range of applications: suitable for screening operations in different industries and different materials, and different specifications of screens can be selected according to actual needs.
5. Environmental protection and energy saving: low noise, less dust, in line with environmental protection requirements.

  The air-cooled linear vibrating screen is designed and developed for high-temperature characteristic materials. It can screen the materials after effectively reducing the material temperature, effectively improving the screening efficiency and processing capacity. The following takes washing powder as an example to illustrate the application of the air-cooled vibrating screen. Washing powder is usually at a high temperature of about 120℃ just after production. If it is not cooled down, screening and grading are very difficult, and washing clothes is not suitable for traditional water-cooled cooling. The air-cooled linear vibrating screen is used on the washing powder production line. The washing powder with a high temperature of 120℃ just after production is directly fed into the air-cooled linear vibrating screen through the conveying equipment, and passes through the fan cooling system installed at the bottom of the equipment feed port (the agglomerated materials that do not meet the requirements are screened by the screen installed at the feed port end and discharged from the small discharge port next to the discharge port). The washing powder temperature can be directly reduced to 40-50 ℃ before entering the linear vibrating screen to complete the screening and grading work.

Overview of 1000*3000mm Air Cooled Linear Vibrating Screen for Detergent:

Linear vibrating screen is also called rectangular separator, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.

  Driven by two vibration motors, the rectangular separators do rectilinear vibration. By adjusting the installation angle of the vibrating motor, the material throwing angle can be changed to achieve the required form of production. Since the rectangular separators make materials produce a very large acceleration, it can meet the high production demand.

  This machine is usually installed horizontally and can be also installed with elevation or downtilt to meet different production requirements.

Working Principle of 1000*3000mm Air Cooled Linear Vibrating Screen for Detergent:

  The rectangular separator is driven by dual vibrating motors. When the two vibration motors do synchronized and reversed rotation, the vibration force generated by its eccentric block offset each other parallel to the direction of the motor spindle, superimposing as a resultant force perpendicular to the direction of the motor shaft, thus the movement trajectory of the screening machine is a straight line.

  The two motor shafts have an angle of dip in the vertical direction relative to the screen surface. Under the combined effect of vibration force and material self-gravity, materials in the screen surface do jumping movement, so as to achieve the purpose of screening and grading materials. It can be used to realize automatic operation in the assembly line.

Features of 1000*3000mm Air Cooled Linear Vibrating Screen for Detergent:

1. Suitable for the rough screening operation of high capacity.

2. Various kinds of screen structures (wood frame, metal frame etc.).

3. Quick-open clamps can be used to remove easily.

4. The screen surface angle can be adjusted to balance the screening accuracy and production capacity.

5. The high quality damping rubber spring can be used to minimize the noise, and reduce the large swing of the start stop in the same time.

6. The motor can be installed below or above or side of the screen box to adapt to different environments.

7. It can be installed 1~8 layers of screens, and adopts the bouncing ball to clear screen.

8. Completely enclosed structure, no dust.

Structure of Linear Vibrating Screen:

Rectangular separator is mainly composed of screen box, sieve mesh, vibration motor, motor pedestal, damping spring and brackets.

1. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.

4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.

Application of 1000*3000mm Air Cooled Linear Vibrating Screen for Detergent:

  This rectangular vibrating separator is suitable for screening materials which are between 0.74mm and 10mm, water content less than 7%, and no sticky.

It is widely used in chemical industry, food, plastic, medicine, metallurgy, glass, building materials, grain, fertilizer, abrasive, ceramics and other industries, for dry powder or granular material screening.

Technical Parameters of 1000*3000mm Air Cooled Linear Vibrating Screen for Detergent:
