Place of Origin: | China |
Brand Name: | AAREAL |
Certification: | ISO9001:2015 |
Model Number: | AYGO |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Fumigation-free plywood wooden case for export |
Delivery Time: | 20~35 work days after order confirmed |
Payment Terms: | T/T, L/C |
Supply Ability: | 10 sets per month |
Capacity: | 2~4 Times Than Common Rotary Vibrating Screen | Movement: | Three Dimensional Vibration Motion |
---|---|---|---|
Drive Device: | General Motor + Verticle Vibrator | Motor: | Ordinary Motor Or Explosion-proof Motor Drive, Not Vibrating Motor |
Grid Structure: | Flange Type | Mesh Material: | Stainless Steel Mesh, Nylon Mesh (optional) |
Tags: | Powerful Vibrating Screen, Vibrating Screen, Vibrating Sieve, Vibro Sieve |

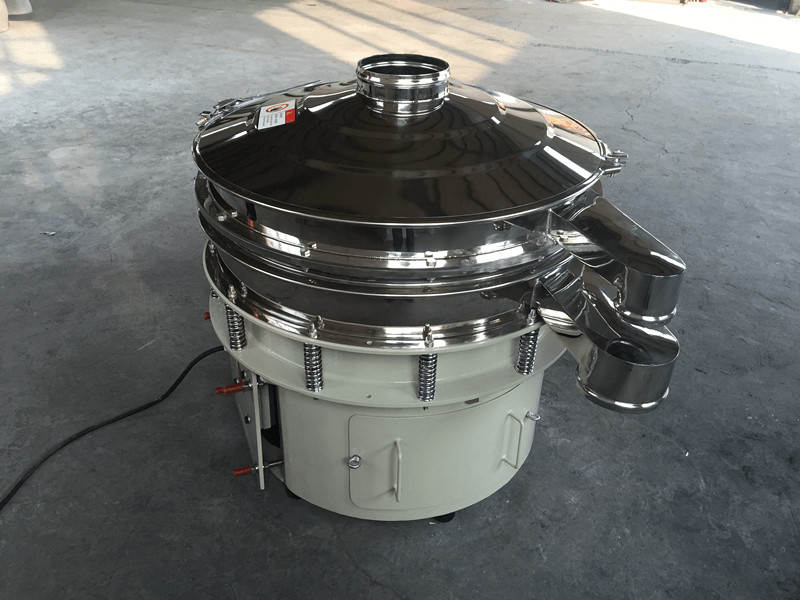

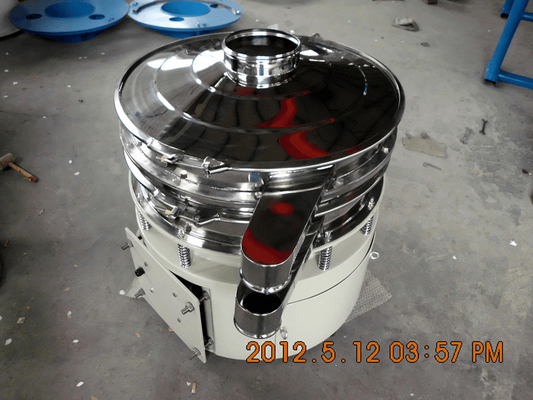

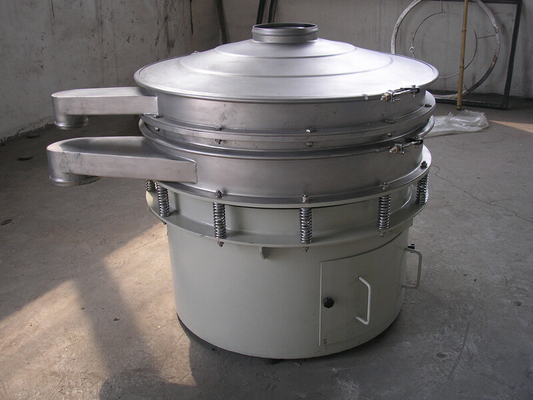

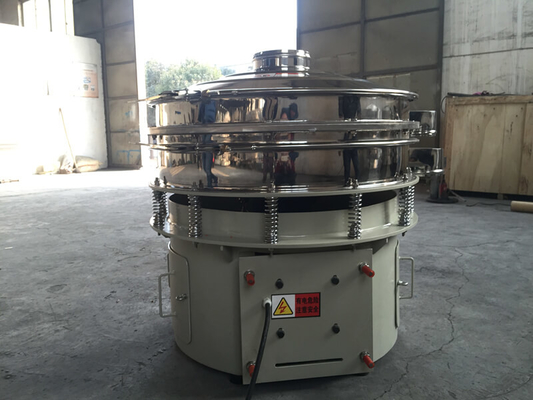

Large Capacity Powerful Rotary Vibrating Screen for Screening Fine Nickel Alloy Powder
Characteristics of Large Capacity Powerful Rotary Vibrating Screen for Screening Fine Nickel Alloy Powder:
1. the longitudinal acceleration of powerful rotary vibrating screen is twice as much as the original product rotary sieve (compared with our company)
2. the handling capacity is 2~4 times that of the original product (compared with our company). Materials those are difficult to screen can hardly clog up the mesh, and the output is also doubled.
3. the noise is obviously decreased. Small volume, convenient movement, no installation foundation
4. with more powerful vibration force and solid structure
5. more convenient to replace screen mesh
6. ordinary motor drive. Explosion-proof motor drive is also available
Comparison With Ordinary Rotary Vibrating Screen:
Name | Model | Drive Device | Movement | Screening Effect |
Ordinary Rotary Vibrating Screen | AY | vertical vibrating motor | three dimensional vibration motion | |
Powerful Rotary Vibrating Screen | AYGO | general motor + verticle vibrator | three dimensional vibration motion | 2~4 times than ordinary vibro sifter |
Grid Structure of Large Capacity Powerful Rotary Vibrating Screen for Screening Fine Nickel Alloy Powder:
Overall Structure of Large Capacity Powerful Rotary Vibrating Screen for Screening Fine Nickel Alloy Powder:
Standard Specifications of Large Capacity Powerful Rotary Vibrating Screen for Screening Fine Nickel Alloy Powder:
Diameter (mm) |
500 |
800 |
1000 |
1200 |
1500 |
Motor (KW) | 0.75 | 1.5 | 2.2 | 3.7 | 3.7 |
Vibration Number |
1800 (V.P.M) |
1500 (V.P.M) |
1200 (V.P.M) |
||
Material |
Part contact powder: SUS304 Others: hot dip galvanizing on SS400 |
Dimensional Drawing of Large Capacity Powerful Rotary Vibrating Screen for Screening Fine Nickel Alloy Powder:
Standard Size of Large Capacity Powerful Rotary Vibrating Screen for Screening Fine Nickel Alloy Powder (mm):
Model | A | B | C | D | E | F | G | H | I | J | K | L |
AYGO-500-1 AYGO-500-2 AYGO-500-3 |
550 |
100 |
490 |
375 |
80 |
80 |
438 |
542 |
-- | -- |
100 |
723 |
647 | -- | 828 | ||||||||||
647 | 752 | 933 | ||||||||||
AYGO-800-1 AYGO-800-2 AYGO-800-3 |
815 |
150 |
785 |
575 |
100 |
100 |
495 |
638 |
-- | -- |
127 |
929 |
770 | -- | 1061 | ||||||||||
770 | 902 | 1193 | ||||||||||
AYGO-1000-1 AYGO-1000-2 AYGO-1000-3 |
815 |
200 |
917 |
675 |
160 |
100 |
508 |
642 |
-- | -- |
125 |
957 |
774 | -- | 1089 | ||||||||||
774 | 906 | 1221 | ||||||||||
AYGO-1200-1 AYGO-1200-2 AYGO-1200-3 |
1030 |
250 |
1112 |
780 |
160 |
160 |
685 |
865 |
-- | -- |
165 |
1200 |
1035 | -- | 1370 | ||||||||||
1035 | 1205 | 1540 | ||||||||||
AYGO-1500-1 AYGO-1500-2 AYGO-1500-3 |
1030 |
250 |
1395 |
950 |
200 |
160 |
685 |
880 |
-- | -- |
155 |
1236 |
1040 | -- | 1396 | ||||||||||
1040 | 1200 |
1556 |
Handling Capability Reference of Large Capacity Powerful Rotary Vibrating Screen for Screening Fine Nickel Alloy Powder:
Name | Specific Gravity | Particle Size (mesh) | Powerful Type | Ordinary Type | Capability Ratio | |||
1 | Chemicals |
0.5 |
400# 500# |
AYGO-600-2S |
36Kg/h |
AY-600-2S |
10Kg/h |
3.35 |
2 | Resin | 0.9 | 80# | AYGO-1000-1S | 660Kg/h | AY-1000-1S | 283Kg/h | 2.33 |
3 | Silicide Alkali | 1.3 | 60# | AYGO-1000-1S | 970Kg/h | AY-1000-1S | 800Kg/h | 1.21 |
4 | Silica | 0.9 | 100# | AYGO-1000-1S | 500Kg/h | AY-1000-1S | 280Kg/h | 1.79 |
5 | Processed Silica | 0.5 | 100# | AYGO-1000-1S | 32Kg/h | AY-1000-1S | 28Kg/h | 2.74 |
6 | Silica Sand | 1.5 | 35# | AYGO-1000-1S | 2000Kg/h | AY-1000-1S | 1000Kg/h | 2.00 |
7 | Pharmaceuticals |
0.6 |
14# 50# |
AYGO-600-2S |
38Kg/h |
AY-600-2S |
12Kg/h |
3.35 |
8 | Abrasive Material | 2.5 | 32# | AYGO-800-1S | 3700Kg/h | AY-800-1S | 560Kg/h | 6.60 |
