Rectangular Vibrating Separator, Linear Vibrating Screen, Linear Vibrating Screener, Rectangualr Separator, Horizonal Vibrating Screen Etc.
Purpose:
Suitable For The Rough Screening Of Non-viscous Material With <7% Water Content
Material:
Carbon Steel, Stainless Steel 304, 316L, Titanium Material Etc.
Application:
Limestone, Chemical Fertilizer, Plastic Particle, Tea, Lysine, Urea Etc.
Motion:
Linear Motion
Angle:
Horizontal Or Inclined (angle Of Inclination 0°~7° )
Screen Size:
500*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*3000mm, 1200*3500mm, 1200*4000mm, 1500*3500mm Etc.
Screen Frame:
Wooden Frame, Carbon Steel Frame, Stainless Steel Frame Etc.
Mesh Deblinding System:
Mesh Cleaning Balls, Ultrasonic Deblinding System Etc.
Vibrating Motor:
Double Vibrating Motors, Horizontal Arrangement
Tags:
Linear Vibrating Sieve, Linear Vibrating Screen, Rectangular Separator
Highlight:
Stainless Steel rectangular vibrating screen
,
Multi Deck rectangular vibrating screen
,
Sea Salt rectangular vibro screen

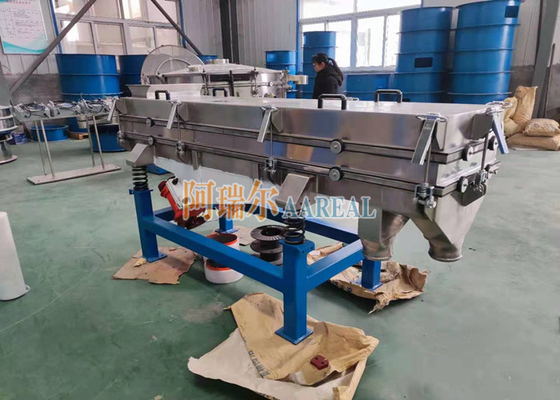

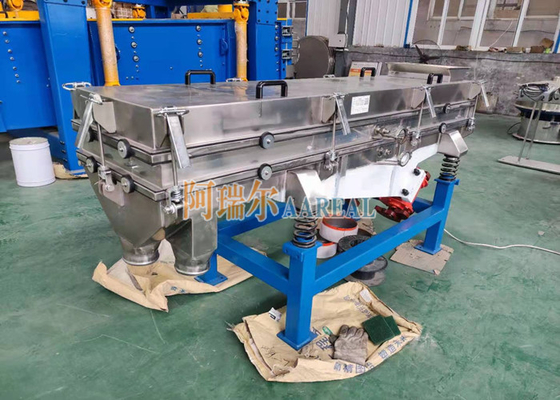

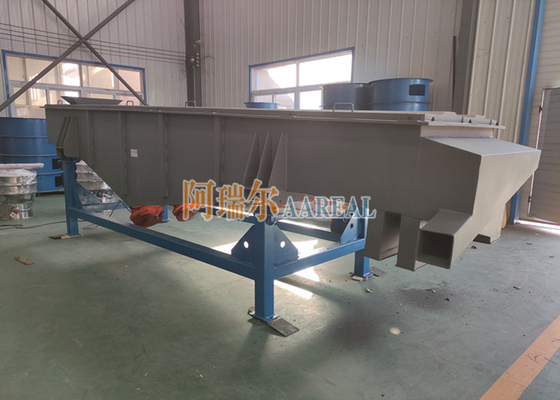

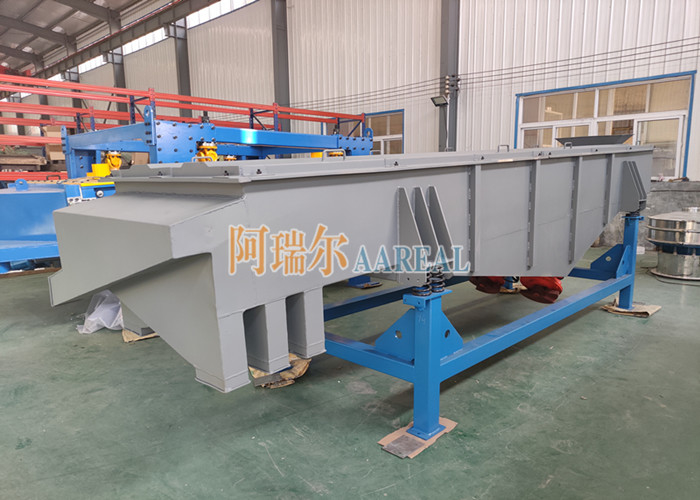

1800*4500mm Stainless Steel Multi-Deck Rectangular Linear Vibrating Screen For Sea Salt
Introduction of 1800*4500mm Stainless Steel Multi-Deck Rectangular Linear Vibrating Screen For Sea Salt:
Multi-deck Rectangular Linear Vibrating Screen Separator for Sifting Refractory Material is also known as rectangular separator, linear vibrating screen, linear screen, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener etc.
The excellent horizontal motors are used as the power source to make the material be sifted on the screen while moving forward in a straight line. It can be equipped with single or multi-layer screens to achieve grading, impurity removal, powder removal, inspection, washing, dehydration and other purposes.
Important Information About 1800*4500mm Stainless Steel Multi-Deck Rectangular Linear Vibrating Screen For Sea Salt:
Shape
rectangular shape
Motion
linear motion
Structural Composition
screen box, screen, vibration motor, motor base, damping spring, support etc.
Vibrating Motor
two sets of horizontal vibrating motors, synchronous reverse rotation
Applicable Material
suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%
Screen Surface
horizontal or inclined (0°~7°)
Layers of Screen
1~6 layers of screen (The higher layers can be customized according to the actual situation)
plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc.
Featuresof 1800*4500mm Stainless Steel Multi-Deck Rectangular Linear Vibrating Screen For Sea Salt:
1. Simple structure, easy to install and maintain.
2. Good sealing without dust flying.
3. Can be used for single-layer, multi-layers screening with long life.
4. Sieve body parts adopt steel plates and sectional material welded together (part of the body for bolt connection) the overall good stiffness, strong and reliable. 5. Material auto discharge, be able to continuous operation.
6. Low consumption with high yield and low cost.
Structureof 1800*4500mm Stainless Steel Multi-Deck Rectangular Linear Vibrating Screen For Sea Salt:
The linear vibrating screen is composed of two vibration motors, a sieve box, a screen mesh, a vibration absorbing body and a vibration damping device.
1. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
2. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine. 3. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening. 5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground. 6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Working Principleof 1800*4500mm Stainless Steel Multi-Deck Rectangular Linear Vibrating Screen For Sea Salt:
The rectangular vibrating separator adopts vibration motor as the vibration source, the material is rosed and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different gates.
TechnicalParametersof 1800*4500mm Stainless Steel Multi-Deck Rectangular Linear Vibrating Screen For Sea Salt:
Model
Nominal Size (mm)
Particle Size (mm)
Leaning Angle of Screen (°)
Amplitude (mm)
Layer
Power (Kw)
AZ-520
500*2000
0.074~10
0~7°
4~10
1~6
2*(0.4~0.75)
AZ-525
500*2500
2*(0.4~0.75)
AZ-530
500*3000
2*(0.4~0.75)
AZ-1020
1000*2000
2*(0.4~0.75)
AZ-1025
1000*2500
2*(0.4~1.1)
AZ-1030
1000*3000
2*(1.1~1.5)
AZ-1040
1000*4000
2*(1.1~1.5)
AZ-1225
1200*2500
2*(1.1~1.5)
AZ-1235
1200*3500
2*(1.1~2.2)
AZ-1250
1200*5000
2*(1.1~2.2)
AZ-1535
1500*3500
2*(1.1~2.2)
AZ-1560
1500*6000
2*(2.2~3.7)
AZ-1845
1800*4500
0.074~15
2*(2.2~3.7)
AZ-2050
2000*5000
2*(2.2~3.7)
AZ-2060
2000*6000
2*(2.2~3.7)
Note: The data in the table above are for reference only. AAREAL reserve the right to modify the above data.
Applicationof 1800*4500mm Stainless Steel Multi-Deck Rectangular Linear Vibrating Screen For Sea Salt:
Our classic linear vibratory sieve can be used in powder, granular materials selection and classification, widely used in plastics, abrasives, chemicals, pharmaceuticals, building materials, food, carbon, fertilizer and other industries.
1. Food Industries: sugar powder, monosodium, salt, starch, spices, seasonings, bread crumbs, beans powder, animal feed etc.
2. Chemical Industries: fertilizer, detergent powder, talcum powder, dyestuff, rubber, resin, pigment, cosmetic, coatings, PVC powder, CPE powder etc.
3. Grinding Material and Ceramic Industries: alumina, quartz, slurry, carborundum etc. 4. Metal, Metallurgy and Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate etc.
