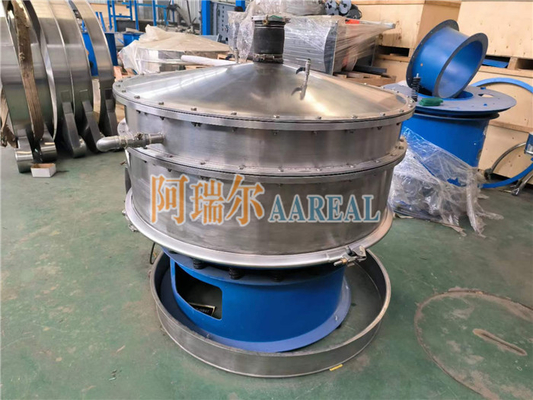

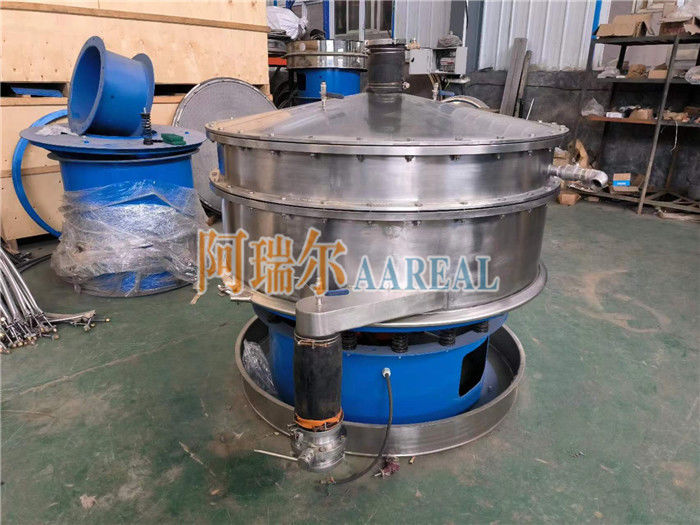

1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder

1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder

  • 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder
  • 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder
1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Price: E-mail: sale@aarealmachine.com
Payment Terms: WhatsApp: 0086-15637361027
Supply Ability: https://www.aarealmachine.com
Contact Now
Detailed Product Description
Drive Device: One Set Of Vibrating Motor, Vertical Installation Motion: Three Dimensional Motion
Purpose: Remove The Impurity, Grading And Filtering Etc. Diameter: 400mm~2000mm
Mesh Size: Above 400 Mesh Material: Carbon Steel, Stainless Steel 304, 316L, Duplex Stainless Steel 2205, Titanium Etc.
Screen Structure: L Type, Adhesive Type, Ultrasonic Type Etc. Mesh Cleaning Device: Balls, Ultrasonic System, Rotary Brush System Etc.
Characteristics: Small Size, 1~5 Layers Of Screen, Low Noise, Environmentally Friendly Etc. Application: Chemical Industry, Food Industry, Mining Industry, Medical Industry, Waste Treatment Etc.

 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder



In the process of NdFeb powder screening, nitrogen should be flushed into the screening system to isolate the air and prevent combustion. Therefore, the sealing of the screen machine must be very good, otherwise it will be dangerous in the production process. AAREAL specializes in the production of gas-tight vibrating screen, which has been widely used in a number of industries of product screening. Before the equipment leaves the factory, we will carry out strict test and inspection.



Overview of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:

 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder is a kind of high-precision powder sieving machine. By means of the upper and lower hammer mounted on the vibration motor, the vibrating sifter can turn the rotary motion force of the motor into three-dimensional motion (horizontal, vertical, inclined). Then this motion will be delivered to the screen surface. Thus, the sifter realizes the purpose of sieving. This series of vibrating sifters can be used to classify, grading and filtering in food, chemical, metal, mining and other industries.

1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder 0



Features of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:

1. Up to 5 times output per unit area; accurately to 6 Level separation, sieving efficiency is higher than 95%.

2. Acceleration is five times less than the normal vibrating screen. Spare parts will have longer life. Thus reduce the maintain cost.

3. Specially used for sieving high value-added products. Thus improve the profit.
4. We use excellent silicon rubber balls ,ultrasonic wave or rotating brush for cleaning sieving mesh. No mesh blocking.

5. Noise is lower than 75 decibel. Lower foundation dynamic load.



Working Principle of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:

  The sealed multi-layer three-dimensional rotary vibrating sieve is a vertical-motor system, with eccentric hammers being installed on top and bottom of the machine, where the motor acts as the vibratory source.
  The direction of the eccentric hammers may change its rotational mode either in horizontal, vertical and inclined movement onto the sieving screener surface. The trajectories of the materials on the sieving machine can be changed by adjusting the angle of eccentric hammers on both top and bottom parts.

1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder 1

  The general characteristics of the vibrator adjustment are described below:

1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder 2



Structure Diagram of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:

1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder 3

Important Information You May Concern About 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:

Model AY
Shape round
Layers of Screen 1~5 layers of screen (suggest 1~3 layers for 400mm~1500mm machines, and suggest 1~2 layers for 1800mm~2000mm machines)
Mesh Size above 400 mesh
Screen Frame adhesive type, L type, ultrasonic type, double-loop type etc.
Mesh Cleaning Method bouncing balls, ultrasonic system, rotary brush system etc.
Diameter 400mm, 450mm, 500mm, 600mm, 800mm, 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm etc. (Accept customization)
Material carbon steel, stainless steel 304, 316L, duplex stainless steel 2205, titanium etc.
Function grading, solid-separation, remove the impurity etc.
Movement three dimensional vibration motion
Damping Spring galvanized steel spring, stainless steel springs etc.
Motor one unit of vibrating motor (vertical installation)
Motor Brand China Made brand, OLI-WOLONG etc.



Basic Function of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:

1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder 4

1. Grading
Each model of vibrating sieve machine can precisely and continuously sift and separate screened products, the multi-layer type can sift and separate five groups of different particles at a time. It is suitable for dry materials.



2. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.



3. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.





Technical Parameters of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers
AY-400 0.18 KW 350mm 0.0962 suggest 1~3
AY-600 0.25 KW 550mm 0.2375 suggest 1~3
AY-800 0.55 KW 750mm 0.4416 suggest 1~3
AY-1000 0.75 KW 920mm 0.6644 suggest 1~3
AY-1200 1.1 KW 1120mm 0.9847 suggest 1~3
AY-1500 1.5 KW 1420mm 1.5829 suggest 1~3
AY-1800 2.2 KW 1720mm 2.3223 suggest 1~2
AY-2000 3.0 KW 1920mm 2.89 suggest 1~2

1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder 5

Overall Dimensions of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:

Model A B C D E F G I Single Layer Height Double Layer Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410



Application of 1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder:

1. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, manganese dioxide, electrolysis copper powder, electromagnetism materials, grinding powder, fire-resistant material, lime, alumina, heavy calcium carbonate etc.

2. Chemical industry: Rubber, PVC powder, resin, pigment, industrial medicine, cosmetic, coatings etc.
3. Ceramic and abrasive: silica sand, alumina, mud etc.
4. Food industry: Sugar powder, milk powder, soybean milk, starch, salt, rice noodles, egg powder, sauce, syrup etc.

5. Pharmacy profession: Chinese herbal medicine, western medicine powder, liquid, particle etc.
6. Paper making: Paper pulp, paint, wasted water recycling.

7. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon etc.



1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder1000mm Stainless Steel Airtight Type Rotary Vibrating Screen For NdFeB Permanet Magnetic Powder
