|Place of Origin:||China|
|Minimum Order Quantity:||E-mail: email@example.com|
|Mesh Cleaning System:||Ultrasonic De-blinding System||Screening Purpose:||Grading, Solid-liquid Separation, Impurity Removal Etc.|
|Layers Of Screen:||Suggest 1~3 Layers||Screen:||Adhesive Screen Structure With Energy Conduction Ring|
|Voltage:||Three Phase, 380V, 50HZ (customizable)||Application:||Rotary Vibrating Screen, Linear Vibrating Screen, Test Sieve, Sieve Shaker, Centrifugal Sifter, Turbo-screen Air Classifier Etc.|

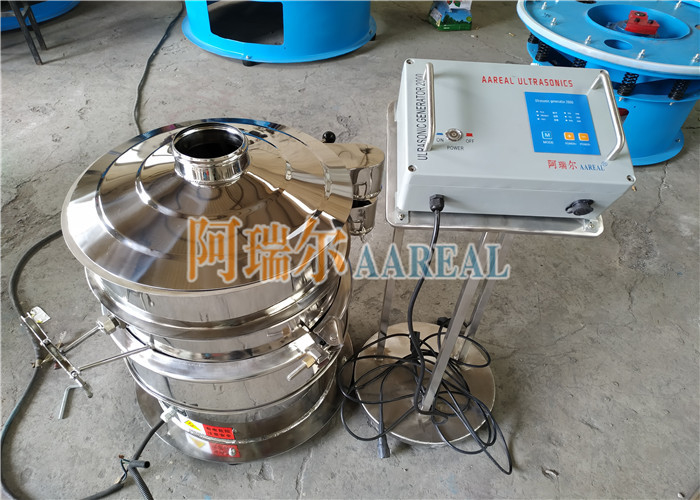

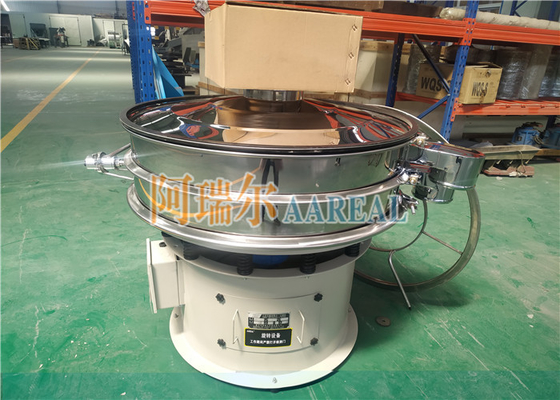

Stainless Steel Ultrasonic Rotary Vibrating Screen Separator For Battery Anode Material
Introduction of Stainless Steel Ultrasonic Rotary Vibrating Screen Separator For Battery Anode Material:
Stainless Steel Ultrasonic Rotary Vibrating Screen Separator For Battery Anode Material is a high precision fine powder sieving machine. The fundamental principle of round vibrating separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.
Application of Stainless Steel Ultrasonic Rotary Vibrating Screen Separator For Battery Anode Material:
Chemical industry: Battery anode material, Resins, coatings, industrial chemicals, cosmetics, paints, etc.
Food industry: Sugar powder, starch, salt, rice powder, milk powder, soy milk, egg powder, soy sauce, fruit juice, tea, beverage, dairy, candy, small food, frozen food, seasoning, protein, food additives, etc
Metallurgical powder industry: Manganese dioxide, electrolytic copper powder, electromagnetic material, aluminum powder, lead powder, copper powder, ore, alloy powder, electrode powder, abrasive powder, refractory material, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc.
Other industry: Waste oil, wastewater, dyeing and finishing wastewater, paper making, additives, activated carbon, Chinese medicine powder, granule pills, pellets, etc.
Structure Diagram of Stainless Steel Ultrasonic Rotary Vibrating Screen Separator For Battery Anode Material:
Features of Stainless Steel Ultrasonic Rotary Vibrating Screen Separator For Battery Anode Material:
1. Easy to replace the screen, simple operation and convenience cleaning or washing.
2. High efficiency, refined design and durability. Any powder and mucus can be sieved.
3. Impurities and coarse materials are automatically discharged and can be continuously operated.
4. The mesh is not blocked. No powder flying. And it can be sieved to 500 mesh or 0.028mm.
5. Small size, not occupying space, and easy to move.
6. Unique screen flame design. The service life of screen is long. Only 3~5 minutes to replace the screen.
7. The screen of the machine can reach up to 5 layers, but 3 layers are recommended.
Purpose of Stainless Steel Ultrasonic Rotary Vibrating Screen Separator For Battery Anode Material:
Grading Solid-liquid Separation Impurity Removal
Working Principle of Stainless Steel Ultrasonic Rotary Vibrating Screen Separator For Battery Anode Material:
1. The three-dimensional vibrating sifter is made up of an upright motor as an excitation source. The upper and lower ends of the motor are equipped with an eccentric weight to convert the rotary motion of the motor into a horizontal, vertical, and inclined three-dimensional motion, and then transmit this motion to the screen surface makes the material expand and involute on the screen surface, so the series of vibrating screens is called "rotary vibrating screen".
2. After the vibro screen is started, the power device is the eccentric block with different phases at the upper and lower ends of the vibrating motor. Due to the high-speed placement, a compound inertial force is generated, which forces the vibrating body of the screen to perform the reciprocating motion, and the screen frame is vibrating.
3. The rotary vibrating sieve has the advantages of long track of material running and high utilization rate of screen surface. Adjusting the phase angle of the upper and lower ends of the hammer can change the movement track of the material on the screen surface. The material can be finely sieved and probability sieved.
4. Under the action of the continuous reciprocating motion, the ground is driven to drive the screen surface for periodic vibration, so that the material on the screen surface is directionalally moved together with the screen box, during which the material smaller than the sieve surface diameter falls through the sieve hole to the lower layer, to become a sieve under the material, the material larger than the sieve aperture is discharged from the discharge opening after continuous jumping movement, and finally the screening work is completed.
5. The trajectory of the vibrating body of the rotary vibrating separator is a complex spatial three-dimensional curve. The projection of the curve on the horizontal plane is circular, and the projections on the two vertical planes are two identical ellipse. In practical application, by adjusting the relative phase of the eccentric block at the upper and lower ends of the vibration motor, the movement trajectory of the material on the sieve surface can be changed, thereby achieving different screening operations.
Some Information About Stainless Steel Ultrasonic Rotary Vibrating Screen Separator For Battery Anode Material:
|Shape||circular or round shape|
|Layers of Screen||1~5 layers of screen with 2~6 discharge ports|
|Mesh Size||above 500 mesh|
|Screen Frame||L type (bolt insert type), adhesive type, ultrasonic type (transducer internal and external) etc.|
|Self-cleaning System||bouncing balls (with ball decks), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 900mm, 1000mm, 1200mm, 1500mm, 1600mm, 1800mm, 2000mm etc.|
|Material||carbon steel, duplex stainless steel 2205, stainless steel 304, 316L, plastic materials etc.|
|Surface Treatment||Paint, sandblast and mirror polish etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement|
|Motor Brand||AAREAL Made, OLI-WOLONG, Italvibras etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor (optional)|
woven wire mesh screen, perforated plate, bounce balls, clamps, springs,
sealing rubber strip etc.
|Optional Design||discharge gate, magnetic guard, quick release clamp, glass viewing port etc.|
Overall Dimensions of Stainless Steel Ultrasonic Rotary Vibrating Screen Separator For Battery Anode Material:
|Model||A||B||C||D||E||F||G||I||Single Layer Height||Double Layer Height||
Technical Parameters of Stainless Steel Ultrasonic Rotary Vibrating Screen Separator For Battery Anode Material:
|Model||Power||Screen Surface Diameter||Effective Screening Area (m2)||Layers of Screen|
