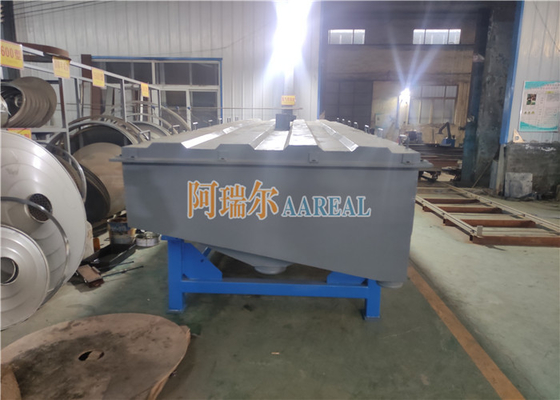

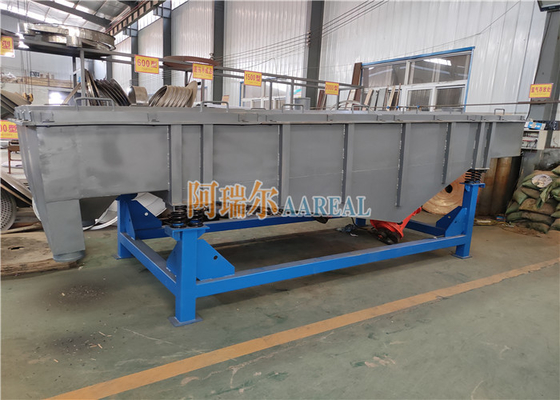

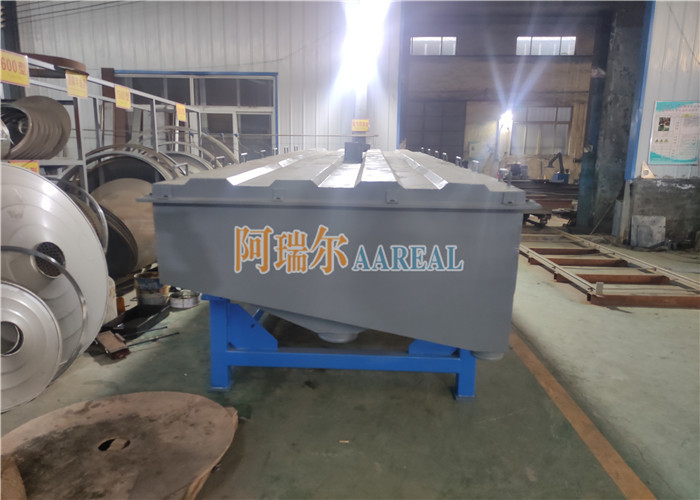

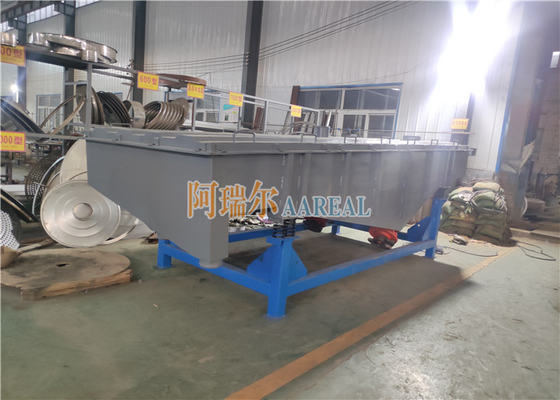

1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips

1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips

  • 1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips
  • 1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips
  • 1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips
1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AZ
Payment & Shipping Terms:
Minimum Order Quantity: E-mail: sale@aarealmachine.com
Price: WhatsApp: 0086-15637361027
Payment Terms: https://www.aarealmachine.com
Contact Now
Detailed Product Description
Motion: Linear Vibration Motion Layers Of Screen: 1~6 Layers Of Screen
Screen Frame: Wooden Frame, Carbon Steel Frame, Stainless Steel Frame, End-tensioned Screen Etc. Mesh Size: 0.074mm~15mm
Material: Carbon Steel, Titanium Materials, Stainless Steel Etc. Mesh Cleaning Method: Boucing Balls, Ultrasonic Deblinding System Etc.
Optional: Quick-open Clamps, Pneumatic Lifting Device Etc. Motor Power: (0.4KW~3.7KW) *2 Units
Surface Treatment: Plastic Spraying, Spray Paint, Mirror Polishing, Sand Blasting Etc. Screen Width: 500mm, 800mm, 1000mm, 1200mm, 1500mm Etc.
Screen Length: 1500mm, 2000mm, 2500mm, 3000mm, 3500mm, 4000mm, 4500mm Etc. Application: Chemical Industry, Food Industry, Mining Industry Etc.

1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips



Introduction of 1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips:

1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips is a standard and universal linear-motion vibration type sieving equipments. With low power consumption, large output, simple structure,easy maintenance, fully enclosed structure, no dust, automatic nesting, more suitable for pipeline operations. The linear vibro sifter is the efficient new screening equipment widely used in food, refractory materials, building materials, mining, coal, metallurgy, light industry, chemical industry etc..



Technical Parameters of 1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips:

Model Nominal Size (mm) Particle Size (mm) Leaning Angle of Screen (°) Amplitude (mm) Layer Power (Kw)
AZ-520 500*2000 0.074~10 0~7° 4~10 1~6 2*(0.4~0.75)
AZ-525 500*2500 2*(0.4~0.75)
AZ-530 500*3000 2*(0.4~0.75)
AZ-1020 1000*2000 2*(0.4~0.75)
AZ-1025 1000*2500 2*(0.4~1.1)
AZ-1030 1000*3000 2*(1.1~1.5)
AZ-1040 1000*4000 2*(1.1~1.5)
AZ-1225 1200*2500 2*(1.1~1.5)
AZ-1235 1200*3500 2*(1.1~2.2)
AZ-1250 1200*5000 2*(1.1~2.2)
AZ-1535 1500*3500 2*(1.1~2.2)
AZ-1560 1500*6000 2*(2.2~3.7)
AZ-1845 1800*4500 0.074~15 2*(2.2~3.7)
AZ-2050 2000*5000 2*(2.2~3.7)
AZ-2060 2000*6000 2*(2.2~3.7)

Note: The data in the table are for reference only. Our company reserve the right to modify the above data.



Characteristics of 1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips:

1. Movable screening process
At the same time of screening, the material has been transported over long distances.



2. Easy to repace screens and parts
Using a special grid structure design, the screens and parts can be easily changed and tighten.


3. High capacity and Friendly working space
With excellent structuer of machine and motors, the output is very high and working noise is low.


4. High sieving precision
The material has a long stroke on the screen surface, high screening precision and large processing capacity.


5. Flexible machine structures
Different shapes and structures can be designed according to the production site.


6. Suitable for different screening sizes
Change the screen spacing and inclination according to material size, permeability probability and productivity


7. Low maintenance cost and long service time
All parts of the screen body are welded properly with excellent steel plates,and the overall rigidity is good, firm and reliable for very long time.


8. Good sealing and minimal dust spillage
Fully enclosed structure, automatic discharge lead to nearly zero rate of dust spillage.



Important Information About 1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips:

Model AZ-515, 520, 525, 1025, 1030, 1040, 1225, 1230, 1235, 1535, 1550 etc.
Shape rectangular shape
Motion linear vibrating motion
Structural Composition screen box, mesh screens, double vibration motors, motor base, damping springs, support stands etc.
Vibrating Motor adopts two units of horizontal vibrating motors, synchronous reverse rotation
Applicable Material suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%
Screen Surface Angle horizontal or inclined (0°~7°)
Layers of Screen 1~6 layers of screen (The higher layers can be customized according to the actual situation)
Screen Frame carbon steel screen frame, stainless steel screen frame, wooden screen frame, end-tensioned screen structure etc.
Mesh Cleaning Method bouncing balls, ultrasonic system etc.
Material carbon steel, titanium material, stainless steel 304/316L etc.
Screen Size screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm, 1500*5000mm etc.
Application chemical fertilizer, urea, sand, refractory material, lysine, plastic particle, organic fertilizer, limestone, fodder, feeding stuff, tea etc.
Surface Treatment mirror polishing, sand blasting, plastic spraying, spray paint etc.



Working Principle of 1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips:

1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips 0

   The rectangular vibrating sifter adopts vibration motor excitation as the source of vibration, so that the material was tossed in the sieve,while forward in a straight line material evenly into the screening machine feeder feed port, multi-layer mesh specifications of sieve, sieve material, respectively, discharged from their exports.

   There are two ways to install the vibration motor of the linear vibrating sifter:

1. Bottom mounted: Installed below (common used)

2. Bilateral: Installed on both sides



Structural Composition of 1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips:

The rectangular vibrating screens are mainly composed of screen box, screen frames, screen, vibration motor, electric pedestal, damping spring, frame and so on.

1. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

2. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.

3. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.

5. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
6. Brackets: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.



Application of 1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips:

1. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide, etc.

2. Food industry: jelly bean, sugar, salt, milk powder, yeast powder, alkali, gourmet powder, starch, pollen, food additive, bean milk, juice, etc.
3. Chemical industry: medicine, grease, resin, pigment, paint, palette, cosmetic, etc.

4. Metallurgy industry: aluminum powder, lead powder, copper powder, ore, alloy powder ,electrode powder, manganese dioxide, electrolytic copper powder, electric magnetic material, polishing powder, refractory material, etc.

5. Mechanical industry: powder metallurgy, casting sand, electromagnetic material and metal powder, etc.
6. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
7. Abrasive material and ceramic industry: mica, alumina, abrasive, refractory material, slurry, building sand, etc.
8. Pollution treatment: waste oil, waste water,additives, activated carbon,etc.



1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips1500*4500mm Multi-Deck Rectangular Vibrating Separator For Wood Chips
