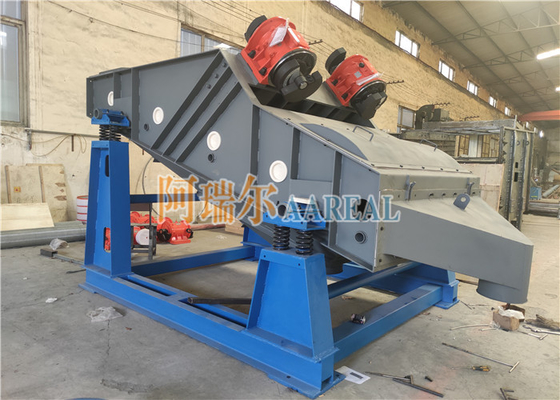

1800*3600mm Multi Deck Mogensen Linear Rectangular Vibrating Screen For River Sand

1800*3600mm Multi-deck Mogensen Linear Probability Vibrating Screen for River Sand

Overview of 1800*3600mm Multi-deck Mogensen Linear Probability Vibrating Screen for River Sand:

1800*3600mm Multi-deck Mogensen Linear Probability Vibrating Screen for River Sand is well known as the name of probability screen, probability sieve, mogensen screen, mogensen sizer, mogensen sieve, mogensen screener, mogensen screening machine, vibration probability screen, vibrating probability screen, vibration probability sieve, vibrating probability sieve etc. It is a kind of screening machine that actively uses the principle of probability screening.

  This series of vibration sieving machine is a successful example of the combination of probability theory and engineering practice. Its new design concept, unique structure and screening principle have achieved the perfect screening effect of the probability screen and have a wide application prospect.

  The high efficiency vibration probability sieve is a kind of new efficient screening equipment. The moving trajectory of the sieve box is linear motion. It adopts multi-layer and large inclined angle screen surface. The angle of the screen increases from top to bottom. And using probability theory, the mesh size is larger than the required sieve size, generally 1.2~2.2 times, which greatly improves the screening efficiency and production capacity.

Application of 1800*3600mm Multi-deck Mogensen Linear Probability Vibrating Screen for River Sand:

  The high efficiency vibrating probability screen has been widely used in metallurgy, building materials, coal and other industrial departments for medium and fine particle size grading.

Features of 1800*3600mm Multi-deck Mogensen Linear Probability Vibrating Screen for River Sand:

1. The production capacity of unit area is large, and the screen mesh is not easy to jam.

2. Several kinds of products with different particle sizes can be produced at the same time.

3. It is easy to replace the screen. The screen tension is moderate. No cross layer and mesh blockage.

4. Uniform material distribution and high screening efficiency.

5. The equipment is made of high quality stainless steel, corrosion resistant and long service life.

6. Completely enclosed, free of dust, smooth operation, easy to use and maintain.

7. A single high efficiency vibration probability screen machine can separate 2~7 grain size materials at the same time.

Working Principle of 1800*3600mm Multi-deck Mogensen Linear Probability Vibrating Screen for River Sand:

  The screen surface of Mogensen screen does linear vibration relying on the vibration excitation device. The high efficiency vibration probability sizer adopts the screen mesh which is bigger than the sieving granularity. Probability vibrating screen adopts multi-layer (usually 3 ~ 6 layer), large dip angle (generally 30°~60°), and large sieve mesh (the screen mesh size is 2~10 times of the separation size) as the screen surface. It consists of a frame, double vibrating motors and a group of multi-layer overlapping screens whose gradient increase from top to bottom, and the mesh of which decrease progressively.

  The whole sieving machine is mounted on a set of elastic elements. High frequency vibration is obtained by the screen through the rotation of vibration motor.

  The mesh size of vibration Mogensen probability screen is generally larger than particle size. As soon as the material enters the screen machine, it disintegrates rapidly, thereby eliminating the mesh clogging phenomenon may caused by the critical particles.

Main Dimensions of 1800*3600mm Multi-deck Mogensen Linear Probability Vibrating Screen for River Sand:
