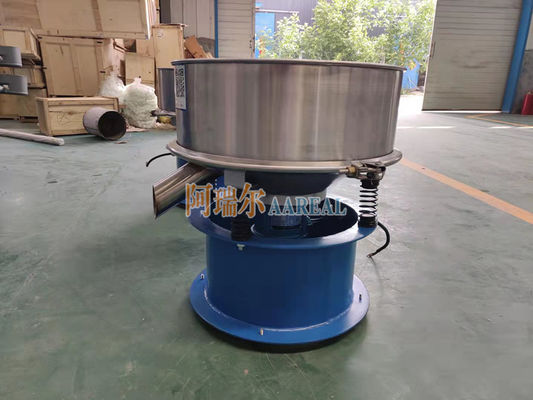

Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen For Powder Coating

Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen For Powder Coating

  • Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen For Powder Coating
  • Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen For Powder Coating
  • Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen For Powder Coating
Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen For Powder Coating
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AY
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: E-mail: sale@aarealmachine.com
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 20 sets per month
Contact Now
Detailed Product Description
E-mail: Sale@aarealmachine.com WhatsApp: 0086-15637361027
Structural Features: The Bottom Frame And The Vibrating Body Are Integrated Into One Motion: Three Dimensional Vibration Movement
Custom Design: Low-profile Screen, High Frequency Screen, Avalanche Screen Etc. Purpose: Impurity Removal, Filtering, Particle Size Grading, De-watering, De-dusting, Lump Breaking, Cooling, Size Control Etc.
Motor: One Unit Of Verticle Vibrating Motor Screen Frame: Glue Adhesive Type, Bolt Insert Type, Flange Type Etc.
Mesh Cleaning Device: Bouncing Balls, Ultrasonic Deblinding System, Rotary Brush System Etc. Optional Parts: Discharge Gate, Quick Release Clamp, Magnetic Guard, Glass Viewing Port Etc.
High Light:

Simple Structure Rotary Vibrating Screen

,

Rotary Vibrating Screen For Powder Coating

,

Simple Structure single deck vibrating screen

Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder Coating



Product Description of Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder Coating:

Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder Coating is a revolutionary high performance vibrating screen for screening wet or dry materials. It is also known as the rotary vibrating screen, rotary vibrating sieve, round separator, vibro screen, vibrating sifter, round vibro sieve, gyro screen, gyro sieve, round sifter, round screener, round vibro sieve machine, round gyratory screen, rotary screen, rotatory vibrating screen, rotary vibrating sieve, circular vibratory screen, circular vibrating screen, circular vibrating sieve, gyro screen, gyro sifter, gyratory sifter, gyratory screen, gyratory sieving machine, vibro sifter, vibro separator, vibro grader, classic separator, vibratory separator, vibratory sifter, sanitary separators, filter sieve machine, industrial sifter etc.



Important Information You May Concern About Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder Coating​​:

Model AY
Shape round or circular
Structural Features the bottom frame and the vibrating body are integrated into one
Layers of Screen 1~5 screen decks (with 2~6 discharge ports)
Mesh Size above 325 mesh
Screen Frame L type, adhesive type, ultrasonic type (transducer internal and external) etc.
Mesh Cleaning Method bouncing balls, ultrasonic system, rotary brush system etc.
Diameter 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm
Material carbon steel, stainless steel 304, 316L etc.
Function grading, solid-separation, remove the impurity etc.
Movement three dimensional vibration motion
Damping Spring galvanized steel spring etc.
Motor verticle vibrating motor
Motor Brand China Made, OLI-WOLONG etc.
Optional quick release clamp, magnetic guard, discharge gate, glass viewing port etc.



Working Principle of Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder Coating:

  The powder coating rotary vibating screen separator adopts the latest vertical vibrating motor, which produces a horizontal, vertical and oblique vibration of three dimensional, and then directly passes the vibration to screen surface. Changing the angle of the upper and lower eccentric block of the motor, it produces different exciting force, and the direction in which the material is running is changed.

  The rotary vibrating screen filter sieve machine is made up of spring buffer, base, upper and lower heavy hammer,vibrating motor, screen frame, clamp ring, vibrating body, inlet and outlet port, dust proof cover and other parts. The exciting force will generate by the rotation of vibrating motor. The exciting force drives the vibrating body to vibrate. So the materials on the screen cloth can shake to reach the objective that filters different grade materials., The adjustable eccentric hammer is driven to the center line through the motor, caused centrifuged force under the state of unbalance and so that the materials from regular spiral. Speed and track of materials on the screen can be controlled by adjusting the angle of the two eccentric weights.

Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen For Powder Coating 0

The general characteristics of the vibrator adjustment are described below:

Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen For Powder Coating 1

Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen For Powder Coating 2



Structure Diagram of Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder Coating​​:

Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen For Powder Coating 3

Features of Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder Coating:

1. screen mesh from 3.5 mesh to 400 mesh;

2. it is applicable to any powder, liquid and granular;

3. people can replace rapidly network layer without any tool, using the network layer to 8 layer;
4. the time can be setting under automatic control, can be set 1 to 60 minutes;
5. screen powder does not float in the sky, spray liquid not disorderly, granule not jump.



Basic Function of Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder Coating:

Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen For Powder Coating 4

1. Grading
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi-layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.



2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.



3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.



Technical Parameters of Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder Coating:

Model Power Screen Surface Diameter Effective Screening Area (m2) Layers
AY-400 0.18 KW 350mm 0.0962 1~3
AY-600 0.25 KW 550mm 0.2375 1~3
AY-800 0.55 KW 750mm 0.4416 1~3
AY-1000 0.75 KW 920mm 0.6644 1~3
AY-1200 1.1 KW 1120mm 0.9847 1~3
AY-1500 1.5 KW 1420mm 1.5829 1~3
AY-1800 2.2 KW 1720mm 2.3223 1~3
AY-2000 3.0 KW 1920mm 2.89 1~3

Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen For Powder Coating 5

Overall Dimensions of Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder Coating:

Model A B C D E F G I Single Layer Height Double Layer Height

Three

Layer

Height

AY-400 472 372 150 400 110 60 300 270 550 660 770
AY-600 570 450 200 600 120 80 380 340 730 865 1000
AY-800 690 570 200 800 130 100 550 340 730 865 1000
AY-1000 810 690 250 970 150 120 650 400 790 925 1060
AY-1200 970 850 250 1170 180 130 760 450 860 1025 1190
AY-1500 1180 1060 250 1470 200 140 950 480 985 1180 1370
AY-1800 1480 1360 350 1770 220 150 1110 520 1030 1220 1410



Application of Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder Coating:

1. Food Industry: sugar, amylum, rice powder, milk powder, soyabean milk, angel cake, sauce, juice.

2. Chemical Industry: colophony, dope, industry leechdom, cosmetic, paint
3. Grinding Materials And china Industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust.

4. Metallurgy, Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate.
5. Paper-Making Industry: dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling.


Optional Designs for Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder Coating:
1. Spring Dust Cover: it is used to provide additional protection against dust and other particles by the strength of the springs, which is determined by the rollers which are also spring-loaded.

2. Discharge Gate: it is used to control production flow and speed. This enables a better flow and provides consistent discharge characteristics from even surfaces. However, the discharge rate might differ from the ratio and diameter of the discharge pipe.
3. Quick Release Clamp: it is used for releasing camps rings without the need to use tools. While the other side of the clamp is used for tightening. It is mostly used for cleaning and dissembling purposes.

4. Spring Dust Cover: it is used to provide additional protection against dust and other particles by the strength of the springs, which is determined by the rollers which are also spring-loaded.
5. Customised Dust Cover: it is used to reduce any leaks from the machine. It also helps reduce airborne dust from flowing on the steam or conveyer belt. This device is made custom to fit your production line.



Stainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder CoatingStainless Steel Simple Structure Single Deck Rotary Vibrating Screen for Powder Coating
