|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for small size|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||10 sets per month|
|Driving Device:||Double Horizontal Vibrating Motors||Material:||Carbon Steel, Stainless Steel 304, 316L, Titanium Material Etc.|
|Layers Of Screen:||1~7 Layers Of Screen||Screen:||Woven Wire Meshes, Laser Cut Of Punched Plates, Wedge Wire, Grid Bars|
|Screen Frame/Holder:||Wooden Screen Frame, Carbon Steel Screen Frame, Stainless Steel Screen Frame, Hook Screen Frame, End-tension Screen Frame Etc.||Application:||0.074mm~10mm, Water Content <7%, No Sticky|
Linear Vibrating Screen For Titanium Dioxide,
Stainless Steel Linear Vibrating Screen,
Titanium Dioxide linear motion vibrating screen

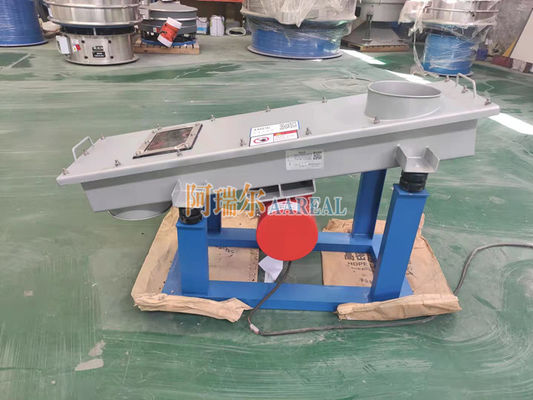

Stainless Steel Single Deck Linear Vibrating Screen for Titanium Dioxide
Working Principle of Stainless Steel Single Deck Linear Vibrating Screen for Titanium Dioxide:
What is linear vibrating screen? Stainless Steel Single Deck Linear Vibrating Screen for Titanium Dioxide adopts double vibration motors as vibration source, the gravel is rosed and moved in the straight at the same time. The gravel are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different gates. It is suitable for low consuming, high output, and simple structure, easily maintain all-closed structure, no powder dispersed.
A linear screening system suitable for light or heavy duty applications, capable of handling high rates of throughput or separating into multiple fractions.
Advantages of Stainless Steel Single Deck Linear Vibrating Screen for Titanium Dioxide:
- high screening efficiency both with liquid and solid products;
- vibration is activated by one or two vibrating motors with adjustable out-of-balance force;
- vibration develop in the horizontal and in the vertical plane and can be settled in both directions;
- vibrating motor design allows to adjust easily the counterweight and modify the vibration to find the best way to sieve a product (for gentle screening, long residence times, high throughputs or difficult-to-screen products);
- rectangular separators are provided with high quality suspension that virtually eliminates transmitted vibrations;
- vibrating motor are standard and provide reliable power;
- built on customer request with carbon steel, stainless steel AISI 304, stainless steel AISI 316;
- screens are easy and fast to change and can be equipped with rubber balls cleaning system.
Structure of Stainless Steel Single Deck Linear Vibrating Screen for Titanium Dioxide:
Linear vibrating separator is mainly composed of screen box, sieve mesh, vibration motor, motor pedestal, damping spring and brackets.
1. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
2. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
3. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
4. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Single Layer Multi-layer
Plastic Grain Separator Washing Powder Separator
New Type Spring Separator
Technical Parameters of Stainless Steel Single Deck Linear Vibrating Screen for Titanium Dioxide:
|Model||Nominal Size (mm)||Particle Size (mm)||Leaning Angle of Screen(°)||Amplitude (mm)||Layer||Power (Kw)|
Application of Stainless Steel Single Deck Linear Vibrating Screen for Titanium Dioxide:
AAREAL rectangular vibrating sieve is suitable for screening materials which are between 0.074mm and 10mm, water content less than 7%, and no sticky. It is widely used in food, plastic, medicine, chemical industry, metallurgy, glass, building materials, grain, fertilizer, abrasive, ceramics and other industries, for dry powder or granular material screening.
Granulated sugar, MSG, amino acids, freeze-dried food, coconut granules etc.
Activated carbon, glass, paper, fertilizer, sulfuric acid etc.
Granule pills, pellets, Chinese medicine, etc.
Iron powder, aluminum powder, copper powder, alloy powder, refractory materials, steel shot, aluminium oxide and so on
Iron ore tailings, lead and zinc tailings, quartz sand, potassium feldspar dehydration, industrial sewage, coal sludge dehydration, soil restoration
Contact Person: Ms. Magie
Other Names: linear vibrating screen, linear vibrating screener, rectangualr separator, horizonal vibrating screen etc.
Purpose: suitable for the rough screening of non-viscous material with <7% water content
Application: limestone, chemical fertilizer, plastic particle, tea, lysine, urea etc.
Motor: two vibrating motors, horizontal arrangement
