| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AZ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Send E-mail: sale@aarealmachine.com |
| Packaging Details: | Fumigation-free plywood wooden case for small size |
| Delivery Time: | 20~30 workdays after order confirmed |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10 sets per month |
| Movement: | Linear Vibration Motion | Motors: | 2 Sets Of Horizontal Vibrating Motors |
|---|---|---|---|
| Characteristics: | Small Size, High Output, Low Noise And Energy Consumption Etc. | Mesh Cleaning Device: | Bouncing Balls, Ultrasonic Deblinding System Etc. |
| Screen Frames: | Carbon Steel Frame, Stainless Steel Frame, Wooden Frame Etc. | Surface Treatment: | Spray Paint, Plastic Spraying, Mirror Polishing, Sand Blasting Etc. |
| Material: | Stainless Steel, Carbon Steel, Titanium Materials Etc. | Application: | Food, Chemicals, Abrasives, Plastics Etc. |
| High Light: | SUS Linear Motion Vibrating Screen,Chemical Products Linear Motion Vibrating Screen,Chemical Products linear vibrating sieve |
||

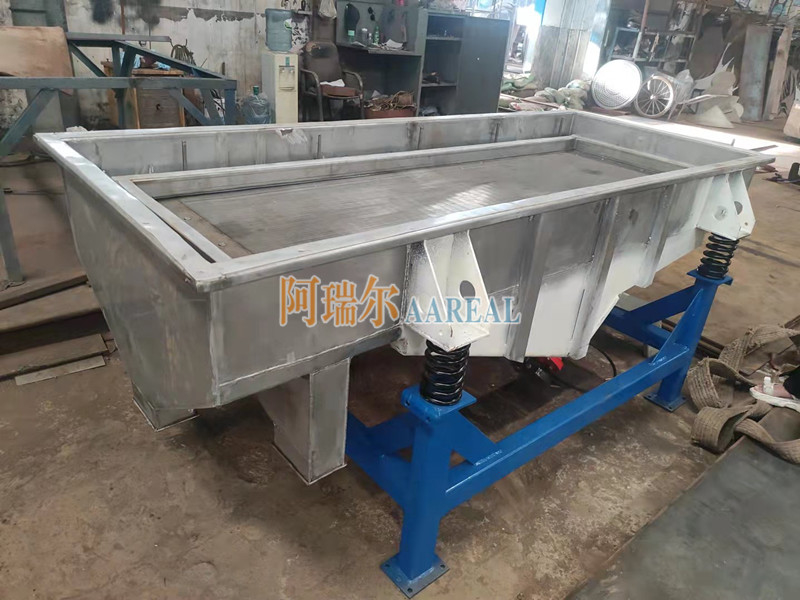

Stainless Steel Linear Vibrating Screen for Separating Sifting Chemical Products
Introduction of Stainless Steel Linear Vibrating Screen for Separating Sifting Chemical Products:
Stainless steel Linear motion vibrating screen for separating chemical products are used for screening of granulous bulk materials. A linear screening system suitable for light or heavy duty applications, capable of handling high rates of throughput or separating into multiple fractions.
Linear vibrating screens can be supplied with different screen types to achieve different screening objectives. The types of screens that can be included are woven wire meshes, laser cut of punched plates, wedge wire, grid bars etc.
Working Principle of Stainless Steel Linear Vibrating Screen for Separating Sifting Chemical Products:
The linear vibrating sieve machine use vibration motor as vibration source, the materials are rose and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different outlets.
There are two ways to install the vibration motor of the linear screen:
1. Bilateral: Installed on both sides
2. Bottom mounted: Installed below
Important Information About Stainless Steel Linear Vibrating Screen for Separating Sifting Chemical Products:
| Model | AZ-515, 520, 525, 1025, 1030, 1040, 1225, 1230, 1235, 1535 etc. |
| Shape | rectangular shape |
| Movement | linear vibration motion |
| Structural Composition | screen box, mesh screen, vibration motors, motor base, damping springs, stand etc. |
| Vibrating Motor | two sets of horizontal vibrating motors, synchronous reverse rotation |
| Applicable Material | suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7% |
| Screen Surface Angle | horizontal or inclined (0°~7°) |
| Layers of Screen | 1~6 layers of screen (The higher layers can be customized according to the actual situation) |
| Screen Frame | wooden screen frame, carbon steel screen frame, stainless steel screen frame etc. |
| Mesh Cleaning Method | bouncing balls, ultrasonic system etc. |
| Material | carbon steel, stainless steel 304/316L, titanium material etc. |
| Screen Size | screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc. |
| Application | chemicals, food, plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, refractory material, feeding stuff etc. |
| Surface Treatment | mirror polishing, sand blasting, plastic spraying, spray paint etc. |
Characteristics of Stainless Steel Linear Vibrating Screen for Separating Sifting Chemical Products:
1. Double vibrating motor as the excitation source, obvious processing effect.
2. It can be installed one or more layers of screen.
3. Simple structure, seal strict, low noise, easy to repairing, low energy consumption.
4. Suitable for size sieving, grading, decontaminating of material, with big processing capacity.
5. Power distribution can be adjusted according to customers’ needs to adapt to the appropriate production conditions.
6. Mainly using in diggings, metallurgy, abrasive and abrasive tools, building materials etc.
Structural Composition of Stainless Steel Linear Vibrating Screen for Separating Sifting Chemical Products:
The rectangular vibrating separators are mainly composed of screen box, screen frames, screen, vibration motor, electric pedestal, damping spring, frame and so on.

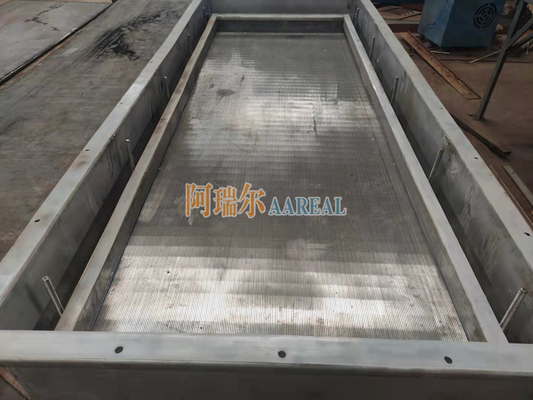

1. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
2. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
3. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.

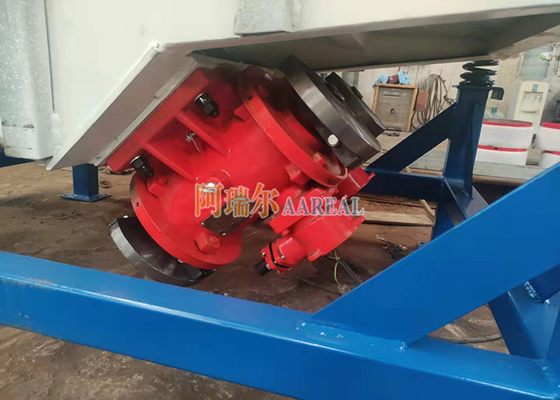

4. Vibration motors: the vibration motor use and maintenance method to see the vibration motor operating instructions.
5. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
6. Brackets: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Technical Parameters of Stainless Steel Linear Vibrating Screen for Separating Sifting Chemical Products:
| Model | Nominal Size (mm) | Particle Size (mm) | Leaning Angle of Screen (°) | Amplitude (mm) | Layer | Power (Kw) |
| AZ-520 | 500*2000 | 0.074~10 | 0~7° | 4~10 | 1~6 | 2*(0.4~0.75) |
| AZ-525 | 500*2500 | 2*(0.4~0.75) | ||||
| AZ-530 | 500*3000 | 2*(0.4~0.75) | ||||
| AZ-1020 | 1000*2000 | 2*(0.4~0.75) | ||||
| AZ-1025 | 1000*2500 | 2*(0.4~1.1) | ||||
| AZ-1030 | 1000*3000 | 2*(1.1~1.5) | ||||
| AZ-1040 | 1000*4000 | 2*(1.1~1.5) | ||||
| AZ-1225 | 1200*2500 | 2*(1.1~1.5) | ||||
| AZ-1235 | 1200*3500 | 2*(1.1~2.2) | ||||
| AZ-1250 | 1200*5000 | 2*(1.1~2.2) | ||||
| AZ-1535 | 1500*3500 | 2*(1.1~2.2) | ||||
| AZ-1560 | 1500*6000 | 2*(2.2~3.7) | ||||
| AZ-1845 | 1800*4500 | 0.074~15 | 2*(2.2~3.7) | |||
| AZ-2050 | 2000*5000 | 2*(2.2~3.7) | ||||
| AZ-2060 | 2000*6000 | 2*(2.2~3.7) |
Note: The data in the table are for reference only. AAREAL reserve the right to modify the above data.
Application of Stainless Steel Linear Vibrating Screen for Separating Sifting Chemical Products:
1. Chemical Industry: colophony, industry leechdom, cosmetic, paint.
2. Food Industry: sugar,flour,amylum, rice powder,milk powder, soyabean milk, angel cake,juice,sauce,spice,salt,starch.
3. Grinding Materials And china Industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust.
4. Metallurgy, Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate.
5. Pharmacy Industry: chinese herbal medicine liquid, medicine powder, liquid and particle.
6. Paper-Making Industry: dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling.
