|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Moving Track:||Three-dimensional Movement||Machine Size:||400mm~2000mm|
|Surface Treatment:||Paint, Sandblast, Powder Coating, Mirror Finish, Etc.||Layers Of Screen:||1~5 Layers Of Screen (suggest 1~3 Layers)|
|Screen:||Perforated Plate, Woven Wire Mesh, Grizzly Bar Etc.||Mesh De-blinding:||Ultrasonic, Bounce Balls, Rotary Brush System Etc.|
|Screen Frame:||Bolt Insert Type, Adhesive Type, Ultrasonic Type Etc.||Purpose:||Grading, Solid-separation, Emove The Impurity Etc.|
Rotary Vibrating Screen With Bevel Bottom,
Customized Ultrasonic Rotary Vibrating Screen,
ultrasonic vibrating screen With Bevel Bottom

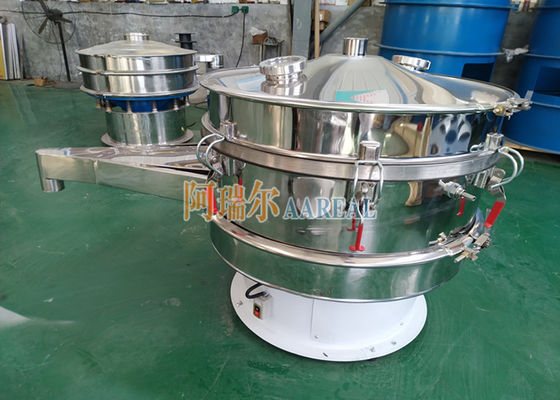

Special Customized Stainless Steel Ultrasonic Rotary Vibrating Screen With Bevel Bottom
Introduction of Special Customized Stainless Steel Ultrasonic Rotary Vibrating Screen With Bevel Bottom:
Special Customized Stainless Steel Ultrasonic Rotary Vibrating Screen With Bevel Bottom is designed as a high-precision screening machine. Diameter also can be made from 400mm to 2000mm, with single or multiple screen decks (suggest 1~3 layers), material can be total carbon steel, total stainless steel or only contact part stainless steel according to different product and requirement.
Structure of Special Customized Stainless Steel Ultrasonic Rotary Vibrating Screen With Bevel Bottom:
The circular rotary vibrating sieve is made up of dust proof cover, screen frame, vibrating body, inlet and outlet ports, spring buffer, base, vibrating motor, upper and lower heavy hammer, clamp ring,and other parts. The exciting force will generate by the rotation of vibrating motor.
Some Information You May Care About Special Customized Stainless Steel Ultrasonic Rotary Vibrating Screen With Bevel Bottom:
|Machine Shape||round shape|
|Screen Decks||1~5 layers of screen with 2~6 discharge ports (outlets), suggest 1~3 layers|
|Mesh Size||above 325 mesh (according to the materials)|
|Screen Frame/Holder||adhesive type, L type (bolt insert type), ultrasonic type (transducer internal and external), flange type etc.|
|Mesh De-blinding System||bouncing balls (with ball decks, rubber balls, silicone balls etc.), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and mirror polish, powder coating etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Moving Trajectory||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement (sufficient power), explosion proof motor optional|
|Motor Brand||AAREAL Made, Italvibras, OLI-WOLONG etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
stainless steel woven wire mesh screen, perforated plate, bounce balls, clamps, springs, sealing rubber strip, verticle vibrating motor etc.
|Optional Design||collecting tray, discharge gate, magnetic guard, quick release clamp, glass viewing port etc.|
|Work Level||general grade, food grade, pharmaceutical grade etc.|
Purpose of Special Customized Stainless Steel Ultrasonic Rotary Vibrating Screen With Bevel Bottom:
Grading Solid-liquid Separation Impurity Removal
1. Grading: Granules and powder accurate classification
2. Solid-liquid separation: Remove granules foreign matter in the liquid
3. Impurity Removal: Remove the foreign matter or agglomerate
Features and Features of Special Customized Stainless Steel Ultrasonic Rotary Vibrating Screen With Bevel Bottom:
1. Totally enclosed structure, never jam, no powder flying, the powder size can be separated between 500 mesh and 0.028 mm.
2. Replace mesh, operate and wash easily.
3. Discharge the impurity and coarse automatically and works continuously.
4. High efficiency, reasonable design, suitable for any powders and mucilage.
5. Small volume, move easily.
6. The highest layers of the screen can be reached 5 layers. But 3 layers are suggested.
7. Unique screen frame design, wearable screen mesh, just 3-5min needed to replace the screen mesh.
Working Principle of Special Customized Stainless Steel Ultrasonic Rotary Vibrating Screen With Bevel Bottom:
The gyro vibrating screen has vertical type motor as excitation source, and the motor has eccentric block at both the top and bottom which makes the rotating of motor convert horizontal, vertical and inclined three- dimensional motion. Then the motor pass the motion into screen mesh and make the material diffuse outward gradually. Because of that, we call it round vibrating screen machine. The round vibrating screen has the advantage of long running track and high-usage screen. Adjust the phase angle of eccentric block can change the motion track to separate the material precisely.
After starting, the eccentric block at the top and bottom of motor will generate a composite inertial force which force the screen rotary moving. The vibrating screen frame make reciprocating motion continuously under the shaking of motor and forward the screen mesh move cycling. The material on screen mesh made directional movement with screen box. In the process of moving, the material smaller than mesh size pass the mesh and fall to the under layer which called undersize, and the material bigger than mesh size separated through outlet, then the separating is completed. The function and running track of round vibrating screen as follows.
Technical Parameters of Special Customized Stainless Steel Ultrasonic Rotary Vibrating Screen With Bevel Bottom:
|Model||Power||Screen Surface Diameter||Effective Screen Area (sqm)||Decks|
Note: our company reserve the right to modify the above data.
Overall Dimensions of Special Customized Stainless Steel Ultrasonic Rotary Vibrating Screen With Bevel Bottom:
Application of Special Customized Stainless Steel Ultrasonic Rotary Vibrating Screen With Bevel Bottom:
1. Food industry: soy milk, egg, sugar, milk powder, soy sauce, fruit juice, starch, salt, rice flour.
2. Chemical industry: industrial chemicals, resins, coatings, cosmetics, paints, herbal powder.
3. Metal,Metallurgical Mining: lead powder, ore alloy powder, copper powder, magnetic power, abrasives, refractory, kaolin, limestone, aluminum powder, powder electrodes, manganese dioxide, alumina, calcium carbonate, quartz sand.
4. Other industries: abandoned water, wasted-water dyeing, paper, abandoned oil, chemicals, such as activated carbon.
