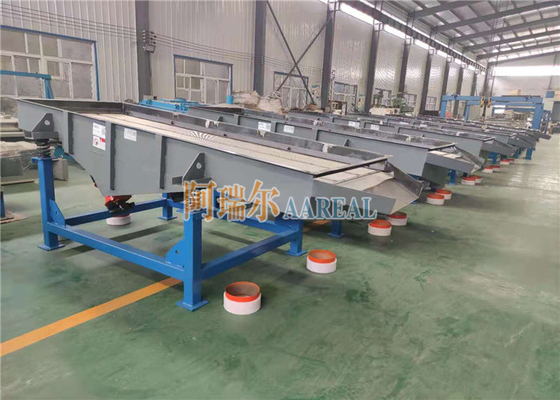

900*3000mm Single-deck Rectangular Linear Vibrating Screen for Sifting PVC Granules
Introduction of 900*3000mm Single-deck Rectangular Linear Vibrating Screen for Sifting PVC Granules:
900*3000mm Single-deck Rectangular Linear Vibrating Screen for Sifting PVC Granules is also widely known as the linear vibrating screen, linear vibrating sieve, rectangular separator, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc.
Linear vibro sifter uses two vibration motors as the vibration source, making the material can be thrown on the mesh, and moving forward as a straight line. The material from the feeder evenly came into the feed port of screening machine, then produced several specifications of upper screening material and bottom screening material through the multi-layer screen mesh, and discharged from their respective exports. With low energy consumption, high output, simple structure, easy maintenance, fully enclosed structure, no dust, scattered, automatic nesting, it is more suitable for assembly line operations.
Features of 900*3000mm Single-deck Rectangular Linear Vibrating Screen for Sifting PVC Granules:
1. High accuracy screening efficiency,simple and stable structure, convenient maintenance;
2. Less energy consumption,lower noise,longer service life;
3. The beam and screen box are connected by high strength blot without welding;
4. Long travel distance for materials on the screen surface, high screening efficiency;
5. Suitable for rough screening with high capacity.
Working Principle of 900*3000mm Single-deck Rectangular Linear Vibrating Screen for Sifting PVC Granules:
The rectangular vibrating separator uses double vibrating motors to be power source. The eccentric blocks driven by the motors could provide centrifugal force, whose component force moves forward along the linear direction. Thus the screen device supported by the spring suspension can move linearly. And the material on it moves forward straightly when tossed upward. When falls into the screen frame again, the material will move forward quickly and penetrate the screen in a fluffy state. Desirable screening performance can be achieved simply by choosing suitable screens for the linear vibrating screen.
Structure of 900*3000mm Single-deck Rectangular Linear Vibrating Screen for Sifting PVC Granules:
The rectangular vibrating sieve machine is composed of screen box, screen mesh, two vibration motors, vibration damping springs, motor pedestal, brackets etc.
1. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Technical Parameters of 900*3000mm Single-deck Rectangular Linear Vibrating Screen for Sifting PVC Granules:
| Model |
Nominal Size (mm) |
Particle Size (mm) |
Leaning Angle of Screen (°) |
Amplitude (mm) |
Layer |
Power (Kw) |
| AZ-520 |
500*2000 |
0.074~10 |
0~7° |
4~10 |
1~6 |
2*(0.4~0.75) |
| AZ-525 |
500*2500 |
2*(0.4~0.75) |
| AZ-530 |
500*3000 |
2*(0.4~0.75) |
| AZ-1020 |
1000*2000 |
2*(0.4~0.75) |
| AZ-1025 |
1000*2500 |
2*(0.4~1.1) |
| AZ-1030 |
1000*3000 |
2*(1.1~1.5) |
| AZ-1040 |
1000*4000 |
2*(1.1~1.5) |
| AZ-1225 |
1200*2500 |
2*(1.1~1.5) |
| AZ-1235 |
1200*3500 |
2*(1.1~2.2) |
| AZ-1250 |
1200*5000 |
2*(1.1~2.2) |
| AZ-1535 |
1500*3500 |
2*(1.1~2.2) |
| AZ-1560 |
1500*6000 |
2*(2.2~3.7) |
| AZ-1845 |
1800*4500 |
0.074~15 |
2*(2.2~3.7) |
| AZ-2050 |
2000*5000 |
2*(2.2~3.7) |
| AZ-2060 |
2000*6000 |
2*(2.2~3.7) |
Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
Important Information About 900*3000mm Single-deck Rectangular Linear Vibrating Screen for Sifting PVC Granules:
| Other Names |
linear vibrating screen, linear vibrating sieve, rectangular separator, inclined vibrating screen, horizonal vibrating screen, rectangular vibrating screen, rectangular sifter, rectangular screener, linear screen etc. |
| Shape |
rectangular shape |
| Motion |
linear motion |
| Structural Composition |
screen box, screen, vibration motor, motor base, damping spring, support etc. |
| Vibrating Motor |
two sets of horizontal vibrating motors, synchronous reverse rotation |
| Applicable Material |
suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7% |
| Screen Surface |
horizontal or inclined (0°~7°) |
| Layers of Screen |
1~6 layers of screen (The more layers can be customized according to the actual situation) |
| Screen Frame |
wooden screen frame, carbon steel screen frame, stainless steel screen frame etc. |
| Mesh Deblinding System |
bouncing balls, ultrasonic system etc. |
| Material |
carbon steel, stainless steel 304/316L, titanium material etc. |
| Screen Size |
screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc. |
| Application |
rock, plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc. |
Application of 900*3000mm Single-deck Rectangular Linear Vibrating Screen for Sifting PVC Granules:
1. Granule pills, pellets, Chinese medicine etc.
2. Granulated sugar, MSG, amino acids, freeze-dried food, coconut granules etc.
3. Activated carbon, glass, paper, fertilizer, sulfuric acid etc.
4. Iron powder, aluminum powder, copper powder, alloy powder, refractory materials, steel shot, aluminium oxide and so on
5. Iron ore tailings, lead and zinc tailings, quartz sand, potassium feldspar dehydration, industrial sewage, coal sludge dehydration, soil restoration etc.
