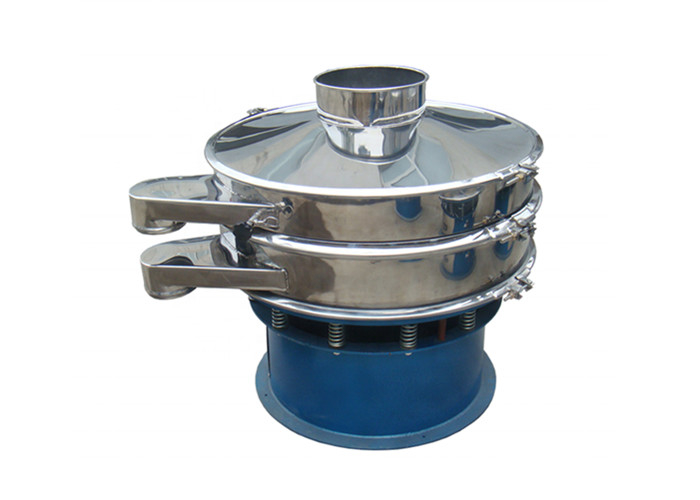

Circular Double Layer Dia 400mm Vibrating Rock Screen

Circular Double Layer Dia 400mm Vibrating Rock Screen

  • Circular Double Layer Dia 400mm Vibrating Rock Screen
Circular Double Layer Dia 400mm Vibrating Rock Screen
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AYC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for export
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Name: Vibrating Rock Screen Diameter: 400mm~2000mm
Shape: Circular Mesh Cleaning Method: Ultrasonic System, Include Ultrasonic Power Supply And Transducer
Power Supply: 220V 50Hz Or 110V 60HZ Etc. Ultrasonic Transducer: Transducer External Or Built-in Type
Drive Device: One Set Of Verticle Vibrating Motor Movement: Three Dimensional Vibration
High Light:

Dia 400mm Vibrating Rock Screen


Double Layer Vibrating Rock Screen


Dia 400mm double deck vibrating screen

Circular Double Layer Dia 400mm Vibrating Rock Screen


Vibrating Rock Screen Introduction


Vibrating Rock Screen is one of précised powder griddle,Low noise, high efficiency, need only 3-5 minutes to rapidly replace the griddle, all closed structure. Used to filter particles, powder and mucilage.


Principle of the structure: vibrated griddle: use upright motor as the source of vibration, equipped ecc-entricity hammer on the both sides of the top and the bottom, change circumrotate to level, upright and slope movement, then pass these three movement to the surface of the griddle.Ad-just the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface griddle.


Differences in Design:


Item Compared External Transducer Built-in Transducer
Installing Form The external transducer is mounted outside the screen frame and the extending part is at the edge of the grid The built-in transducer is fixed directly in the middle of the grid
Cleaning Method Disassembly and cleaning are relatively convenient When cleaning, people need to remove the screen frame, and then lift the grid to clean up
Applicable Materials The external transducer does not have direct contact with the material, so it can protect the transducer effectively, improving the service life, screening accuracy and output

The built-in transducer will contact the material during use.

For some conductive and corrosive materials, contact with the transducer will reduce the service life, and also affect the output frequency, thereby reduce the precision and output.


1200mm Single-layer Stainless Steel Ultrasonic Vibrating Screen for Powder Coating

  Ultrasonic screen frame and ultrasonic system are two key devices of ultrasonic vibrating screen. The ultrasonic vibrating sieve adopts adhesive type screen frame. Then how to glue the screen mesh onto the frame when replacing a new screen?


  ultrasonic screen frameultrasonic screen frame

  The left photo shown above is the use of special tooling to stick the screen to the frame. We can supply people such tool if they ask for it. And the right photo above is the finished Ultrasonic Screen Frame or Screen Holder (transducer external type). In addition, there are transducer built-in type ultrasonic screen frame.

ultrasonic system

AAREAL ultrasonic system consists of generator, transducer, energy conducting ring, connecting nut and connecting wire. Voltage 220V/Single-phase/50HZ, working frequency 35KHz, Max. working current 0.5A.

Circular Double Layer Dia 400mm Vibrating Rock Screen 4

  The motor power for our 1200mm ultrasonic vibrating screen is 1.5KW, sufficient power. We will not use false motor power to deceive our customers.


Overview of Ultrasonic Vibrating Screen for Powder:

  Ultrasonic vibrating screen is also called ultrasonic separator, ultrasonic vibrating sieve, ultrasonic sieve deblinding system, ultrasonic screener, ultrasonic screen separator etc.

  Ultrasonic vibrating screen solves the screening problem of materials with strong adsorption, easy agglomeration, strong viscosity, high static electricity, high density, super fine powder etc. The screening accuracy can be increased by 1~100%, and the output can be increased by 1~10 times, really meeting the industrialization production of 100 mesh ~500 mesh and above.

  It can be installed in various kinds of screening machines, such as ultrasonic test sieve shaker, ultrasonic round separator, ultrasonic rectangular separator, ultrasonic tumbler screen, ultrasonic airflow centrifugal screen, ultrasonic gyratory screen and so on.


Ultrasonic Screening System of Ultrasonic Vibrating Screen for Powder:

The core technical components of ultrasonic vibrating screen is the ultrasonic screening system, and the ultrasonic screening system is divided into ultrasonic power supply and transducer.


(1) Ultrasonic Control Power Supply:

Power Supply: 220V 50Hz or 110V 60HZ

Working Frequency: 36KHZ

Operating Mode: continuous/pulse

Intensity Adjustment: 50~100%


(2) Ultrasonic Transducer:

  The ultrasonic transducer is very important in the ultrasonic system. Different transducers have quite different prices. The ultrasonic transducers imported from Switzerland are more expensive. But the quality is very good.

  There are two kinds of installation form of ultrasonic transducer. One is built-in transducer design, and the other is the external transducer design.

Circular Double Layer Dia 400mm Vibrating Rock Screen 5

         Ultrasonic External Transducer                             Ultrasonic Built-in Transducer
