| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AY |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for export |
| Delivery Time: | 20~30 work days after receiving the advanced payment |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |
| Name: | Rotary Vibrating Screen | Diameter: | 1000mm |
|---|---|---|---|
| Movement: | 3D Motion | Material: | Contact Part Stainless Steel 304 |
| Screen Frame: | L Type, Double Screens | Usage: | Iron Powder Resin Pigment |
| Motor: | One Set Of Verticle Vibrating Motor | Motor Power: | 1.1KW |
| High Light: | SS304 Rotary Vibrating Screen,Resin Pigment Rotary Vibrating Screen,SS304 rotary vibrating sieve |
||

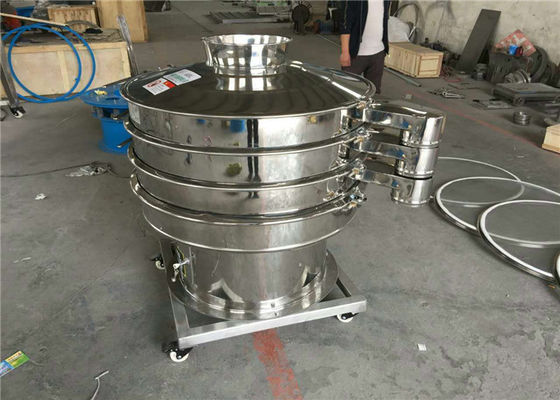

Iron Powder Resin Pigment SS304 Rotary Vibrating Screen
Note:
(1) The buffer inlet design can effectively reduce the impact of materials on the screen surface.

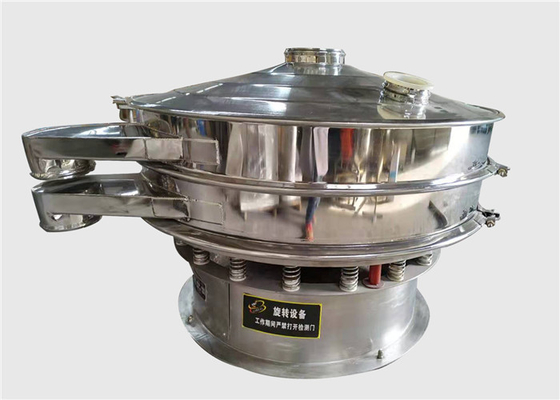

(2) The photo showed above is used for screening iron powder, mesh size 100 mesh, 200 mesh, 325 mesh.
And these rotary vibro screen has only one layer of screen with 2 discharge ports.
(3) Our clients usually ask for total carbon steel for the sieve machine. But this client require contact part stainless steel 304. He may consider a longer service time. So users can choose suitable materials according to their own requirements.
Important Information You May Concern About Rotary Vibrating Screen
| Shape | round (or circular) |
| Layers of Screen | 1~5 screen decks (special layers can be customized) |
| Mesh Size | above 400 mesh |
| Screen Frame | L type (screw riveting), adhesive type, ultrasonic type etc. |
| Mesh Cleaning Method | bouncing balls (rubber balls, silicone balls, polyurethane balls etc.), ultrasonic system, rotary brush system etc. |
| Diameter | 400mm, 500mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm |
| Material | carbon steel, stainless steel 304, 316L etc. |
| Function | grading, solid-separation, remove the impurity etc. |
| Movement | three dimensional vibration motion (3-D motion) |
| Damping Spring | galvanized steel spring, stainless steel spring, rubber spring etc. |
| Motor | one set of vibrating motor, horizontal installation |
| Motor Brand | AAREAL made, other China made, OLI-WOLONG etc. |
The general characteristics of the vibrator adjustment are described below:
Structure Diagram of Stainless Steel Rotary Vibrating Screen for Iron Powder:
Features of Rotary Vibrating Screen
1. Up to 5 times output per unit area; accurately to 6 Level separation, sieving efficiency is higher than 95%.
2. We use excellent silicon rubber balls ,ultrasonic wave or rotating brush for cleaning sieving mesh. No mesh blocking.
3. Acceleration is five times less than the normal vibrating screen. Spare parts will have longer life. Thus reduce the maintain cost.
Basic Function of Rotary Vibrating Screen
1. Grading
Each model of vibrating sieve machine can precisely and continuously screen and separate screened products, the multi—layer type can screen and separate five groups of different particles at a time. It is suitable for dry materials.
2. Solid-liquid separation
The mixture of solid and liquid can be separated effectively by single or multi-layer type into different grade materials.
3. Remove the impurity
The model can quickly separate a few oversize or undersized particles from a quantity of materials.
Technical Parameters of Stainless Steel Rotary Vibrating Screen for Iron Powder:
| Model | Power | Screen Surface Diameter | Effective Screening Area (m2) | Layers |
| AY-400 | 0.18 KW | 350mm | 0.0962 | 1~3 |
| AY-600 | 0.25 KW | 550mm | 0.2375 | 1~3 |
| AY-800 | 0.55 KW | 750mm | 0.4416 | 1~3 |
| AY-1000 | 0.75 KW | 920mm | 0.6644 | 1~3 |
| AY-1200 | 1.1 KW | 1120mm | 0.9847 | 1~3 |
| AY-1500 | 1.5 KW | 1420mm | 1.5829 | 1~3 |
| AY-1800 | 2.2 KW | 1720mm | 2.3223 | 1~3 |
| AY-2000 | 3.0 KW | 1920mm | 2.89 | 1~3 |
Overall Dimensions of Stainless Steel Rotary Vibrating Screen for Iron Powder:
| Model | A | B | C | D | E | F | G | I | Single Layer Height | Double Layer Height |
Three Layer Height |
| AY-400 | 472 | 372 | 150 | 400 | 110 | 60 | 300 | 270 | 550 | 660 | 770 |
| AY-600 | 570 | 450 | 200 | 600 | 120 | 80 | 380 | 340 | 730 | 865 | 1000 |
| AY-800 | 690 | 570 | 200 | 800 | 130 | 100 | 550 | 340 | 730 | 865 | 1000 |
| AY-1000 | 810 | 690 | 250 | 970 | 150 | 120 | 650 | 400 | 790 | 925 | 1060 |
| AY-1200 | 970 | 850 | 250 | 1170 | 180 | 130 | 760 | 450 | 860 | 1025 | 1190 |
| AY-1500 | 1180 | 1060 | 250 | 1470 | 200 | 140 | 950 | 480 | 985 | 1180 | 1370 |
| AY-1800 | 1480 | 1360 | 350 | 1770 | 220 | 150 | 1110 | 520 | 1030 | 1220 | 1410 |
