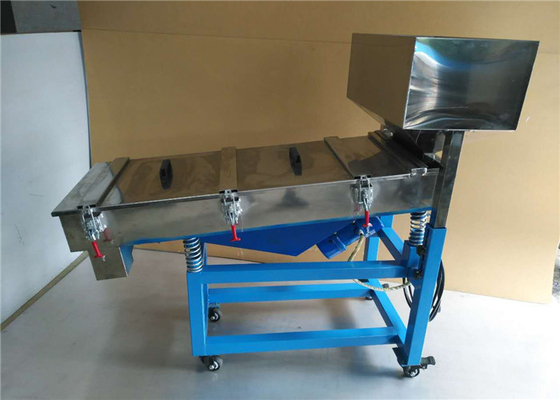

Silica Sand 100TPH 1.62M2 Linear Vibrating Screen

Silica Sand 100TPH 1.62M2 Linear Vibrating Screen

  • Silica Sand 100TPH 1.62M2 Linear Vibrating Screen
Silica Sand 100TPH 1.62M2 Linear Vibrating Screen
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts
Delivery Time: 20~30 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Features: Rubber Spring Supports And Isolates Vibration, Large Capacity, High Screening Efficiency Name: Linear Vibrating Screen
Drive Device: Double Horizontal Vibrating Motor Or Vibration Exciter Purpose: Mainly Used For Intermittent Operating Condition Or Small Capacity Of Screening Operation
Type: Open Type, Closed Type (optional) Application: Silica Sand ,sintering Carbon, Natural Ore, Coke And Abrasives, Chemical Raw Materials And Other Powder And Particle Material Of Highly Efficient Screening, And Dewatering, Medium-removal And Coal Dressing Operation
High Light:

1.62M2 Linear Vibrating Screen


100TPH Linear Vibrating Screen


100TPH linear motion vibrating screen

 Silica Sand 100TPH 1.62M2 Linear Vibrating Screen


Introduction of Linear Vibrating Screen


Linear vibrating screen is a standard and universal screening equipment.

The movement track of its screen box is close to straight line. Almost all the linear vibrating machine are consisted of the screen box, supporting or hanging device, driving unit, vibration isolation etc.


Working principle of Linear Vibrating Screen


linear vibration screen use vibration motor as vibration source, the materials are rose and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different outlet.


Main Features of Linear Vibrating Screen


1. Small volume, light weight, easy to install and processing set-up;

2. Adopt energy saving vibration motor or vibrator as vibration source;

3. Rubber spring supports and isolates vibration, large capacity, high screening efficiency;

4. The screen is assembled by the standard small pieces. Replacement is extremely convenient.


Open Type (ZSG-□×□): It is seat-type and no dust cover plate structure. Used for big screening capacity and no dust pollution of particle material screening.

Closed Type (ZSGB-□×□): It is seat-type and complete close structure. Used for big screening capacity and dust pollution of particle material screening.


Parameters of Linear Vibrating Screen



Feeding Size




Vibration Motor





Vibration Frequency


Double Amplitude


Effective Screening Area




Single Support Dynamic Load


ZSGB-09×18 ≤250 10-100 YZO-17-4 380 0.75*2 25 5-7 1.62 1960 900
ZSGB-10×20 10-180 YZO-20-6 2.0*2 16 6-8 2.0 2830 1300
ZSGB-12×24 10-200 YZO-30-6 2.5*2 2.88 3120 1620
ZSGB-10×30 15-250 YZO-30-6 2.5*2 3.0 3350 1850
ZSGB-15×30 20-350 YZO-50-6 3.7*2 4.5 4510 2810
ZSGB-15×40 30-500 YZO-75-6 5.5*2 6.0 5670 4650
ZSG2B-10×20 10-180 YZO-20-6 2.0*2 2.0 3170 1300
ZSG2B-12×24 10-200 YZO-30-6 2.5*2 2.88 3640 1620
ZSG2B-10×30 15-250 YZO-50-6 3.7*2 3.0 3870 1850
ZSG2B-15×30 20-350 YZO-50-6 3.7*2 4.5 5230 2810
ZSG2B-15×40 30-500 YZO-75-6 5.5*2 6.0 6630 4650
Note: the capacity in the table above shows the theoretical parameters when sieve mesh is more than 5mm and proportion is 1.6t/m3.


High Efficiency Heavy Duty Linear Vibrating Screen Equipped with Vibration Exciter:

Model ZSGB-15×30 ZSGB-15×40 ZSGB-15×50
Screening Ability Particle Size (mm) ≤300 ≤300 ≤300
Capacity (t/h) 20~280 20~300 20~380
Motor Y132M1-6 Y132M2-6 Y132M2-6
Voltage (V) 380 380 380
Power (KW) 4.0*2 5.5*2 5.5*2
Vibration Frequency (Hz) 16 16 16
Double Amplitude 5~8 5~10 5~10
Vibration Exciter WJZZ-100-6 WJZZ-120-6 WJZZ-150-6
Ref. Weight (kg) 4800 5900 6700


Silica Sand 100TPH 1.62M2 Linear Vibrating Screen 0
