|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C, Western Union, MoneyGram|
|Supply Ability:||20 sets per month|
|Name:||Powder Vibrating Screen, Rotary Vibrating Screen, Rotary Vibro Screen, Vibro Sifter||Moving Track:||Three-dimensional Motion|
|Mesh Cleaning System:||Bounce Balls, Ultrasonic System, Rotary Brush System Etc.||Machine Diameter:||400mm~2000mm|
|Layers Of Screen:||1~5 Layers (suggest 1~3 Layers)||Surface Finish:||Mirror Finish, Paint, Sandblast, Etc.|
|Sieve Mesh:||Perforated Plate, Woven Wire Mesh, Grizzly Bar Etc.||Vibrating Motor:||Verticle Arrangement, Sufficient Power, Explosion Proof Optional|
SUS316 Rotary Vibrating Screen,
800mm Rotary Vibrating Screen,
800mm vibrating grizzly screen

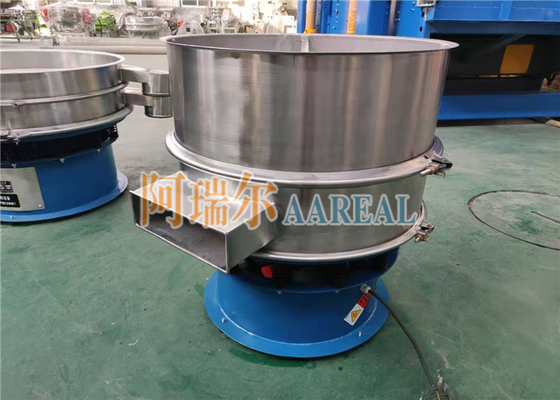

Introduction of 800mm Stainless Steel Rotary Vibrating Screen for PVC Industry:
800mm Stainless Steel Rotary Vibrating Screen for PVC Industry is designed as a high-precision screening machine. It is also known as the vibro sifter, vibro shifer, vibro screen, gyro screen, round separator, circular vibrating screen, circular vibrating sieve, rotary vibrating screen, rotary vibrating sieve, etc. This kind of round vibro sieve is composed of a upper cover, a screen box, a base and a vertical motor with eccentric weight installed at two ends.
Purpose of 800mm Stainless Steel Rotary Vibrating Screen for PVC Industry:
Grading Solid-liquid Separation Impurity Removal
1. Classification: Granules/powder accurate classification
2. Filtration: Remove granules foreign matter in the liquid
3. Removal impurity: Remove the foreign matter or agglomerate
Application of 800mm Stainless Steel Rotary Vibrating Screen for PVC Industry:
1. Chemical industry: PVC powder, resin, pigment, rubber, industrial medicine, cosmetic, coatings, etc.
2. Ceramic and abrasive: Alumina, quartz sand, mud etc.
3. Metal, metallurgy and mining industry: Aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, electrolysis copper powder, electromagnetism materials, manganese dioxide, grinding powder, fire-resistant material, lime, heavy calcium carbonate, alumina, etc.
4. Food industry: Sugar powder, starch, egg powder, sauce, salt, rice noodles, milk powder, soybean milk, syrup, etc.
5. Social pollution disposed: Disposed oil, disposed water, disposed dye water, assistant, active carbon.
6. Pharmacy profession: western medicine powder, liquid, Chinese herbal medicine, particle, etc.
7. Paper making: Paper pulp, paint, wasted water recycling.
Some Information You May Care About 800mm Stainless Steel Rotary Vibrating Screen for PVC Industry:
|Layers of Screen||1~5 layers of screen with 2~6 discharge ports (suggest 1~3 layers)|
|Mesh Size||above 325 mesh (according to the materials)|
|Screen Frame||bolt insert type, adhesive type, ultrasonic type (transducer internal and external), flange type etc.|
|Bottom Frame||cone shape, or bevel shape, optional|
|Self-cleaning System||mesh cleaning balls (with ball decks, rubber balls, silicone balls etc.), ultrasonic de-blinding system, rotary brush system etc.|
|Diameter||400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm|
|Material||stainless steel 304, 316L, carbon steel, plastic materials etc.|
|Surface Treatment||Paint, sandblast and mirror polish etc.|
|Function||solid-separation, grading, remove the impurity etc.|
|Movement||three dimensional vibration motion|
|Damping Spring||carbon steel spring, stainless steel spring, air spring, rubber spring etc.|
|Motor||one set of vibrating motor, verticle arrangement (sufficient power), explosion proof optional|
|Motor Brand||AAREAL Made, OLI-WOLONG, Italvibras etc.|
|APO Safety System||Automatic Power Off Safety System is integrated in the motor|
stainless steel woven wire mesh screen, perforated plate, bounce balls, clamps, springs, sealing rubber strip, verticle vibrating motor etc.
|Optional Design||collecting tray, discharge gate, magnetic guard, quick release clamp, glass viewing port, etc.|
|Work Level||general grade, food grade, pharmaceutical grade etc.|
Structure of 800mm Stainless Steel Rotary Vibrating Screen for PVC Industry:
The rotary vibro screen is made up of spring buffer, base, upper and lower heavy hammer,vibrating motor, screen frame, clamp ring,vibrating body, inlet and outlet port, dust proof cover and other parts. The exciting force will generate by the rotation of vibrating motor.
Working Principle of 800mm Stainless Steel Rotary Vibrating Screen for PVC Industry:
The basic working principle of rotary vibration sieve machine is the heavy hammer (unbalanced heavy hammer) installed in the electrical axis transform the motor's rotary motion into horizontal, vertical, and inclined three dimensional movement, then this movement passed to the screen surface. By adjusting the upper and lower ends of heavy hammer's phase angle, which can change the moving track of materials on the screen surface.
Characteristics of 800mm Stainless Steel Rotary Vibrating Screen for PVC Industry:
1. With a simple and functional design – This makes it run with sustained efficiency. It is also easier to use and has a higher capacity. Further, it is designed so that it can run with minimal supervision. It has a low-maintenance structure.
2. Creates lower noise and covers a minimal floor space. Also, it is lightweight and can easily be transferred using a pallet jack or forklift. Now, it really comes in handy, right?
3. Lower energy compared to conventional equipment – It does not sacrifice output quality. It not only generates premium outputs but also contributes to minimizing environmental damage.
4. It can work on its own for long hours – It does not entail much manual attention. In other words, its high durability makes it run with minimal supervision.
5. It has superb anti-binding properties – It helps to prevent screen clog neatly. Unlike other equipment, it does not create dust clouds as it operates. Like a robot, it has an automatic capacity to discharge separated materials.
6. It contains up to 5 layes of screen per unit – This makes it capable of conducting multiple operations with just a single unit; This is another feature which makes it cost effective. Moreover, its screen can easily be adjusted or changed in five minutes. Now, that’s quick enough.
7. The circular vibro sifter is made up of stainless steel, including all its contact parts – Even better, it can be fully or partially upgraded to SS316. This is to meet arising needs/demands. Likewise, it has various sizes and available modification schemes to suit all types of materials. Among these are different forms of powder and liquid.
Technical Parameters of 800mm Stainless Steel Rotary Vibrating Screen for PVC Industry:
|Model||Power||Screen Surface Diameter||Effective Screen Area (sqm)||Decks|
Note: our company reserve the right to modify the above data.
Overall Dimensions of 800mm Stainless Steel Rotary Vibrating Screen for PVC Industry:
