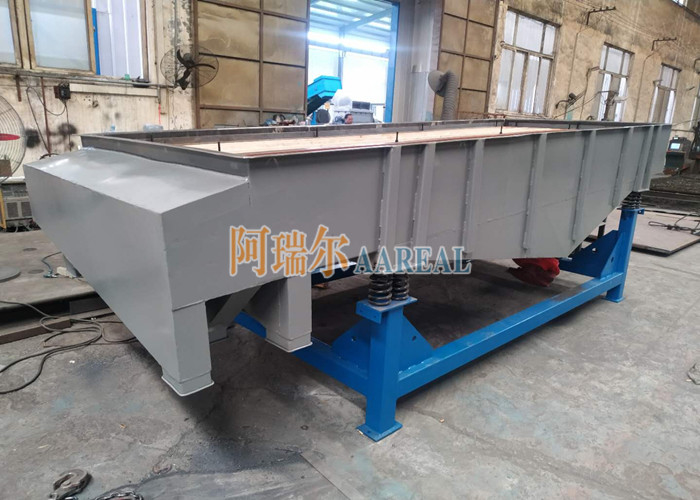

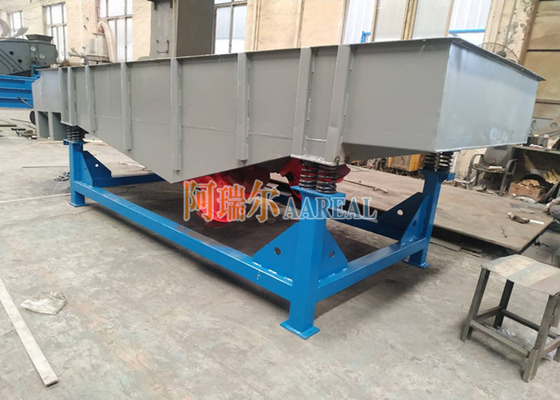

Overview of Multi-deck Rectangular Linear Vibrating Screen Equipment for Sieving Peppermint Mint Herbal:
The Multi-deck Rectangular Linear Vibrating Screen Equipment for Sieving Peppermint Mint Herbal is an high efficient new screening equipment, which can be widely used in mining, building materials industry, coal, metallurgy etc. It is also known as the linear vibrating screen, rectangular separator, horizonal vibrating screen, rectangular vibrating sieve, rectangular sifter, rectangular screener, linear screen etc.
This linear vibrating sieve use two units of horizontal vibrating motors as the power source, so that the material to be screened was tossed in the sieve, while forward in a straight line into the screening machine’s discharging outlet. It can be supplied of different sizes depending on capacity required. And it can be supplied of multi-layer as requirements of screening aim. Inlets, outlets and legs can be customized to fit your installation requirements.
The linear vibrating screen can be made upto 6 layers of screens. Please notice that generally speaking, one layer of screen has 2 outlets, 2 layers have 3 outlets, 3 layers have 4 outlets, and so on. And for composite screening, multiple screens with the same mesh can be allowed to share one outlet or discharge port.
Technical Parameters of Multi-deck Rectangular Linear Vibrating Screen Equipment for Sieving Peppermint Mint Herbal:
| Model |
Nominal Size (mm) |
Particle Size (mm) |
Leaning Angle of Screen(°) |
Amplitude (mm) |
Layer |
Power (Kw) |
| AZ-520 |
500*2000 |
0.074~10
(above 200 mesh)
|
0°~7° |
4~10 |
1~6 |
2*(0.4~0.75) |
| AZ-525 |
500*2500 |
2*(0.4~0.75) |
| AZ-530 |
500*3000 |
2*(0.4~0.75) |
| AZ-1020 |
1000*2000 |
2*(0.4~0.75) |
| AZ-1025 |
1000*2500 |
2*(0.4~1.1) |
| AZ-1030 |
1000*3000 |
2*(1.1~1.5) |
| AZ-1040 |
1000*4000 |
2*(1.1~1.5) |
| AZ-1225 |
1200*2500 |
2*(1.1~1.5) |
| AZ-1235 |
1200*3500 |
2*(1.1~2.2) |
| AZ-1250 |
1200*5000 |
2*(1.1~2.2) |
| AZ-1535 |
1500*3500 |
2*(1.1~2.2) |
| AZ-1560 |
1500*6000 |
2*(2.2~3.7) |
| AZ-1845 |
1800*4500 |
0.074~15 |
2*(2.2~3.7) |
| AZ-2050 |
2000*5000 |
2*(2.2~3.7) |
| AZ-2060 |
2000*6000 |
2*(2.2~3.7) |
Note: The above data are for reference only. We reserve the right to modify the above data.
Features of Multi-deck Rectangular Linear Vibrating Screen Equipment for Sieving Peppermint Mint Herbal:
1. High capacity and Friendly working space
With excellent structuer of machine and motors, the output is very high and working noise is low.
2. High sieving precision
The material has a long stroke on the screen surface, high screening accuracy and large processing capacity.
3. Movable screening process
At the same time of screening, the material has been transported over long distances.
4. Easy to repace screen and parts
Using a special screen structure design, the screens and parts can be easily changed and tighten.
5. Suitable for different screening sizes
Change the screen spacing and inclination according to material size, permeability probability and productivity
6. Flexible machine structures
Different shapes and structures can be designed according to the production site.
7. Good sealing and minimal dust spillage
Fully enclosed structure, automatic discharge lead to nearly zero rate of dust spillage.
8. Low maintenance cost and long service time
All parts of the screen body are welded properly with excellent steel plates,and the overall rigidity is good, firm and reliable for very long time.
Important Information About Multi-deck Rectangular Linear Vibrating Screen Equipment for Sieving Peppermint Mint Herbal:
| Shape |
rectangular shape |
| Movement |
linear vibration movement |
| Structural Composition |
screen box, screen (or sieve), vibration motor, motor base, damping spring, support (or stand) etc. |
| Vibrating Motor |
two sets of horizontal vibrating motors, synchronous reverse rotation |
| Applicable Material |
suitable for sieving 0.074mm~10mm (above 200 mesh) non-sticky materials with moisture content less than 7% |
| Screen Surface |
horizontal or inclined |
| Layers of Screen |
1~6 layers of screen (can be designed according to the client's requirement)
|
| Screen Frame |
wooden screen frame, carbon steel screen frame, stainless steel screen frame, end-tension screen type |
| Mesh Cleaning Method |
rubber balls, ultrasonic system etc. |
| Material |
carbon steel, stainless steel 304/316L, titanium material etc. |
| Screen Size |
screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc. |
| Voltage |
3-phase, 50/60HZ, 380V, 415V, 575V etc. |
Working Principle of Multi-deck Rectangular Linear Vibrating Screen Equipment for Sieving Peppermint Mint Herbal:
The rectangular separator uses double vibrating motors to be power source, when two motors synchronous reversely rotate, exciter forces eccentric block generates are undone in parallel with the direction of motor axis and unite as one across the motor axis direction, so its movement trajectory is linear. There is an angle of inclination two motor axis relative to screen deck, under the influence of exciter force and materials self weight,materials are threw up to make saltatory and linear movement forward on the screen deck in order to screen and grade the materials. Applied in flowing line to achieve automatic operation.
Screen Structure of Multi-deck Rectangular Linear Vibrating Screen Equipment for Sieving Peppermint Mint Herbal:
Wooden Screen Frame Carbon Steel and Stainless Steel Screen Frame
End-tension Screens Type Screen Frame
Application of Multi-deck Rectangular Linear Vibrating Screen Equipment for Sieving Peppermint Mint Herbal:
Foodstuffs industry: Sugar, salt, alkali milk, powder, soybean milk, yeast etc.
Pharmacy: Chinese medicine powder, western medicine powder etc.
Chemical industry: Resin, powder, paint, fine powder, soda, citric acid etc.
Ceramic industry: Alumina, quartz sand, slurry, glaze and pigment etc.
Metallurgy: Metal powder, welding rod powder etc.
Paper making industry: Black and white liquid paper, pulp, waste water recycle etc.
Pollutant treatment: Rubbish waste, oil animal, droppings etc.
Structure of Multi-deck Rectangular Linear Vibrating Screen Equipment for Sieving Peppermint Mint Herbal:
Rectangular vibrating separator is mainly composed of screen box, sieve mesh, vibration motors, motor pedestal, damping spring and brackets etc.
1. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is woven wire mesh or perforated plate. The overall stiffness is good, solid and reliable.
3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
6. Brackets: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
