|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for export|
|Delivery Time:||20~30 work days after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||10 sets per month|
|Features:||The Fine Material Discharge Port Is Designed At The Bottom Of The Machine||Other Names:||Flow-thru Separator, Compact Sieve, Check Screening Machine, Safety Screener, Control Sieve, Inline Vibrating Sieve Etc.|
|Machine Shape:||Round||Machine Diameter:||1500mm|
|Layers Of Screen:||Single Layers Of Screen||Driving Device:||2 Horizontal Vibrating Motor|
|Mesh Debling System:||Bouncing Balls ( Silicone Balls)||Power:||0.75KW * 2 Sets|
|Voltage:||380V, 3-Phase, 50HZ (or According To The Client's Requirement)||Purpose:||Suitable For Materials Safety Screening With Less Oversize Particles|
1500mm circular vibrating screen,
0.75kw circular vibrating screen,
1500mm round vibrating screen

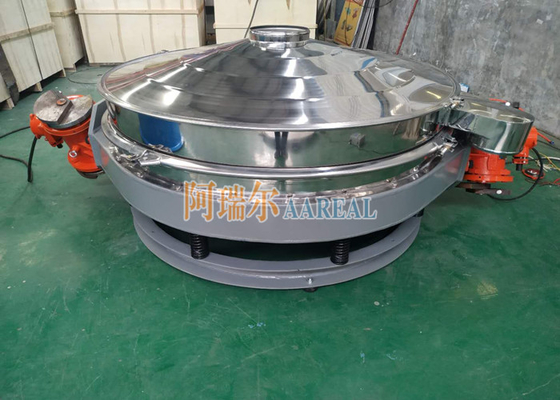

Product Introduction of 1500mm Stainless Steel Circular Flow-thru Inline Vibrating Screen For Cement Powder:
1500mm Stainless Steel Circular Flow-thru Inline Vibrating Screen For Cement Powder is a powerful high-efficient machine that compacts high capacity scalping for both wet and dry materials. This new type of machine consists of a low headroom design and two motors connected on the opposite sides of its body, which creates a three-dimensional kind of motion. It will allow the material to flow through with maximum vibration. Also, it is widely used as a sieving machine in manufacturing products such as instant noodles.
The flow-thru separator is made to be versatile, but it is mostly used for prepackaging products for the food and pharmaceutical industries. It can also be used to unload bulk bags and evaluate raw ingredients which will then be used for later production.
Function of 1500mm Stainless Steel Circular Flow-thru Inline Vibrating Screen For Cement Powder:
This type of vibrating separator is used to remove foreign particles from desired material, removal of lumps from powder, separate different size of material, separation of oversize from screened material, especially for flour powder. So it is also known as the flour sifter.
Some Important Information You May Concern About 1500mm Stainless Steel Circular Flow-thru Inline Vibrating Screen For Cement Powder:
|Alternative Name||flow-thru separator, compact sieve, check screening machine, safety screener, control sieve, inline vibrating sieve etc.|
|Motor||single vibrating motor, dual vibrating motors (optional)|
|Height||500mm or less (such as 350mm)|
|Mesh Debling System||silicone balls, ultrasonic deblinding system etc.|
|Screen Decks||1~2 layers of screens|
|Diameter||600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm etc.|
|Discharge Port||the discharge port for Fine particles are at the bottom of the machine|
|Purpose||suitable for materials safety screening with less oversize particles|
|Machine Shape||round, rectangular|
|Damping Spring||steel spring, rubber spring etc.|
Working Principle of 1500mm Stainless Steel Circular Flow-thru Inline Vibrating Screen For Cement Powder:
There are two power arrangement modes for the inlinear low-profile flow-thru vibrating separator: single motor and double motors.
The single motor type adopts single horizontal vibration motor, simple and convenient.
The double motor type is driven by two horizontal vibration motors, which produce three-dimensional vibration. It not only makes the material more evenly distributed, but also removes large particles, keeping the screen surface clean and smooth. And the screening effect is better. The low profile flow-thru separator can produce excitation force through the motor vibration. People can change the exciting force by adjusting the motor phase angle at both ends of the eccentric hammer weight, which can effectively change the material trajectory, extending the material stay time on the screen surface.
Application of 1500mm Stainless Steel Circular Flow-thru Inline Vibrating Screen For Cement Powder:
The low-profile flow-thru vibrating sieve is widely used in screening granules and powders, which is suitable for single-deck sieving and screening on raw materials of small production of fewer impurities, such as flour, starch, detergent, metal powder, additive, chemicals, non-mining industries etc.
Features of 1500mm Stainless Steel Circular Flow-thru Inline Vibrating Screen For Cement Powder:
1. Simple structure, less blocking, automatic cleaning block network device.
2. Provides you with quality assured, contaminant free product.
3. Additional parts, like the mobile wheel, removing-dust hole and noise-proof base, can be easily fixed and maintained.
4. No special requirements for equipment foundation, general cement floor can be used directly.
5. Screening ability and scope, there are advantages other screening machines cannot reach.
6. Beam is connected to the main body with bolts, has the feature of high strength.
7. To speed up the reunion and separation of content, thus increasing dry weight, reduce the number of large particles.
Technical Parameters of 1500mm Stainless Steel Circular Flow-thru Inline Vibrating Screen For Cement Powder:
Note: the data above are for reference only, and our company reserves the right to modify the data.
Some Kinds of Stainless Steel Circular Flow-thru Inline Vibrating Screen For Cement Powder:
Contact Person: Ms. Magie
Alternative Name: flo-thru sifter, flow-thru separator, compact sieve, safety screeners, control sieves, low-profile vibrating sieve, low profile separator, inline vibrating screen etc.
Machine Diameter: 400mm~2100mm
Layers of Screen: 1~2 screen layers
Purpose: suitable for eliminating oversized materials rapidly from powders and liquids
Advantages: large capacity, short height, compact design, fast screen replacement etc.
Purpose: suitable for eliminating oversized material rapidly from powders and liquids
Machine Diameter: 600m~2100mm
Layers of Screen: 1~2 decks (multiple screen decks can be customized according to the specific situation)
