Place of Origin: | China |
Brand Name: | AAREAL |
Certification: | ISO9001:2015 |
Model Number: | AX |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Fumigation-free plywood wooden case for export |
Delivery Time: | 20~30 work days after order confirmed |
Payment Terms: | T/T, L/C |
Supply Ability: | 20 sets per month |
Machine Diameter: | 400mm~2100mm | Purpose: | Suitable For Materials Safety Screening With Less Oversize Particles |
---|---|---|---|
Layers Of Screen: | 1~3 Layers Of Screen (screen Decks) | Material: | Contact Parts Stainless Steel 304, 316L Etc. |
Damping Spring: | Steel Spring, Rubber Spring Etc. | Advantages: | High Capacity, Compact Design, Low Height, Fast Screen Replacement Etc. |
Motor: | Single Vibrating Motor Or Double Vibrating Motors | Voltage: | Three-phase, 50HZ, 380V, 415V, 440V Etc. |
Highlight: | 2100mm Separator Screen Machine,SUS Separator Screen Machine,2100mm vibro sifter machine |

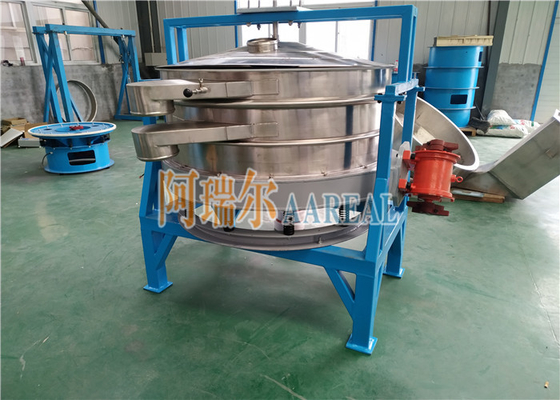

Stainless Steel Low-profile Inline Vibrating Separator Screen Machine for Food Industry
Product Introduction of Stainless Steel Low-profile Inline Vibrating Separator Screen Machine for Food Industry:
The Stainless Steel Low-profile Inline Vibrating Separator Screen Machine for Food Industry is also well known as the flow-thru separator, compact sieve, safety screeners, control sieves inline vibrating screen etc.
This kind of sieve machine is a new-type and high efficient screening machine. It offers high capacity wet or dry scalping in a compact, low head room design. Double motors mounted on opposite of body create the 3-D motion that allows maximum flow-thru of material. This machine is ideally suited for prepackaging screening in many food and pharmaceutical applications, as well as for bulk bag unloading and screening of raw ingredients.
Features of Stainless Steel Low-profile Inline Vibrating Separator Screen Machine for Food Industry:
1 Versatile for all meshes under 400#. Anti-blinding devices keep the screen clean during all operations.
5. All material contact parts are "stainless-steel" only.1. Easy to operate, easy to change the screen cloth, easy to clean.
2. High efficiency, elegant design and durable, available for any powder and viscous liquid.
3. Seven popular sizes to fit any requirement, space-saving thru high volume.
6. Quick-change screen capability allows easy screen changes in less than 5 minutes.
7. We manufacture single deck up through five deck units (four screen maximum per unit).
8. Auto discharge gate available and facilitates impure and rough materials. "On-demand" system allows use at operator's request only.
Some Important Information About Stainless Steel Low-profile Inline Vibrating Separator Screen Machine for Food Industry:
Other Name | compact sieve, flow-thru separator, check screening machine, inline vibrating sieve, safety screener, control sieve etc. |
Motor | single vibrating motor, double vibrating motors (according to the actual screening requirement) |
Height | 500mm or less |
Mesh Debling System | bouncing balls, ultrasonic deblinding system, rotary brush etc. |
Layers of Screen | 1~3 layers of screens (usually single layer of screen) |
Diameter | 400mm, 600mm, 800mm, 1000mm, 1200mm, 1500mm, 1800mm, 2100mm etc. |
Discharge Port | the discharge port for fine particles are at the bottom of the machinem, material flow direct design |
Purpose | suitable for materials safety screening with less oversize particles |
Machine Shape | round, rectangular |
Damping Spring | steel spring, rubber spring (optional) |
Application | milk powder, additives, instant noodles, noodles, flour, starch, snacks, solid drinks etc. |
Voltage | three-phase, 50HZ/60HZ, 380V/415V/440V etc. |
Working Principle of Stainless Steel Low-profile Inline Vibrating Separator Screen Machine for Food Industry:
The low profile flow-thru vibrating sieve uses vertical vibration motor as the excitating source. This motor(s) is(are) equipped on both sides with an eccentric hammer which functions to transfer the rotation movement of motor to horizontal, vertical and inclined motions. And the hammer then delivers the motions to screen surface for sifting. At present, rotary sieve machine is widely applied in pharmaceutical, foodstuff and other industries.
Structure of Stainless Steel Low-profile Inline Vibrating Separator Screen Machine for Food Industry:
Technical Parameters of Stainless Steel Low-profile Inline Vibrating Separator Screen Machine for Food Industry:
Model | AX-400 | AX-600 | AX-800 | AX-1000 | AX-1200 | AX-1300 | AX-1500 |
Power | 0.1kw | 0.1kw | 0.1kw | 0.2kw | 0.2kw | 0.2kw | 0.4kw |
Screen Diameter | 350mm | 550mm | 750mm | 920mm | 1005mm | 1120mm | 1420mm |
Note: the data above are for reference only, and our company reserves the right to modify the data.
Some Production Site Photos for Stainless Steel Low-profile Inline Vibrating Separator Screen Machine for Food Industry:
Application of Stainless Steel Low-profile Inline Vibrating Separator Screen Machine for Food Industry:
1. Food industry: sugar, fruit juice, starch, milk powder, food, gourmet powder, salt, fish meal, pineapple juice, soya-bean milk, egg powder, rice, soy etc.
2. Chemical industry: cosmetic, oil, resin, coating, drug industry, herbal powder ect.
3. Metals, metallurgical mining: ore, alloy powder, electrode powder, abrasive powder, aluminite powder, lead powder, copper powder, refraclory materials, kaolin, lime, aluminium oxide, quartz sand ect.
