Linear 180*500cm Rectangular Vibrating Screen For Silica Sand

Linear 180*500cm Rectangular Vibrating Screen For Silica Sand

  • Linear 180*500cm Rectangular Vibrating Screen For Silica Sand
  • Linear 180*500cm Rectangular Vibrating Screen For Silica Sand
  • Linear 180*500cm Rectangular Vibrating Screen For Silica Sand
Linear 180*500cm Rectangular Vibrating Screen For Silica Sand
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AG
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plastic film for the machine body, and plywood wooden case (fumigation-free) for the spare parts such as screens etc.
Delivery Time: 25~35 work days after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Purpose: For Screening Silica Sand Alternative Names: Mogensen Sizer, Mogensen Screen
Movement: Linear Motion Working Principle: Use The Principle Of Probability Screening
Vibration Source: Double Horizontal Vibrating Motors Screen Size: Width*length 1800*5000mm
Layers Of Screen: 4 Screen Structure: A Group Of Multi-layer Overlapping Screens Whose Gradient Increase From Top To Bottom, And The Mesh Of Which Decrease Progressively
High Light:

180*500cm Rectangular Vibrating Screen

,

Sand Rectangular Vibrating Screen

,

Sand linear vibratory screen

 1800*5000mm High Efficiency Probability Linear Vibrating Screen Machine for Silica Sand



This High Efficiency Probability Linear Vibrating Screen shown in the video is used for screening Silica Sand, with 4 layers of screens but only 3 discharge ports, 4 mesh~40 mesh woven wire mesh, more than 30 tons per hour capacity.

  Driven by two vibrating motors, this kind of probability sieve machine mainly uses the principle of probability screening. It has the similar working principle with the Mogensen Sizer abroad. The screen surface for each layer is not parallel. The angle of the screen increases from top to bottom.

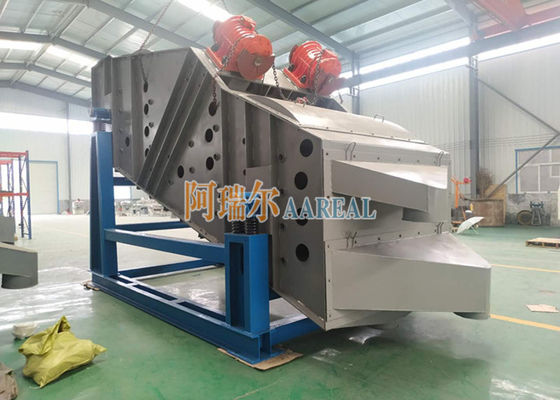

Linear 180*500cm Rectangular Vibrating Screen For Silica Sand 0

  As you can see in the photo above, this Mogensen vibrating sizer has 4 screen decks. In order to replace the screen easily, our engineer make a special design in the fixing of the screens. When people want to change the screen of a certain layer, they can loosen the screws corresponding to that screen deck, remove the hook plates at the front and back ends of the screen, and pull the screen out. Then hook one end of the new screen to the hook plate on the frame of one end of the sieve machine, and pull the other end of the screen to the other end of the sieve machine. At this time, hook the hook plate at this end of the screen to the screen frame and tighten the screws.



Overview of High Efficiency Probability Linear Vibrating Screen Machine for Silica Sand​:

  High Efficiency Probability Linear Vibrating Screen Machine for Silica Sand is also called mogensen screen, mogensen sieve, mogensen sizer, mogensen screener, mogensen screening machine, probability sieve, vibration probability screen, vibrating probability screen, vibration probability sieve, vibrating probability sieve and so on. It is a kind of screening machine that actively use the principle of probability sieving.

  The screen surface does linear vibration relying on the vibration excitation device.

  This kind of high efficiency vibration probability screen machine for dolomite has been widely used in metallurgy, building materials, coal and other industrial departments for medium and fine particle size grading.

  Probability vibrating screen adopts multi-layer (usually 3 ~ 6 layer), large dip angle (generally 30°~60°), and large sieve mesh (the screen mesh size is 2~10 times of the separation size) as the screen surface.

  The high efficiency vibration probability screen is a kind of new efficient screening equipment. The moving trajectory of the sieve box is linear. It adopts multi-layer and large inclined angle screen surface. The angle of the screen increases from top to bottom. And using probability theory, the mesh size is larger than the required sieve size, generally 1.2~2.2 times, which greatly improves the screening efficiency and production capacity.

  This series of screening machine is a successful example of the combination of probability theory and engineering practice. Its new design concept, unique structure and screening principle have achieved the perfect screening effect of the probability screen and have a wide application prospect.

  Compared with ordinary screening machine, the high efficiency vibration probability screen machines have a very high screening efficiency and is widely used in medicine, chemical, food and other industries for fine and medium particles screening.



Features of High Efficiency Probability Linear Vibrating Screen Machine for Silica Sand:

1. Uniform material distribution and high screening efficiency.

2. The production capacity of unit area is large, and the screen mesh is not easy to jam.

3. Completely enclosed, free of dust, smooth operation, easy to use and maintain.

4. Several kinds of products with different particle sizes can be produced at the same time

5. A single high efficiency vibration probability screen machine can separate 2~7 grain size materials at the same time.

6. The equipment is made of high quality stainless steel, corrosion resistant and long service life.

7. It is easy to replace the screen. The screen tension is moderate. No cross layer and mesh blockage.



Working Principle of High Efficiency Probability Linear Vibrating Screen Machine for Silica Sand:

  The high efficiency vibration probability screen adopts the mesh which is bigger than the sieving granularity. It consists of a frame, two vibrating motors and a group of multi-layer overlapping screens whose gradient increase from top to bottom, and the mesh of which decrease progressively.

  The whole equipment is mounted on a set of elastic elements. High frequency vibration is obtained by the screen through the rotation of vibration motor.

  The mesh size of high efficiency vibration probability screen is generally larger than particle size. As soon as the material enters the screen machine, it disintegrates rapidly, thereby eliminating the mesh clogging phenomenon may caused by the critical particles.



Main Dimensions of High Efficiency Probability Linear Vibrating Screen Machine for Silica Sand:

Linear 180*500cm Rectangular Vibrating Screen For Silica Sand 1

Model L L1 L2 B B1 H
AG-0818 1800 1100 260 820 1160 1800
2AG-0818 1800 1100 260 820 1160 1900
AG-1020 2000 1250 300 1020 1380 1850
2AG-1020 2000 1250 300 1020 1380 1980
AG-1024 2400 1550 300 1020 1380 2050
2AG-1024 2400 1550 300 1020 1380 2150
3AG-1024 2400 1550 300 1020 1380 2400
AG-1030 3000 2000 300 1020 1380 2200
2AG-1030 3000 2000 300 1020 1380 2350
AG-1224 2400 1550 380 1230 1620 2050
2AG-1224 2400 1550 380 1230 1620 2200
3AG-1224 2400 1550 380 1230 1620 2450
AG-1230 3000 2000 380 1230 1620 2200
2AG-1230 3000 2000 380 1230 1620 2350
3AG-1230 3000 2000 380 1230 1620 2600
AG-1236 3600 2350 380 1230 1620 2350
2AG-1236 3600 2350 380 1230 1620 2500
AG-1530 3000 2000 450 1530 1930 2200
2AG-1530 3000 2000 450 1530 1930 2350
3AG-1530 3000 2000 450 1530 1930 2600
AG-1536 3600 2350 450 1530 1930 2350
2AG-1536 3600 2350 450 1530 1930 2600
AG-1836 3600 2350 500 1830 2300 2400
2AG-1836 3600 2350 500 1830 2300 2550
3AG-1836 3600 2350 500 1830 2300 2810
AG-1842 4200 2800 500 1830 2300 2560
2AG-1842 4200 2800 500 1830 2300 2720



Main Technical Parameters of High Efficiency Probability Linear Vibrating Screen Machine for Silica Sand:

Model Layer

Screen Area

(m2)

Screen Aperture

(mm)

Feed Size (mm)

Capacity

(t/h)

Double Amplitude (mm)

Shake Frequency

(r/min)

Power (KW) Max. Vibration Force (KN)
AG-0818 1 1.44 0.25-6 ≤40 1.5-20 6-8 980 0.75×2 10×2
2AG-0818 2 1.44 0.25-12 ≤40 2-40 6-8 980 0.75×2 10×2
AG-1020 1 2 0.25-6 ≤50 2-30 6-8 980 1.1×2 16×2
2AG-1020 2 2 0.25-12 ≤50 2.5-60 6-8 980 1.1×2 16×2
AG-1024 1 2.4 0.25-6 ≤50 2.5-45 6-8 980 1.1×2 16×2
2AG-1024 2 2.4 0.25-12 ≤50 3-80 6-8 980 1.5×2 20×2
3AG-1024 3 2.4 0.25-12 ≤50 4-100 6-8 980 1.5×2 20×2
AG-1030 1 3 0.25-6 ≤50 3-60 6-8 980 1.5×2 20×2
2AG-1030 2 3 0.25-12 ≤50 4-100 6-8 980 1.5×2 20×2
AG-1224 1 2.88 0.25-6 ≤80 3-60 6-8 980 1.5×2 20×2
2AG-1224 2 2.88 0.25-12 ≤80 4-100 6-8 980 2.2×2 30×2
3AG-1224 3 2.88 0.25-12 ≤80 5-120 6-8 980 2.2×2 30×2
AG-1236 1 4.32 0.35-6 ≤80 6-100 6-8 980 2.2×2 30×2
2AG-1224 2 4.32 0.35-12 ≤80 8-150 6-8 980 2.2×2 30×2
AG-1230 1 3.6 0.25-6 ≤80 4-80 6-8 980 1.5×2 20×2
2AG-1230 2 3.6 0.25-12 ≤80 5-120 6-8 980 2.2×2 30×2
3AG-1230 3 3.6 0.25-12 ≤80 6-150 6-8 980 2.2×2 30×2
AG-1530 1 4.5 0.35-6 ≤100 6-100 6-8 980 2.2×2 30×2
2AG-1530 2 4.5 0.35-12 ≤100 8-150 6-8 980 3.0×2 40×2
3AG-1530 3 4.5 0.35-12 ≤100 10-180 6-8 980 3.0×2 40×2
AG-1536 1 5.4 0.35-6 ≤100 8-120 6-8 980 3.0×2 40×2
2AG-1536 2 5.4 0.35-12 ≤100 10-200 6-8 980 3.0×2 40×2
AG-1836 1 6.48 0.35-6 ≤120 12-150 6-8 980 3.7×2 50×2
2AG-1836 2 6.48 0.35-12 ≤120 16-250 6-8 980 3.7×2 50×2
3AG-1836 3 6.48 0.35-12 ≤120 20-300 6-8 980 3.7×2 50×2
AG-1842 1 7.56 0.35-6 ≤120 15-200 6-8 980 3.7×2 50×2
2AG-1842 2 7.56 0.35-12 ≤120 20-300 6-8 980 3.7×2

50×2



Selection Tips of High Efficiency Probability Linear Vibrating Screen Machine for Silica Sand:

1. The high efficiency vibration probability screen installation method has several forms, such as seating type, hanging type and the combination of the two kinds. Please consider it carefully when selecting.

2. It has two kinds of vibration source forms: vibration motor and exciter, which are used for different operating environment requirements. When choosing, please determine the voltage system and whether there is explosion-proof requirement or not.
