| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AG |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plastic film for the machine body, and plywood wooden case (fumigation-free) for the spare parts such as screens etc. |
| Delivery Time: | 15~35 work days after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Moving Trajectory: | Linear Vibrating Motion | Working Principle: | Use The Principle Of Probabilistic Screening |
|---|---|---|---|
| Characteristics: | Large Capacity, Probability Screening | Screen Decks: | A Group Of Multi-layer Overlapping Screens Whose Gradient Increase From Top To Bottom, And The Mesh Of Which Decrease Progressively |
| Material: | Stainless Steel 304, 316L, Carbon Steel Etc. | Motor: | Horizontal Arrangement Vibrating Motors, 2 Units |
| Application: | Potash Feldspar, Kaolin, Calcium Carbonate, Dolomite Etc. | Names: | Mogensen Screen, Probability Screen, Mogensen Sieve, Mogensen Sizer, Mogensen Screener, Mogensen Screening Machine, Probability Sieve |
| High Light: | inclined vibrating screen,dewatering vibrating screen |
||

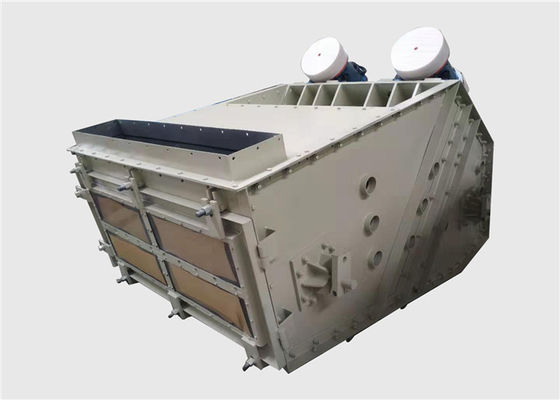

Large Capacity Rectangular Vibrating Screen Mogensen Vibrating Probability Screen
Introduction of Large Capacity Mogensen Vibrating Probability Screen for Mechanism Sand:
Large Capacity Mogensen Vibrating Probability Screen for Mechanism Sand is a kind of screening machine which can use probability screening principle actively.The probability screen is usually called the vibration probability screen, and its screen surface is directly vibrated by the exciting device.This probability screen has been widely used in metallurgy, building materials and coal and other industrial sectors, for medium and fine particle size classification.Probability of vibration screen with flexible vibrating screen is the main difference in the structure, probability of vibrating screen using multi-layer (usually for 3 ~ 6 layer), large dip Angle (30 ° ~ 60 °), large mesh (screen mesh size is 2 ~ 10 times the separation size of screen surface.
Characteristics of Large Capacity Mogensen Vibrating Probability Screen for Mechanism Sand:
1. Multi-stage classification
For the mechanism sand or natural sand for multi-stage classification, the number of the screening: 5mm~2.36mm~1.2mm~0.6mm, and some special mortar has been screened to 0.3mm~0.15mm~0.075mm.
2. High cost performance
We have successfully replaced expensive imported equipment in dry powder mortar production lines by introducing advanced technologies such as Germany and Spain and continuously developing and on-site verification
3. Large Capacity
The output of GLS coarse sieve is more than 80t/h, one set of coarse sieve can replace more sets of vibrating screen, site layout is easier.
4. Longer life
Screen surface design of screen is curved state, the external ratchet tightening can easily control the mesh tension without loosen, the screen service life is longer.
5. Environmental design
The coarse sieve machine is designed with dust removal device, which can conveniently connect the on-site dedusting equipment to meet the requirements of dustless screening.
Main Dimensions of Large Capacity Mogensen Vibrating Probability Screen for Mechanism Sand:
| Model | L | L1 | L2 | B | B1 | H |
| AG-0818 | 1800 | 1100 | 260 | 820 | 1160 | 1800 |
| 2AG-0818 | 1800 | 1100 | 260 | 820 | 1160 | 1900 |
| AG-1020 | 2000 | 1250 | 300 | 1020 | 1380 | 1850 |
| 2AG-1020 | 2000 | 1250 | 300 | 1020 | 1380 | 1980 |
| AG-1024 | 2400 | 1550 | 300 | 1020 | 1380 | 2050 |
| 2AG-1024 | 2400 | 1550 | 300 | 1020 | 1380 | 2150 |
| 3AG-1024 | 2400 | 1550 | 300 | 1020 | 1380 | 2400 |
| AG-1030 | 3000 | 2000 | 300 | 1020 | 1380 | 2200 |
| 2AG-1030 | 3000 | 2000 | 300 | 1020 | 1380 | 2350 |
| AG-1224 | 2400 | 1550 | 380 | 1230 | 1620 | 2050 |
| 2AG-1224 | 2400 | 1550 | 380 | 1230 | 1620 | 2200 |
| 3AG-1224 | 2400 | 1550 | 380 | 1230 | 1620 | 2450 |
| AG-1230 | 3000 | 2000 | 380 | 1230 | 1620 | 2200 |
| 2AG-1230 | 3000 | 2000 | 380 | 1230 | 1620 | 2350 |
| 3AG-1230 | 3000 | 2000 | 380 | 1230 | 1620 | 2600 |
| AG-1236 | 3600 | 2350 | 380 | 1230 | 1620 | 2350 |
| 2AG-1236 | 3600 | 2350 | 380 | 1230 | 1620 | 2500 |
| AG-1530 | 3000 | 2000 | 450 | 1530 | 1930 | 2200 |
| 2AG-1530 | 3000 | 2000 | 450 | 1530 | 1930 | 2350 |
| 3AG-1530 | 3000 | 2000 | 450 | 1530 | 1930 | 2600 |
| AG-1536 | 3600 | 2350 | 450 | 1530 | 1930 | 2350 |
| 2AG-1536 | 3600 | 2350 | 450 | 1530 | 1930 | 2600 |
| AG-1836 | 3600 | 2350 | 500 | 1830 | 2300 | 2400 |
| 2AG-1836 | 3600 | 2350 | 500 | 1830 | 2300 | 2550 |
| 3AG-1836 | 3600 | 2350 | 500 | 1830 | 2300 | 2810 |
| AG-1842 | 4200 | 2800 | 500 | 1830 | 2300 | 2560 |
| 2AG-1842 | 4200 | 2800 | 500 | 1830 | 2300 | 2720 |
Main Technical Parameters of Large Capacity Mogensen Vibrating Probability Screen for Mechanism Sand:
| Model | Layer |
Screen Area (m2) |
Screen Aperture (mm) |
Feed Size (mm) |
Capacity (t/h) |
Double Amplitude (mm) |
Shake Frequency (r/min) |
Power (KW) | Max. Vibration Force (KN) |
| AG-0818 | 1 | 1.44 | 0.25-6 | ≤40 | 1.5-20 | 6-8 | 980 | 0.75×2 | 10×2 |
| 2AG-0818 | 2 | 1.44 | 0.25-12 | ≤40 | 2-40 | 6-8 | 980 | 0.75×2 | 10×2 |
| AG-1020 | 1 | 2 | 0.25-6 | ≤50 | 2-30 | 6-8 | 980 | 1.1×2 | 16×2 |
| 2AG-1020 | 2 | 2 | 0.25-12 | ≤50 | 2.5-60 | 6-8 | 980 | 1.1×2 | 16×2 |
| AG-1024 | 1 | 2.4 | 0.25-6 | ≤50 | 2.5-45 | 6-8 | 980 | 1.1×2 | 16×2 |
| 2AG-1024 | 2 | 2.4 | 0.25-12 | ≤50 | 3-80 | 6-8 | 980 | 1.5×2 | 20×2 |
| 3AG-1024 | 3 | 2.4 | 0.25-12 | ≤50 | 4-100 | 6-8 | 980 | 1.5×2 | 20×2 |
| AG-1030 | 1 | 3 | 0.25-6 | ≤50 | 3-60 | 6-8 | 980 | 1.5×2 | 20×2 |
| 2AG-1030 | 2 | 3 | 0.25-12 | ≤50 | 4-100 | 6-8 | 980 | 1.5×2 | 20×2 |
| AG-1224 | 1 | 2.88 | 0.25-6 | ≤80 | 3-60 | 6-8 | 980 | 1.5×2 | 20×2 |
| 2AG-1224 | 2 | 2.88 | 0.25-12 | ≤80 | 4-100 | 6-8 | 980 | 2.2×2 | 30×2 |
| 3AG-1224 | 3 | 2.88 | 0.25-12 | ≤80 | 5-120 | 6-8 | 980 | 2.2×2 | 30×2 |
| AG-1236 | 1 | 4.32 | 0.35-6 | ≤80 | 6-100 | 6-8 | 980 | 2.2×2 | 30×2 |
| 2AG-1224 | 2 | 4.32 | 0.35-12 | ≤80 | 8-150 | 6-8 | 980 | 2.2×2 | 30×2 |
| AG-1230 | 1 | 3.6 | 0.25-6 | ≤80 | 4-80 | 6-8 | 980 | 1.5×2 | 20×2 |
| 2AG-1230 | 2 | 3.6 | 0.25-12 | ≤80 | 5-120 | 6-8 | 980 | 2.2×2 | 30×2 |
| 3AG-1230 | 3 | 3.6 | 0.25-12 | ≤80 | 6-150 | 6-8 | 980 | 2.2×2 | 30×2 |
| AG-1530 | 1 | 4.5 | 0.35-6 | ≤100 | 6-100 | 6-8 | 980 | 2.2×2 | 30×2 |
| 2AG-1530 | 2 | 4.5 | 0.35-12 | ≤100 | 8-150 | 6-8 | 980 | 3.0×2 | 40×2 |
| 3AG-1530 | 3 | 4.5 | 0.35-12 | ≤100 | 10-180 | 6-8 | 980 | 3.0×2 | 40×2 |
| AG-1536 | 1 | 5.4 | 0.35-6 | ≤100 | 8-120 | 6-8 | 980 | 3.0×2 | 40×2 |
| 2AG-1536 | 2 | 5.4 | 0.35-12 | ≤100 | 10-200 | 6-8 | 980 | 3.0×2 | 40×2 |
| AG-1836 | 1 | 6.48 | 0.35-6 | ≤120 | 12-150 | 6-8 | 980 | 3.7×2 | 50×2 |
| 2AG-1836 | 2 | 6.48 | 0.35-12 | ≤120 | 16-250 | 6-8 | 980 | 3.7×2 | 50×2 |
| 3AG-1836 | 3 | 6.48 | 0.35-12 | ≤120 | 20-300 | 6-8 | 980 | 3.7×2 | 50×2 |
| AG-1842 | 1 | 7.56 | 0.35-6 | ≤120 | 15-200 | 6-8 | 980 | 3.7×2 | 50×2 |
| 2AG-1842 | 2 | 7.56 | 0.35-12 | ≤120 | 20-300 | 6-8 | 980 | 3.7×2 |
50×2 |
Working Principle of Large Capacity Mogensen Vibrating Probability Screen for Mechanism Sand:
The working principle of probability screen is similar with other linear vibrating screen. After the screen machine starts, the two symmetrical vibration exciter of the identical specifications and types or the synchronous motor do counter motion; the generating exciting force will be delivered to the vibrating screen box through a vibration transmission body, which will make the screen box drive the screen to do cyclical exercise, so that the materials on the screen do salutatory exercises along with the screen box, and during that time materials with a size smaller than the screen aperture will be through the screen and materials with larger size will be discharged from the output, and then finish the final completion of screening. using probability theory, the mesh aperture is 1.2-2.2 times large than required granularity usually.
Application of Large Capacity Mogensen Vibrating Probability Screen for Mechanism Sand:
Food industry: grading of granulated sugar, raw salt and edible salt.
Building materials industry: dry powder mortar, mechanism sand, natural sand, quartz sand, perlite, dolomite, calcite, potassium feldspar, etc.
Other industries: the size of the particle material of size 0.5~10mm and the loose density > 0.8 is the best.
Selection Tips About Large Capacity Mogensen Vibrating Probability Screen for Mechanism Sand:
1. It has two kinds of vibration source forms: vibration motor and exciter, which are used for different operating environment requirements. When choosing, please determine the voltage system and whether there is explosion-proof requirement or not.
2. The high efficiency vibration probability screen installation method has several forms, such as seating type, hanging type and the combination of the two kinds. Please consider it carefully when selecting.
