Coal Screening Equipment Mogensen Gravel Probability Circular Motion Screen

Coal Screening Equipment Mogensen Gravel Probability Circular Motion Screen

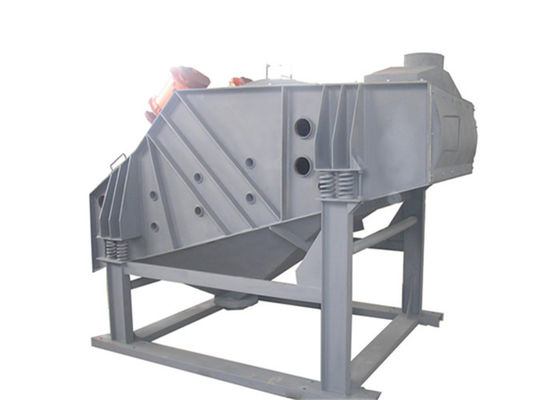

Introduction of Large Capacity Mogensen Gravel Probability Vibrating Screen Machine:

Large Capacity Mogensen Gravel Probability Vibrating Screen Machine is a kind of sieving machine which make full use of the principle of probabilistic screening. This screening equipment is designed and manufactured to suit most applications: Enclosed and open screens, finger deck screens, industrial screens, single to multi deck screens, industrial sieves and vibrating screening of many sizes and for many applications.

Working Principle of Large Capacity Mogensen Gravel Probability Vibrating Screen Machine:

  The probability morgensen screen is a kind of sieve machinery which can make use of the principle of probabilistic screening. The sieve theory points out that, the stranded time of each object in its interior is opposite to its weight in the work. Through the actual experiment, particle size is much smaller than the hole diameter, it can quickly pass the screen surface, the more close to the hole diameter, the longer the stranded time, if the diameter of the two sides are close, the stranded time of the material is the longest, popular speaking, large particles stay time is long , small particles stay time is short.

  When the sieve machine starts, the symmetrical arrangement of two identical models and specifications of the vibration motor or exciter for synchronous reverse operation, the excitation force through the transmission body- vibrating motor or exciter base pass to the entire vibration body – sieve box, the sieve box drives the sieve surface to do periodic vibration, so that material in the sieve surface with the screen for directional leaping movement, meanwhile, the material less than the sieve aperture through the sieve hole fall to the bottom, as undersize material, the material larger than the sieve aperture is discharged from the outlet after the continuous jumping movement, and finally the screening operation is completed.

Characteristics​ of Large Capacity Mogensen Gravel Probability Vibrating Screen Machine:

1. Multi-stage classification
For the mechanism sand or natural sand for multi-stage classification, the number of the screening: 5mm~2.36mm~1.2mm~0.6mm, and some special mortar has been screened to 0.3mm~0.15mm~0.075mm.

2. High cost performance
We have successfully replaced expensive imported equipment in dry powder mortar production lines by introducing advanced technologies such as Germany and Spain and continuously developing and on-site verification

3. Large Capacity
The output of GLS coarse sieve is more than 80t/h, one set of coarse sieve can replace more sets of vibrating screen, site layout is easier.

4. Longer life
Screen surface design of screen is curved state, the external ratchet tightening can easily control the mesh tension without loosen, the screen service life is longer.

5. Environmental design
The coarse sieve machine is designed with dust removal device, which can conveniently connect the on-site dedusting equipment to meet the requirements of dustless screening.

Main Dimensions of Large Capacity Mogensen Gravel Probability Vibrating Screen Machine:
