Introduction of High Efficiency Rectangular Mogensen Vibrating Screens for Calcium Carbonate:
High Efficiency Rectangular Mogensen Vibrating Screens for Calcium Carbonate is a kind of sieve machinery which can make use of the principle of probabilistic screening. This kind of vibrating screen machine can reach more than 80 tons per hour. The output of linear vibrating sieve is low, and screening accuracy is not up to standard, you must use more sets to complete, the screening process layout is very difficult and costly.
Working Principle of High Efficiency Rectangular Mogensen Vibrating Screens for Calcium Carbonate:
The high efficiency vibration probability screen adopts the mesh which is bigger than the sieving granularity. It consists of a frame, two vibrating motors and a group of multi-layer overlapping screens whose gradient increase from top to bottom, and the mesh of which decrease progressively.
The whole equipment is mounted on a set of elastic elements. High frequency vibration is obtained by the screen through the rotation of vibration motor.
The mesh size of high efficiency vibration probability screen is generally larger than particle size. As soon as the material enters the screen machine, it disintegrates rapidly, thereby eliminating the mesh clogging phenomenon may caused by the critical particles.
Features of High Efficiency Rectangular Mogensen Vibrating Screens for Calcium Carbonate:
1. Several kinds of products with different particle sizes can be produced at the same time
2. A single high efficiency vibration probability screen machine can separate 2~7 grain size materials at the same time.
3. Uniform material distribution and high screening efficiency.
4. The production capacity of unit area is large, and the screen mesh is not easy to jam.
5. Completely enclosed, free of dust, smooth operation, easy to use and maintain.
6. It is easy to replace the screen. The screen tension is moderate. No cross layer and mesh blockage.
7. The equipment is made of high quality stainless steel, corrosion resistant and long service life.
Main Dimensions of High Efficiency Rectangular Mogensen Vibrating Screens for Calcium Carbonate:
Model
L
L1
L2
B
B1
H
AG-0818
1800
1100
260
820
1160
1800
2AG-0818
1800
1100
260
820
1160
1900
AG-1020
2000
1250
300
1020
1380
1850
2AG-1020
2000
1250
300
1020
1380
1980
AG-1024
2400
1550
300
1020
1380
2050
2AG-1024
2400
1550
300
1020
1380
2150
3AG-1024
2400
1550
300
1020
1380
2400
AG-1030
3000
2000
300
1020
1380
2200
2AG-1030
3000
2000
300
1020
1380
2350
AG-1224
2400
1550
380
1230
1620
2050
2AG-1224
2400
1550
380
1230
1620
2200
3AG-1224
2400
1550
380
1230
1620
2450
AG-1230
3000
2000
380
1230
1620
2200
2AG-1230
3000
2000
380
1230
1620
2350
3AG-1230
3000
2000
380
1230
1620
2600
AG-1236
3600
2350
380
1230
1620
2350
2AG-1236
3600
2350
380
1230
1620
2500
AG-1530
3000
2000
450
1530
1930
2200
2AG-1530
3000
2000
450
1530
1930
2350
3AG-1530
3000
2000
450
1530
1930
2600
AG-1536
3600
2350
450
1530
1930
2350
2AG-1536
3600
2350
450
1530
1930
2600
AG-1836
3600
2350
500
1830
2300
2400
2AG-1836
3600
2350
500
1830
2300
2550
3AG-1836
3600
2350
500
1830
2300
2810
AG-1842
4200
2800
500
1830
2300
2560
2AG-1842
4200
2800
500
1830
2300
2720
Main Technical Parameters of High Efficiency Rectangular Mogensen Vibrating Screens for Calcium Carbonate:
Model
Layer
Screen Area
(m2)
Screen Aperture
(mm)
Feed Size (mm)
Capacity
(t/h)
Double Amplitude (mm)
Shake Frequency
(r/min)
Power (KW)
Max. Vibration Force (KN)
AG-0818
1
1.44
0.25-6
≤40
1.5-20
6-8
980
0.75×2
10×2
2AG-0818
2
1.44
0.25-12
≤40
2-40
6-8
980
0.75×2
10×2
AG-1020
1
2
0.25-6
≤50
2-30
6-8
980
1.1×2
16×2
2AG-1020
2
2
0.25-12
≤50
2.5-60
6-8
980
1.1×2
16×2
AG-1024
1
2.4
0.25-6
≤50
2.5-45
6-8
980
1.1×2
16×2
2AG-1024
2
2.4
0.25-12
≤50
3-80
6-8
980
1.5×2
20×2
3AG-1024
3
2.4
0.25-12
≤50
4-100
6-8
980
1.5×2
20×2
AG-1030
1
3
0.25-6
≤50
3-60
6-8
980
1.5×2
20×2
2AG-1030
2
3
0.25-12
≤50
4-100
6-8
980
1.5×2
20×2
AG-1224
1
2.88
0.25-6
≤80
3-60
6-8
980
1.5×2
20×2
2AG-1224
2
2.88
0.25-12
≤80
4-100
6-8
980
2.2×2
30×2
3AG-1224
3
2.88
0.25-12
≤80
5-120
6-8
980
2.2×2
30×2
AG-1236
1
4.32
0.35-6
≤80
6-100
6-8
980
2.2×2
30×2
2AG-1224
2
4.32
0.35-12
≤80
8-150
6-8
980
2.2×2
30×2
AG-1230
1
3.6
0.25-6
≤80
4-80
6-8
980
1.5×2
20×2
2AG-1230
2
3.6
0.25-12
≤80
5-120
6-8
980
2.2×2
30×2
3AG-1230
3
3.6
0.25-12
≤80
6-150
6-8
980
2.2×2
30×2
AG-1530
1
4.5
0.35-6
≤100
6-100
6-8
980
2.2×2
30×2
2AG-1530
2
4.5
0.35-12
≤100
8-150
6-8
980
3.0×2
40×2
3AG-1530
3
4.5
0.35-12
≤100
10-180
6-8
980
3.0×2
40×2
AG-1536
1
5.4
0.35-6
≤100
8-120
6-8
980
3.0×2
40×2
2AG-1536
2
5.4
0.35-12
≤100
10-200
6-8
980
3.0×2
40×2
AG-1836
1
6.48
0.35-6
≤120
12-150
6-8
980
3.7×2
50×2
2AG-1836
2
6.48
0.35-12
≤120
16-250
6-8
980
3.7×2
50×2
3AG-1836
3
6.48
0.35-12
≤120
20-300
6-8
980
3.7×2
50×2
AG-1842
1
7.56
0.35-6
≤120
15-200
6-8
980
3.7×2
50×2
2AG-1842
2
7.56
0.35-12
≤120
20-300
6-8
980
3.7×2
50×2
Selection Tips About High Efficiency Rectangular Mogensen Vibrating Screens for Calcium Carbonate:
1. The high efficiency vibration probability screen installation method has several forms, such as seating type, hanging type and the combination of the two kinds. Please consider it carefully when selecting.
2. It has two kinds of vibration source forms: vibration motor and exciter, which are used for different operating environment requirements. When choosing, please determine the voltage system and whether there is explosion-proof requirement or not.
Application of High Efficiency Rectangular Mogensen Vibrating Screens for Calcium Carbonate:
The probability vibrating screen machine can be widely used in building materials, mineral processing, metallurgy, chemicals, food and other industries.

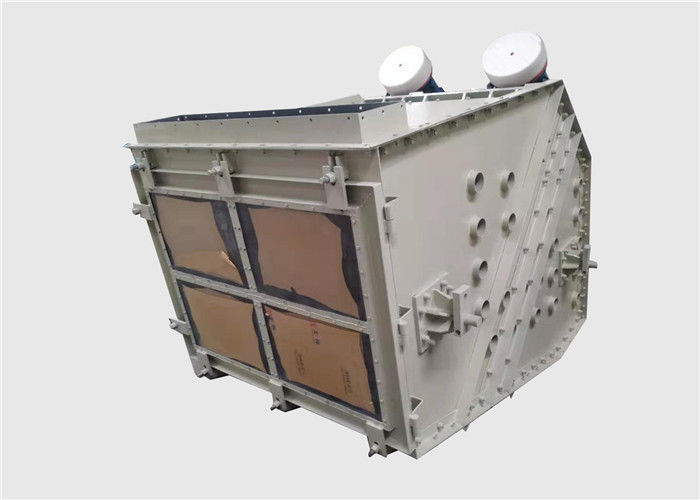

Some Photosfor High Efficiency Rectangular Mogensen Vibrating Screens for Calcium Carbonate:
