Place of Origin: | China |
Brand Name: | AAREAL |
Certification: | ISO9001:2015 |
Model Number: | ATE |
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Plastic film for the machine, and fumigation-free plywood wooden case for the spare parts |
Delivery Time: | 30~35 work days after order confirmed |
Payment Terms: | T/T, L/C |
Supply Ability: | 5 sets per month |
Movement: | Linear Vibrating Motion | Function: | Dewatering, Medium Removal And Desliming Etc. |
---|---|---|---|
Screen: | Woven Wire Mesh, Polyurethane Screen Mesh Etc. | Dip Angle: | Can Be Adjusted From -2~10 Degrees |
Application: | Power Generation, Coal Preparation, Ore Dressing, Sugar Making, Salt Making And Other Industrial Sectors | Power Source: | Vibrating Exciters, Double Vibrating Motors |
Highlight: | inclined vibrating screen,material screening equipment |
Large Output Linear Motion Vibrating Screen Machine For Sewage Treatment
Introduction of Large Output High Frequency Vibrating Dewatering Screen for Sewage Treatment:
The vibration force of Large Output High Frequency Vibrating Dewatering Screen for Sewage Treatment is divided into vibration motor type and ordinary motor driving exciter type. For the vibration motor type, the exciting force can be adjusted by the motor eccentric block. The common motor type adopts the double motor self-synchronization technology, mainly Screening of larger particles and the use of more water, the device is driven by the tape were two unrelated shock absorber for synchronous reverse rotation, the component force along the vibration direction of centrifugal force produced by two sets of eccentric mass superpose, reverse centrifugal offset, thus forming a single vibration along the vibration direction, so that the screen box for reciprocating linear motion.
This kind of sieve machine is also called drainage screen, drainage sieve, dehydration vibrating screen, dewatering vibrating screen, vibrating dewatering screen, dehydration shaker, sculping screen, medium drainage screen, medium draining screen, sizing-medium drainage screen etc.
Working Principle of Large Output High Frequency Vibrating Dewatering Screen for Sewage Treatment:
Dewatering screen adopt dual-electrode self-synchronization technology, universal eccentric block, adjustable amplitude vibrator. The machine is combined mainly by the screen box, exciter, support system and motor. The two mutually independent vibrators are respectively driven by the tape coupling to do synchronous reverse operation. The centrifugal force generated by two eccentric masses is superposed along the vibration direction and reversely counteracted, thereby forming a single vibration force along the vibration direction, making the screen box reciprocating linear motion.
The drainage screen, also known as high-frequency dewatering screen, changing the water surface tension of pulp through the exciting force, pulp water through the screen to become the undersize material, and fine material is blocked by the screen to form the filter layer by the vibration of the forward movement of discharge. Dewatering screen is mainly used for detailings dewatering in the mineral processing industry, coal slurry dehydration of coal preparation plant, washed quartz sand dewatering and ceramic slurry dehydration, and wet and dry classification, dehydration, removal and mud removal of medium and fine granular materials in industrial sectors such as electric power, sugar making and salt making.
Technical Parameters of Large Output High Frequency Vibrating Dewatering Screen for Sewage Treatment:
Model | Screen Surface Area (m2) |
Mesh Size (mm) |
Screen Mesh Structure | Feeding Size (mm) |
Capacity (t/h) |
Vibration Frequency (min-1) |
Double Vibration Amplitude (mm) |
Power (kw) |
Vibrating Direction Angle (°) |
Overall Size (mm) |
926 | 2.34 | 0.25-50 |
Stainless steel woven mesh
Perforated plate
Stainless steel seam welded mesh |
≤150 | 1.5-100 | 960 | 6-10 | 2*1.5 | 45 | 2740*1340*1520 |
1030 | 3 | 2-120 | 8-10 | 2*2.2 | 3140*1440*1680 | |||||
1230 | 3.6 | 3-180 | 8-10 | 2*2.2 | 3140*1640*1680 | |||||
1540 | 6 | 5-250 | 8-12 | 2*3.0 | 4140*1940*1790 |
Characteristics of Large Output High Frequency Vibrating Dewatering Screen for Sewage Treatment:
1. Good dewatering effect, safe and reliable.
2. High screening capacity and efficiency.
3. Low noise, easy maintenance.
4. Reasonable structure, strong and durable.
5. It has seat type and hanging type for choice.
6. The screen has a simple structure, easy maintenance. Screen adopts high strength metal woven mesh, durable service, or uses polyurethane screen mesh.
Tips for Large Output High Frequency Vibrating Dewatering Screen for Sewage Treatment:
1. The dip angle of the screen surface can be adjusted from -2 to 10 degrees. Other angles can be adjusted by the user.
2. When the forced synchronization is adopted, the motor can be installed on the left or right. User must state when ordering.
3. The screen structure (weaving, punching, wedge-bar), mesh size, processing capacity, material name and feeding particle size should be indicated in the selection and ordering by the user.
4. When selecting and ordering, the user should determine the arrangement of the sieve and screen seam size. If they do not make a decision, we supply the machine according to the right-type screen seam 0.5mm arrangement. (The motor is installed on the left or right side of the material flow direction.)
Application of Large Output High Frequency Vibrating Dewatering Screen for Sewage Treatment:
Coal washer: coal, fly ash, clean coal
Dry tailings row: iron tailings, gold tailings, copper tailings, vanadium tailings, lead and zinc tailings, graphite, potassium feldspar dehydration
Washed sand: quartz sand, zircon sand, glass sand, building sand, sand casting, building materials, sand.

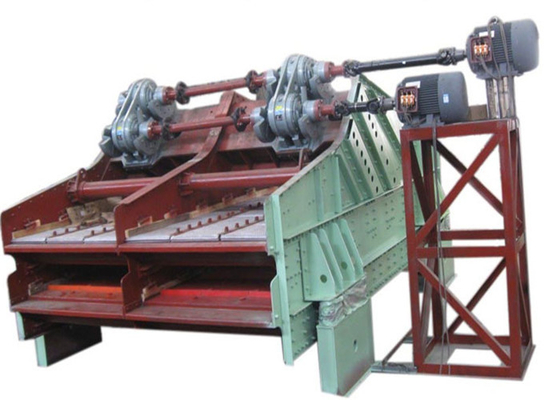

Vibration Motor Type Vibration Exciter Type
