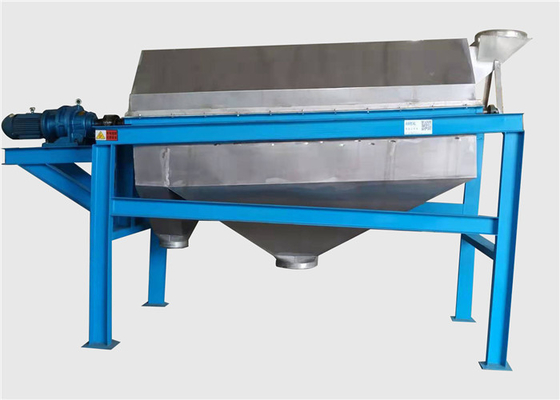

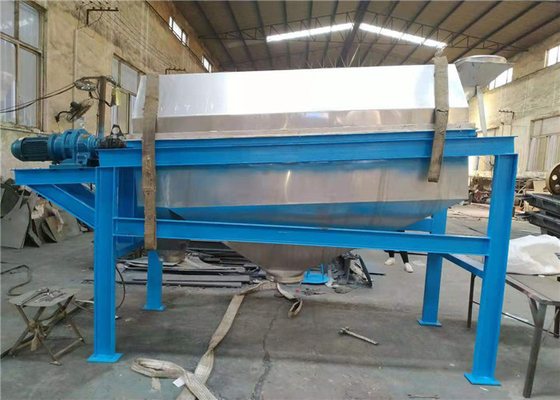

Trommel Rotary Sifter Screens Stainless Steel Material
Introduction of Stainless Steel Trommel Rotary Sifter Screens for Sea Salt and Table Salt:
Stainless Steel Trommel Rotary Sifter Screens for Sea Salt and Table Salt has wide range of sizes and capacities. It is a mechanical screening machine used to separate materials. This kind of screening machine is also well known as the trommel screen, rotary screen, cylinder round sifter etc.
Some Important Information About Stainless Steel Trommel Rotary Sifter Screens for Sea Salt and Table Salt:
| Other Names |
rotary screen, rotary sifter, trommel screen, drum screen, revolving screen, cylinder round sifter etc. |
| Movement |
rotary centrifugal movement |
| Power Source |
general motor and reducer |
| Type |
with shaft, shaftless |
| Angle of Inclination |
5°~7° |
| Material |
carbon steel, stainless steel 304, 316L |
| Advantages |
overcome the screen mesh plugging problem caused by circular vibrating screen and linear screen in the process of screening wet materials |
| Features |
have strong adaptability to materials. Material that is sticky, with high humidity, dirty and miscellaneous can be screened |
Working Principle of Stainless Steel Trommel Rotary Sifter Screens for Sea Salt and Table Salt:
When materials flow towards along the inclined rotating drum, materials jump and roll, the undersized material smaller than the screen apertures passes through the screen, while the oversized material exits at the other end of the drum.
Material Running State in the Rotary Screen
Advantages of Stainless Steel Trommel Rotary Sifter Screens for Sea Salt and Table Salt:
1. Install the automatic cleaning brush on the top of trommel screen to avoid the blockage.
2. The Screen is made of 16Mn with strong strength, good abrasion resistance and high screening efficiency for long life.
3. It is fully enclosed by sealing structure, no dust pollution, more suit for high standard working conditions.
4. It is durable and low maintenance cost, with 18 months warranty, 0 purchasing risk.
5. It is designed by your requirements, meet different handling capacity and working site.
6. Variable application range-Compost, chemical, coal, plastic, recycling, metallurgy, mineral-selecting etc.
Technical Parameters of Stainless Steel Trommel Rotary Sifter Screens for Sea Salt and Table Salt:
| Model |
Capacity
(t/h)
|
Screen Drum Diameter (mm) |
Length
(m)
|
Motor Power (KW) |
| GTS600 |
5-10 |
600 |
1000 |
1.5 |
| GTS800 |
8-15 |
800 |
1200 |
2.2 |
| GTS1000 |
15-30 |
1000 |
1500 |
3 |
| GTS1200 |
20-50 |
1200 |
1800 |
5.5 |
| GTS1500 |
40-80 |
1500 |
2000 |
7.5 |
| GTS1800 |
80-150 |
1800 |
2000 |
11 |
| GTS2000 |
130-200 |
2000 |
2500 |
11 |
Structure of Stainless Steel Trommel Rotary Sifter Screens for Sea Salt and Table Salt:
The trommel screeners consist of a perforated cylindrical drum that is normally elevated at an angle at the feed end, motor, reduction unit, screen frame and sealing cover.
1. driving device 2. coarse material discharge opening 3. seal cover
4. drum body 5. undersize material discharge opening 6. retaining plate
7. feed inlet 8. bracket
Application of Stainless Steel Trommel Rotary Sifter Screens for Sea Salt and Table Salt:
1. Abrasive material and ceramic industry: building sand, mica, alumina, silica sand, abrasive, refractory materialetc.
2. Metallurgy and mining industry: quartz sand, sand, ore, titanium oxide, zinc oxide, etc.
3. Coal Industry: suitable for screening and classifying lump coal, coal dust, coal washing, etc.
4. Quarry: suitable for screening and classifying gravel, clay, mountain meal, sand, etc.
5. Mechanical industry: casting sand, charcoal, grafito, powder metallurgy, electromagnetic material and metal powder, etc.
