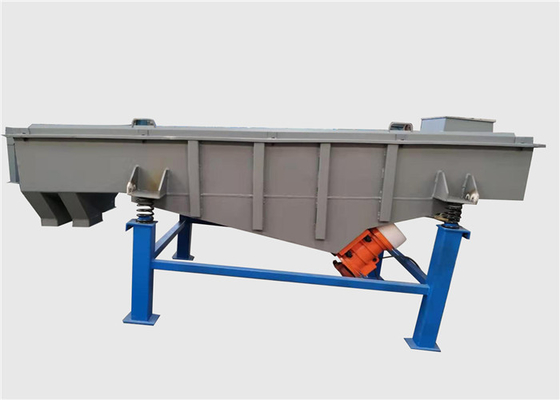

Calcium Carbonate Vibrating Screen Machine Multi Function Screening Equipment

Calcium Carbonate Vibrating Screen Machine Multi Function Screening Equipment

  • Calcium Carbonate Vibrating Screen Machine Multi Function Screening Equipment
  • Calcium Carbonate Vibrating Screen Machine Multi Function Screening Equipment
Calcium Carbonate Vibrating Screen Machine Multi Function Screening Equipment
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for small size
Delivery Time: 20~30 workdays after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Model: AZ-520, 530, 1030, 1040, 1235, 1535 Etc. Material: Stainless Steel, Carbon Steel, Titanium Materials Etc.
Layers Of Screen: 1~6 Layers Of Screen Mesh Cleaning Machine: Rubber Balls, Ultrasonic Deblinding System Etc.
Screen Mesh: Woven Wire Mesh, Perforated Plate, Bar Grizzly Etc. Application: Silica Sand, Limestone, Marble, Calcium Carbonate Etc.
Surface Treatment: Spray Paint, Plastic Spraying, Mirror Polishing, Sand Blasting Etc. Voltage: 380V/3-Ph/50HZ (Special Voltage Can Be Customized)
High Light:

vibratory screening equipment

,

horizontal vibrating screen

Calcium Carbonate Vibrating Screen Machine Multi Function Screening Equipment



Introduction of Multi-function Low Noise Linear Vibrating Screen Machine for Calcium Carbonate:

Multi-function Low Noise Linear Vibrating Screen Machine for Calcium Carbonate use excellent vibrant motor as power source, so that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the goal of grading, impurity- removing, testing, washing , dehydration etc.



Structural Composition of Multi-function Low Noise Linear Vibrating Screen Machine for Calcium Carbonate:

The rectangular vibrating sieve separators are mainly composed of screen box, screen frames, screen, vibration motor, electric pedestal, damping spring, frame and so on.

1. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

3. Vibrating motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.

4. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
5. Brackets: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.

6. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.


Important Information About Multi-function Low Noise Linear Vibrating Screen Machine for Calcium Carbonate:

Model AZ-515, 520, 525, 1025, 1030, 1040, 1225, 1230, 1235, 1535 etc.
Shape rectangular shape
Motion linear vibrating motion
Structural Composition screen box, screen, vibration motor, motor base, damping spring, support etc.
Vibrating Motor two sets of horizontal vibrating motors, synchronous reverse rotation
Applicable Material suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%
Screen Surface Angle horizontal or inclined (0°~7°)
Layers of Screen 1~6 layers of screen (The higher layers can be customized according to the actual situation)
Screen Frame wooden screen frame, carbon steel screen frame, stainless steel screen frame etc.
Mesh Cleaning Method bouncing balls, ultrasonic system etc.
Material carbon steel, stainless steel 304/316L, titanium material etc.
Screen Size screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc.
Application sand, refractory material, plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff etc.
Surface Treatment Sand blasting, plastic spraying, spray paint, mirror polishing etc.



Working Principle of Multi-function Low Noise Linear Vibrating Screen Machine for Calcium Carbonate:

Calcium Carbonate Vibrating Screen Machine Multi Function Screening Equipment 0

  The linear vibrating sieve machine use vibration motor excitation as the source of vibration,so that the material was tossed in the sieve,while forward in a straight line material evenly into the screening machine feeder feed port,multi-layer mesh specifications of sieve,sieve material,respectively,discharged from their exports.

  There are two ways to install the vibration motor of the linear screen:

1. Bilateral: Installed on both sides

2. Bottom mounted: Installed below



Technical Parameters of Multi-function Low Noise Linear Vibrating Screen Machine for Calcium Carbonate:

Model Nominal Size (mm) Particle Size (mm) Leaning Angle of Screen (°) Amplitude (mm) Layer Power (Kw)
AZ-520 500*2000 0.074~10 0~7° 4~10 1~6 2*(0.4~0.75)
AZ-525 500*2500 2*(0.4~0.75)
AZ-530 500*3000 2*(0.4~0.75)
AZ-1020 1000*2000 2*(0.4~0.75)
AZ-1025 1000*2500 2*(0.4~1.1)
AZ-1030 1000*3000 2*(1.1~1.5)
AZ-1040 1000*4000 2*(1.1~1.5)
AZ-1225 1200*2500 2*(1.1~1.5)
AZ-1235 1200*3500 2*(1.1~2.2)
AZ-1250 1200*5000 2*(1.1~2.2)
AZ-1535 1500*3500 2*(1.1~2.2)
AZ-1560 1500*6000 2*(2.2~3.7)
AZ-1845 1800*4500 0.074~15 2*(2.2~3.7)
AZ-2050 2000*5000 2*(2.2~3.7)
AZ-2060 2000*6000 2*(2.2~3.7)

Note: The data in the table are for reference only. Our company reserve the right to modify the above data.



Features of Multi-function Low Noise Linear Vibrating Screen Machine for Calcium Carbonate:

1. Easy to repace screen and parts
Using a special grid structure design, the screens and parts can be easily changed and tighten.



2. Movable screening process
At the same time of screening, the material has been transported over long distances.


3. Suitable for different screening sizes
Change the screen spacing and inclination according to material size, permeability probability and productivity


4. High capacity and Friendly working space
With excellent structuer of machine and motors, the output is very high and working noise is low.


5. High sieving precision
The material has a long stroke on the screen surface, high screening precision and large processing capacity.



6. Good sealing and minimal dust spillage
Fully enclosed structure, automatic discharge lead to nearly zero rate of dust spillage.


7. Low maintenance cost and long service time
All parts of the screen body are welded properly with excellent steel plates,and the overall rigidity is good, firm and reliable for very long time.


8. Flexible machine structures
Different shapes and structures can be designed according to the production site.



Application of Multi-function Low Noise Linear Vibrating Screen Machine for Calcium Carbonate:

It is widely used in grinding materials, chemical, construction, chemicals, pharmacy, metallurgy, ceramics, fertilizers, coal industry to screening and grading the granular and powder bulk materials.

1. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
2. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

3. Metallurgy industry: aluminum powder, lead powder, copper powder, ore, alloy powder ,electrode powder, manganese dioxide, electrolytic copper powder, electric magnetic material, polishing powder, refractory material, etc.

4. Chemical industry: resin pigment, medicine, grease, paint, palette, cosmetic, etc.
5. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide, etc.
6. Abrasive material and ceramic industry: building sand, alumina, abrasive,refractory material, mica, slurry, etc.
7. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
8. Pollution treatment: waste water, waste oil, additives, activated carbon,etc.



Calcium Carbonate Vibrating Screen Machine Multi Function Screening Equipment 1
