|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for small size|
|Delivery Time:||20~30 workdays after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||10 sets per month|
|Layers Of Screen:||1~6 Layers Of Screen||Material:||Stainless Steel, Carbon Steel, Titanium Materials Etc.|
|Screen Holder:||Wooden Frame, Carbon Steel Frame, Stainless Steel Frame,etc.||Mesh Cleaning Machine:||Rubber Balls, Ultrasonic Deblinding System Etc.|
|Power:||2 Sets * (0.4KW~3.7KW)||Surface Treatment:||Spray Paint, Plastic Spraying, Mirror Polishing, Sand Blasting Etc.|
|Application:||Food Industry, Chemical Industry, Mining Industry Etc.||Optional:||Quick-open Clamps, Pneumatic Lifting Device Etc.|
linear motion vibrating screen,
horizontal vibrating screen

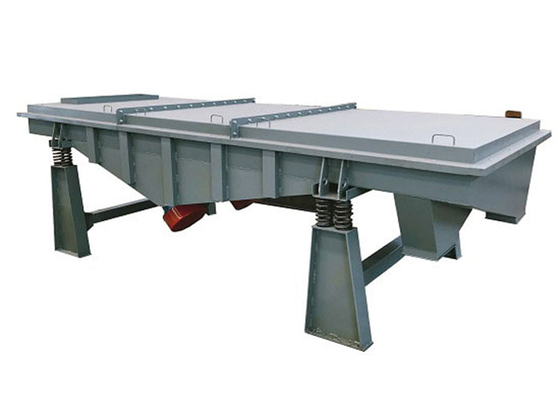

Carbon Steel Linear Vibrating Screen Sandalwood Seed Sieve Separator Machine
Introduction of Carbon Steel Linear Vibrating Screen Sieve Machine for Sandalwood Seed:
Carbon Steel Linear Vibrating Screen Sieve Machine for Sandalwood Seed is a standard and universal screening equipment. With low power consumption, high yield, simple structure,easy maintenance, fully enclosed structure, no dust, automatic nesting, more suitable for pipeline operations. Linear vibrating screen is the efficient new screening equipment widely used in mining, coal, metallurgy, building materials, refractory materials, light industry, chemical industry.
Characteristics of Carbon Steel Linear Vibrating Screen Sieve Machine for Sandalwood Seed:
1. Easy to repace screen and parts
Using a special grid structure design, the screens and parts can be easily changed and tighten.
2. High capacity and Friendly working space
With excellent structuer of machine and motors, the output is very high and working noise is low.
3. High sieving precision
The material has a long stroke on the screen surface, high screening precision and large processing capacity.
4. Movable screening process
At the same time of screening, the material has been transported over long distances.
5. Suitable for different screening sizes
Change the screen spacing and inclination according to material size, permeability probability and productivity
6. Flexible machine structures
Different shapes and structures can be designed according to the production site.
7. Good sealing and minimal dust spillage
Fully enclosed structure, automatic discharge lead to nearly zero rate of dust spillage.
8. Low maintenance cost and long service time
All parts of the screen body are welded properly with excellent steel plates,and the overall rigidity is good, firm and reliable for very long time.
Important Information About Carbon Steel Linear Vibrating Screen Sieve Machine for Sandalwood Seed:
|Model||AZ-515, 520, 525, 1025, 1030, 1040, 1225, 1230, 1235, 1535 etc.|
|Motion||linear vibrating motion|
|Structural Composition||screen box, screen, vibration motor, motor base, damping spring, support etc.|
|Vibrating Motor||two sets of horizontal vibrating motors, synchronous reverse rotation|
|Applicable Material||suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%|
|Screen Surface Angle||horizontal or inclined (0°~7°)|
|Layers of Screen||1~6 layers of screen (The higher layers can be customized according to the actual situation)|
|Screen Frame||wooden screen frame, carbon steel screen frame, stainless steel screen frame etc.|
|Mesh Cleaning Method||bouncing balls, ultrasonic system etc.|
|Material||carbon steel, stainless steel 304/316L, titanium material etc.|
|Screen Size||screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc.|
|Application||sand, refractory material, plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff etc.|
|Surface Treatment||Sand blasting, plastic spraying, spray paint, mirror polishing etc.|
Working Principle of Carbon Steel Linear Vibrating Screen Sieve Machine for Sandalwood Seed:
The linear vibrating sieve machine use vibration motor excitation as the source of vibration,so that the material was tossed in the sieve,while forward in a straight line material evenly into the screening machine feeder feed port,multi-layer mesh specifications of sieve,sieve material,respectively,discharged from their exports.
There are two ways to install the vibration motor of the linear screen:
1. Bilateral: Installed on both sides
2. Bottom mounted: Installed below
Structural Composition of Carbon Steel Linear Vibrating Screen Sieve Machine for Sandalwood Seed:
The rectangular vibrating screens are mainly composed of screen box, screen frames, screen, vibration motor, electric pedestal, damping spring, frame and so on.
1. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
4. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
5. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
6. Brackets: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Technical Parameters of Carbon Steel Linear Vibrating Screen Sieve Machine for Sandalwood Seed:
|Model||Nominal Size (mm)||Particle Size (mm)||Leaning Angle of Screen (°)||Amplitude (mm)||Layer||Power (Kw)|
Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
Application of Carbon Steel Linear Vibrating Screen Sieve Machine for Sandalwood Seed:
1. Chemical industry: resin pigment, medicine, grease, paint, palette, cosmetic, etc.
2. Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
3. Metallurgy industry: aluminum powder, lead powder, copper powder, ore, alloy powder ,electrode powder, manganese dioxide, electrolytic copper powder, electric magnetic material, polishing powder, refractory material, etc.
4. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide, etc.
5. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive,refractory material, slurry, etc.
6. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
7. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
8. Pollution treatment: waste oil, waste water,additives, activated carbon,etc.
Contact Person: Ms. Magie
Other Names: linear vibrating screen, linear vibrating screener, rectangualr separator, horizonal vibrating screen etc.
Purpose: suitable for the rough screening of non-viscous material with <7% water content
Application: limestone, chemical fertilizer, plastic particle, tea, lysine, urea etc.
Motor: two vibrating motors, horizontal arrangement
