| Place of Origin: | China |
| Brand Name: | AAREAL |
| Certification: | ISO9001:2015 |
| Model Number: | AZ |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Fumigation-free plywood wooden case for small size |
| Delivery Time: | 20~30 workdays after order confirmed |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10 sets per month |
| Characteristics: | Low Noise And Energy Consumption, Small Size, High Yield Etc. | Optional: | Quick-open Clamps, Pneumatic Lifting Device Etc. |
|---|---|---|---|
| Mesh De-blinding: | Bounce Balls, Ultrasonic Deblinding System Etc. | Screen Holder: | Wooden Frame, Carbon Steel Frame, Stainless Steel Frame,etc. |
| Surface Treatment: | Spray Paint, Plastic Spraying, Mirror Polishing, Sand Blasting Etc. | Power: | 2 Sets * (0.4KW~3.7KW) |
| Material: | Stainless Steel, Carbon Steel, Titanium Materials Etc. | Application: | Chemical Industry, Mining Industry, Food Industry Etc. |
| High Light: | linear motion vibrating screen,horizontal vibrating screen |
||

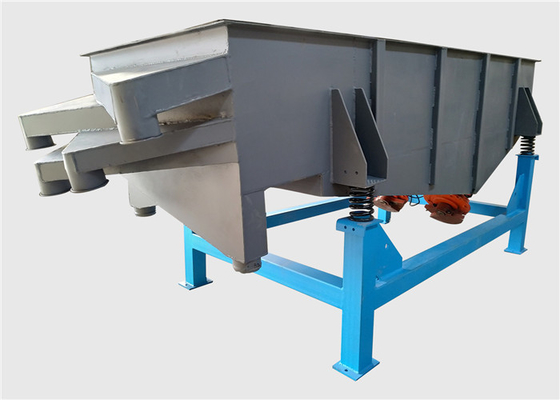

High Efficiency Linear Vibrating Screen Vibratory Sand Screening Machine
Introduction of High Efficiency Silica Sand Linear Vibrating Screen Separator Machine:
High Efficiency Silica Sand Linear Vibrating Screen Separator Machine is a standard and universal screening equipment. The movement track of its screen box is close to straight line. Almost all the linear vibrating machine are consisted of the screen box, supporting or hanging device, driving unit, vibration isolation etc.
Important Information About High Efficiency Silica Sand Linear Vibrating Screen Separator Machine:
| Model | AZ-515, 520, 525, 1025, 1030, 1040, 1225, 1230, 1235, 1535 etc. |
| Shape | rectangular shape |
| Motion | linear vibrating motion |
| Structural Composition | screen box, screen, vibration motor, motor base, damping spring, support etc. |
| Vibrating Motor | two sets of horizontal vibrating motors, synchronous reverse rotation |
| Applicable Material | suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7% |
| Screen Surface Angle | horizontal or inclined (0°~7°) |
| Layers of Screen | 1~6 layers of screen (The higher layers can be customized according to the actual situation) |
| Screen Frame | wooden screen frame, carbon steel screen frame, stainless steel screen frame etc. |
| Mesh Cleaning Method | bouncing balls, ultrasonic system etc. |
| Material | carbon steel, stainless steel 304/316L, titanium material etc. |
| Screen Size | screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc. |
| Application | refractory material, plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff etc. |
| Surface Treatment | Sand blasting, plastic spraying, spray paint, mirror polishing etc. |
Working Principle of High Efficiency Silica Sand Linear Vibrating Screen Separator Machine:
The linear vibrating sieve machine use vibration motor as vibration source, the materials are rose and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different outlets.
There are two ways to install the vibration motor of the linear screen:
1. Bilateral: Installed on both sides
2. Bottom mounted: Installed below
Characteristics of High Efficiency Silica Sand Linear Vibrating Screen Separator Machine:
1. Simple structure, seal strict, low noise, easy to repairing, low energy consumption.
2. Suitable for size sieving, grading, decontaminating of material, with big processing capacity.
3. Two vibrating motor as the excitation source, obvious processing effect.
4. It can be installed one or more layers of screen.
5. Mainly using in diggings, metallurgy, abrasive and abrasive tools, building materials etc.
6. Power distribution can be adjusted according to customers’ needs to adapt to the appropriate production conditions.
Structural Composition of High Efficiency Silica Sand Linear Vibrating Screen Separator Machine:
The rectangular vibrating screens are mainly composed of screen box, screen frames, screen, vibration motor, electric pedestal, damping spring, frame and so on.
1. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
4. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
5. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
6. Brackets: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Technical Parameters of High Efficiency Silica Sand Linear Vibrating Screen Separator Machine:
| Model | Nominal Size (mm) | Particle Size (mm) | Leaning Angle of Screen (°) | Amplitude (mm) | Layer | Power (Kw) |
| AZ-520 | 500*2000 | 0.074~10 | 0~7° | 4~10 | 1~6 | 2*(0.4~0.75) |
| AZ-525 | 500*2500 | 2*(0.4~0.75) | ||||
| AZ-530 | 500*3000 | 2*(0.4~0.75) | ||||
| AZ-1020 | 1000*2000 | 2*(0.4~0.75) | ||||
| AZ-1025 | 1000*2500 | 2*(0.4~1.1) | ||||
| AZ-1030 | 1000*3000 | 2*(1.1~1.5) | ||||
| AZ-1040 | 1000*4000 | 2*(1.1~1.5) | ||||
| AZ-1225 | 1200*2500 | 2*(1.1~1.5) | ||||
| AZ-1235 | 1200*3500 | 2*(1.1~2.2) | ||||
| AZ-1250 | 1200*5000 | 2*(1.1~2.2) | ||||
| AZ-1535 | 1500*3500 | 2*(1.1~2.2) | ||||
| AZ-1560 | 1500*6000 | 2*(2.2~3.7) | ||||
| AZ-1845 | 1800*4500 | 0.074~15 | 2*(2.2~3.7) | |||
| AZ-2050 | 2000*5000 | 2*(2.2~3.7) | ||||
| AZ-2060 | 2000*6000 | 2*(2.2~3.7) |
Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
Application of High Efficiency Silica Sand Linear Vibrating Screen Separator Machine:
1. Chemical Industry: colophony, industry leechdom, cosmetic, paint.
2. Grinding Materials And china Industry: alumina, quartz, slurry, kaoline, carborundum, sprayer dust.
3. Food Industry: sugar,flour,amylum, rice powder,milk powder, soyabean milk, angel cake,juice,sauce,spice,salt,starch.
4. Paper-Making Industry: dope,white soil slurry, black and white liquid, disposed liquid, paper-making liquid and waste water recycling.
5. Metallurgy, Mining Industry: aluminum powder, ceruse, copper powder, ore alloy powder, welding rod powder, dioxide manganese, electrolyze copper powder, electromagnetic material, rubbing powder, fire-proof material, kaoline, lime, heavy calcium carbonate.
6. Pharmacy Industry: chinese herbal medicine liquid, medicine powder, liquid and particle.
