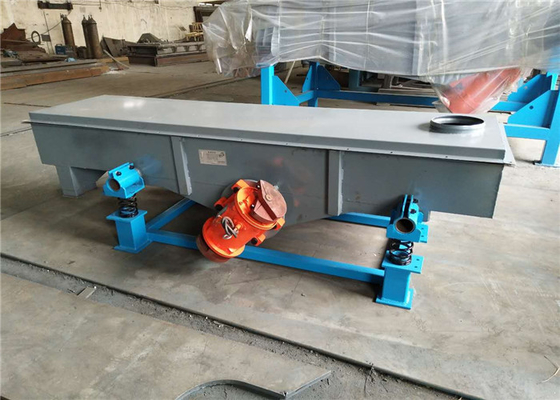

Chemical Industry Linear Vibrating Screen Double Horizontal Vibrating Motors

Chemical Industry Linear Vibrating Screen Double Horizontal Vibrating Motors

  • Chemical Industry Linear Vibrating Screen Double Horizontal Vibrating Motors
  • Chemical Industry Linear Vibrating Screen Double Horizontal Vibrating Motors
Chemical Industry Linear Vibrating Screen Double Horizontal Vibrating Motors
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for small size
Delivery Time: 20~30 workdays after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Screen Size: Width 500mm~2000mm, Length 1500mm~6000mm Characteristics: High Capacity, Low Noise And Energy Consumption, Small Size Etc.
Mesh De-blinding: Bounce Balls, Ultrasonic Deblinding System Etc. Surface Finish: Spray Paint, Plastic Spraying, Sand Blasting, Mirror Polishing Etc.
Screen Frame: Wooden Frame, Carbon Steel Frame, Stainless Steel Frame,etc. Material: Stainless Steel, Carbon Steel, Titanium Materials Etc.
Optional: Explosion-proof Motor, Quick-open Clamps, Rubber Springs Etc. Vibrating Motor: Double Horizontal Vibrating Motors
High Light:

linear motion vibrating screen

,

horizontal vibrating screen

Chemical Industry Linear Vibrating Screen Double Horizontal Vibrating Motors



Introduction of Large Capacity Linear Vibratory Screener Machine Used In Chemical Industry:

Large Capacity Linear Vibratory Screener Machine Used In Chemical Industry is a classical and universal fine screening equipment. The movement track of its screen box is close to straight line. Almost all the linear vibrating screens are consisted of the screen box, supporting or hanging device, driving unit, vibration isolation part etc.



Working Principle of Large Capacity Linear Vibratory Screener Machine Used In Chemical Industry:

Chemical Industry Linear Vibrating Screen Double Horizontal Vibrating Motors 0

  The linear vibrating sifter machine uses double vibrating motors to drive, when two motors rotate synchronously and reversely, exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction,so its movement track is linear. There is an angle of inclination between the two motor axises relative to the screen deck. Under the influence of the resultant force of exciting force and materiels itself weight,materiels are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel .Applied in flowing line to achieve automatical operation.



Important Information About Large Capacity Linear Vibratory Screener Machine Used In Chemical Industry:

Model AZ-515, 520, 525, 1025, 1030, 1040, 1225, 1230, 1235, 1535 etc.
Shape rectangular shape
Motion linear motion
Structural Composition screen box, screen, vibration motor, motor base, damping spring, support etc.
Vibrating Motor two sets of horizontal vibrating motors, synchronous reverse rotation
Applicable Material suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%
Screen Surface horizontal or inclined (0°~7°)
Layers of Screen 1~6 layers of screen (The higher layers can be customized according to the actual situation)
Screen Frame wooden screen frame, carbon steel screen frame, stainless steel screen frame etc.
Mesh Cleaning Method bouncing balls, ultrasonic system etc.
Material carbon steel, stainless steel 304/316L,  titanium material etc.
Screen Size screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc.
Application plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc.
Surface Treatment Sand blasting, plastic spraying, spray paint, mirror polishing etc.



Application of Large Capacity Linear Vibratory Screener Machine Used In Chemical Industry:

1. Chemical industry: grease, paint, palette, resin pigment, medicine, etc.
2. Plastics industry.
3. Abrasive material and ceramic industry: abrasive, refractory material, building sand, mica, alumina, slurry, etc.

4. Food industry: starch, milk powder, yeast powder, sugar, salt, alkali, gourmet powder, pollen, food additive, bean milk, juice, etc.
5. Organic fertilizer industry.
6. Mechanical industry: powder metallurgy, casting sand, electromagnetic material and metal powder, etc
7. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
8. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.



Structural Composition of Large Capacity Linear Vibratory Screener Machine Used In Chemical Industry:

The rectangular vibrating screens are composed of screen box, vibration motor, damping system and chassis. The screen box consists of chute, roof, screen frame, screen plate (mesh), wire gauze.

1. Screen box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.

4. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.

5. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.



Features of Large Capacity Linear Vibratory Screener Machine Used In Chemical Industry:

1. High accuracy in screening, high yield and simple structure.
2. The weld joints of each part of the sieve body adopt rolled plate and proximate matter (part of the group adopt bolted connection), it has such characteristics as good integral rigidity and fastness and reliability.
3. Totally closed structure, automatic discharging, more suitable for assembly line work.
4. Less energy consumption, low noise, long service life of the screen.



Technical Parameters of Large Capacity Linear Vibratory Screener Machine Used In Chemical Industry:

Model Nominal Size (mm) Particle Size (mm) Leaning Angle of Screen (°) Amplitude (mm) Layer Power (Kw)
AZ-520 500*2000 0.074~10 0~7° 4~10 1~6 2*(0.4~0.75)
AZ-525 500*2500 2*(0.4~0.75)
AZ-530 500*3000 2*(0.4~0.75)
AZ-1020 1000*2000 2*(0.4~0.75)
AZ-1025 1000*2500 2*(0.4~1.1)
AZ-1030 1000*3000 2*(1.1~1.5)
AZ-1040 1000*4000 2*(1.1~1.5)
AZ-1225 1200*2500 2*(1.1~1.5)
AZ-1235 1200*3500 2*(1.1~2.2)
AZ-1250 1200*5000 2*(1.1~2.2)
AZ-1535 1500*3500 2*(1.1~2.2)
AZ-1560 1500*6000 2*(2.2~3.7)
AZ-1845 1800*4500 0.074~15 2*(2.2~3.7)
AZ-2050 2000*5000 2*(2.2~3.7)
AZ-2060 2000*6000 2*(2.2~3.7)

Note: The data in the table are for reference only. Our company reserve the right to modify the above data.

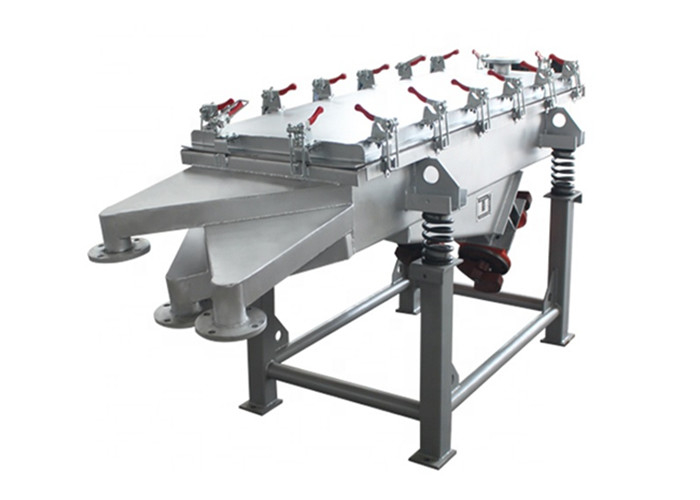

Chemical Industry Linear Vibrating Screen Double Horizontal Vibrating Motors 1Chemical Industry Linear Vibrating Screen Double Horizontal Vibrating Motors 2
