|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for small size|
|Delivery Time:||20~30 workdays after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||10 sets per month|
|Screen Size:||Width 500mm~2000mm, Length 1500mm~6000mm||Characteristics:||Small Size, High Capacity, Low Noise And Energy Consumption Etc.|
|Material:||Stainless Steel, Carbon Steel, Titanium Materials Etc.||Screen Decks:||1~6 Layers Of Screen (Can Be Customized)|
|Mesh De-blinding:||Ultrasonic Deblinding System, Bounce Balls Etc.||Screen Frame:||Carbon Steel Frame, Stainless Steel Frame, Wood Frame Etc.|
|Surface Finish:||Sand Blasting, Spray Paint, Plastic Spraying, Mirror Polishing Etc.||Vibrating Motor:||Double Horizontal Vibrating Motors|
vibratory screening equipment,
horizontal vibrating screen

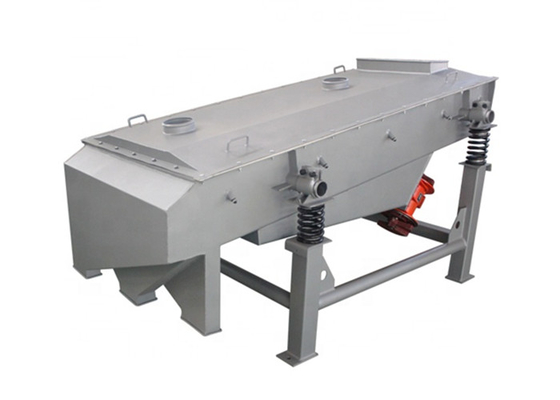

Marble Powder Rectangular Sifter Linear Vibration Filter Sieving Machine
Introduction of Large Capacity Linear Vibration Filter Sieving Machine for Marble Powder:
Large Capacity Linear Vibration Filter Sieving Machine for Marble Powder is also known as the rectangular vibrating screen, rectangular separator, linear vibrating screener, linear vibrating sieve etc. It is an efficient new screening equipment, which widely used in mining, coal, metallurgy, building materials industry, two sets of horizontal vibration motor to be power source, so that the screened material was tossed in the sieve, while forward in a straight line into the screening machine’s discharging outlet. It can be supplied of different sizes depending on capacity required. And can be supplied of multi-layer as requirements of screening aim. Inlets, outlets and legs can be customized to fit your installation requirements.
Application of Large Capacity Linear Vibration Filter Sieving Machine for Marble Powder:
1. Food industry: starch, milk powder, yeast powder, sugar, salt, alkali, gourmet powder, pollen, food additive, bean milk, juice, etc.
2. Plastics industry.
3. Abrasive material and ceramic industry: abrasive, refractory material, building sand, mica, alumina, slurry, etc.
4. Chemical industry: grease, paint, palette, resin pigment, medicine, etc.
5. Organic fertilizer industry.
6. Mechanical industry: powder metallurgy, casting sand, electromagnetic material and metal powder, etc
7. Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
8. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
Technical Parameters of Large Capacity Linear Vibration Filter Sieving Machine for Marble Powder:
|Model||Nominal Size (mm)||Particle Size (mm)||Leaning Angle of Screen (°)||Amplitude (mm)||Layer||Power (Kw)|
Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
Working Principle of Large Capacity Linear Vibration Filter Sieving Machine for Marble Powder:
Linear vibrating screen machine uses vibration motor as the vibration source, making the material can be thrown on the mesh, and moving forward as a straight line. The material from the feeder evenly came into the feed port of screening machine, then produced several specifications of upper screening material and bottom screening material through the multi-layer screen mesh, and discharged from their respective outlet.
Important Information About Large Capacity Linear Vibration Filter Sieving Machine for Marble Powder:
|Model||AZ-515, 520, 525, 1025, 1030, 1040, 1225, 1230, 1235, 1535 etc.|
|Structural Composition||screen box, screen, vibration motor, motor base, damping spring, support etc.|
|Vibrating Motor||two sets of horizontal vibrating motors, synchronous reverse rotation|
|Applicable Material||suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%|
|Screen Surface||horizontal or inclined (0°~7°)|
|Layers of Screen||1~6 layers of screen (The higher layers can be customized according to the actual situation)|
|Screen Frame||wooden screen frame, carbon steel screen frame, stainless steel screen frame etc.|
|Mesh Cleaning Method||bouncing balls, ultrasonic system etc.|
|Material||carbon steel, stainless steel 304/316L, titanium material etc.|
|Screen Size||screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc.|
|Application||plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc.|
|Surface Treatment||Sand blasting, plastic spraying, spray paint, mirror polishing etc.|
Structural Composition of Large Capacity Linear Vibration Filter Sieving Machine for Marble Powder:
The linear vibrating screener machines are composed of screen box, vibration motor, damping system and chassis. The screen box consists of chute, roof, screen frame, screen plate (mesh), wire gauze.
1. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
2. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
3. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
4. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
5. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Features of Large Capacity Linear Vibration Filter Sieving Machine for Marble Powder:
1. High accuracy in screening, high yield and simple structure.
2. The weld joints of each part of the sieve body adopt rolled plate and proximate matter (part of the group adopt bolted connection), it has such characteristics as good integral rigidity and fastness and reliability.
3. Totally closed structure, automatic discharging, more suitable for assembly line work.
4. Less energy consumption, low noise, long service life of the screen.
Contact Person: Ms. Magie
Other Names: linear vibrating screen, linear vibrating screener, rectangualr separator, horizonal vibrating screen etc.
Purpose: suitable for the rough screening of non-viscous material with <7% water content
Application: limestone, chemical fertilizer, plastic particle, tea, lysine, urea etc.
Motor: two vibrating motors, horizontal arrangement
