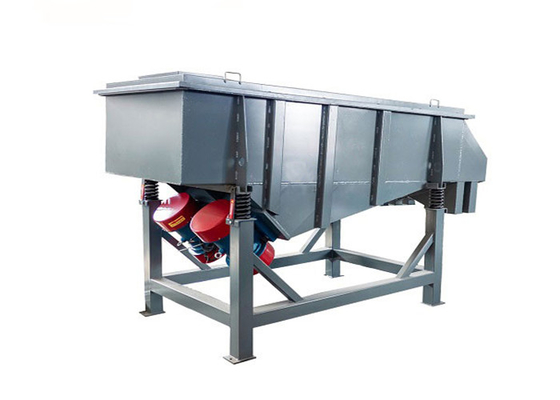

Blasting Shot Rectangular Vibrating Screen Machine With Twin Vibrating Motors
Introduction of Multilayer Efficient Rectangular Vibrating Sifter Machine for Blasting Shot:
Multilayer Efficient Rectangular Vibrating Sifter Machine for Blasting Shot uses a vibrating motor to throw materials in an upward and forward linear motion. These models typically operate with twin-vibrating motors that function in a synchronized fashion and move the centrifugal force parallel to the motor access. Centrifugal and gravity force help throw the material in the direction it moves, which effectively reduces its size and grades it.
With low energy consumption,high output,simple structure, easy maintenance, fully enclosed structure,no dust,scattered, automatic nesting,it is more suitable for assembly line operations. The linear vibrating screen machines are available in single or multi-deck types with sizes up to 2000mm wide and 6000mm long. They’re known for being rugged, stable and simple to maintain. Typical applications include primary and secondary classification, sizing, de-sliming, washing, dewatering and hot-material screening, among others.
Technical Parameters of Multilayer Efficient Rectangular Vibrating Sifter Machine for Blasting Shot:
| Model |
Nominal Size (mm) |
Particle Size (mm) |
Leaning Angle of Screen (°) |
Amplitude (mm) |
Layer |
Power (Kw) |
| AZ-520 |
500*2000 |
0.074~10 |
0~7° |
4~10 |
1~6 |
2*(0.4~0.75) |
| AZ-525 |
500*2500 |
2*(0.4~0.75) |
| AZ-530 |
500*3000 |
2*(0.4~0.75) |
| AZ-1020 |
1000*2000 |
2*(0.4~0.75) |
| AZ-1025 |
1000*2500 |
2*(0.4~1.1) |
| AZ-1030 |
1000*3000 |
2*(1.1~1.5) |
| AZ-1040 |
1000*4000 |
2*(1.1~1.5) |
| AZ-1225 |
1200*2500 |
2*(1.1~1.5) |
| AZ-1235 |
1200*3500 |
2*(1.1~2.2) |
| AZ-1250 |
1200*5000 |
2*(1.1~2.2) |
| AZ-1535 |
1500*3500 |
2*(1.1~2.2) |
| AZ-1560 |
1500*6000 |
2*(2.2~3.7) |
| AZ-1845 |
1800*4500 |
0.074~15 |
2*(2.2~3.7) |
| AZ-2050 |
2000*5000 |
2*(2.2~3.7) |
| AZ-2060 |
2000*6000 |
2*(2.2~3.7) |
Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
Structures of Multilayer Efficient Rectangular Vibrating Sifter Machine for Blasting Shot:
The linear vibrating screener machines are composed of screen box, vibration motor, damping system and chassis. The screen box consists of chute, roof, screen frame, screen plate (mesh), wire gauze.
1. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
3. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
4. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
5. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Working Principle of Multilayer Efficient Rectangular Vibrating Sifter Machine for Blasting Shot:
Linear vibrating screen machine uses vibration motor as the vibration source, making the material can be thrown on the mesh, and moving forward as a straight line. The material from the feeder evenly came into the feed port of screening machine, then produced several specifications of upper screening material and bottom screening material through the multi-layer screen mesh, and discharged from their respective outlet.
Important Information About Multilayer Efficient Rectangular Vibrating Sifter Machine for Blasting Shot:
| Model |
AZ-515, 520, 525, 1025, 1030, 1040, 1225, 1230, 1235, 1535 etc. |
| Shape |
rectangular shape |
| Motion |
linear motion |
| Structural Composition |
screen box, screen, vibration motor, motor base, damping spring, support etc. |
| Vibrating Motor |
two sets of horizontal vibrating motors, synchronous reverse rotation |
| Applicable Material |
suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7% |
| Screen Surface |
horizontal or inclined (0°~7°) |
| Layers of Screen |
1~6 layers of screen (The higher layers can be customized according to the actual situation) |
| Screen Frame |
wooden screen frame, carbon steel screen frame, stainless steel screen frame etc. |
| Mesh Cleaning Method |
bouncing balls, ultrasonic system etc. |
| Material |
carbon steel, stainless steel 304/316L, titanium material etc. |
| Screen Size |
screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc. |
| Application |
plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc. |
| Surface Treatment |
Sand blasting, plastic spraying, spray paint, mirror polishing etc. |
Technical Parameters of Multilayer Efficient Rectangular Vibrating Sifter Machine for Blasting Shot:
| Model |
Nominal Size (mm) |
Particle Size (mm) |
Leaning Angle of Screen (°) |
Amplitude (mm) |
Layer |
Power (Kw) |
| AZ-520 |
500*2000 |
0.074~10 |
0~7° |
4~10 |
1~6 |
2*(0.4~0.75) |
| AZ-525 |
500*2500 |
2*(0.4~0.75) |
| AZ-530 |
500*3000 |
2*(0.4~0.75) |
| AZ-1020 |
1000*2000 |
2*(0.4~0.75) |
| AZ-1025 |
1000*2500 |
2*(0.4~1.1) |
| AZ-1030 |
1000*3000 |
2*(1.1~1.5) |
| AZ-1040 |
1000*4000 |
2*(1.1~1.5) |
| AZ-1225 |
1200*2500 |
2*(1.1~1.5) |
| AZ-1235 |
1200*3500 |
2*(1.1~2.2) |
| AZ-1250 |
1200*5000 |
2*(1.1~2.2) |
| AZ-1535 |
1500*3500 |
2*(1.1~2.2) |
| AZ-1560 |
1500*6000 |
2*(2.2~3.7) |
| AZ-1845 |
1800*4500 |
0.074~15 |
2*(2.2~3.7) |
| AZ-2050 |
2000*5000 |
2*(2.2~3.7) |
| AZ-2060 |
2000*6000 |
2*(2.2~3.7) |
Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
Features of Multilayer Efficient Rectangular Vibrating Sifter Machine for Blasting Shot:
1. High accuracy in screening, high yield and simple structure.
2. The weld joints of each part of the sieve body adopt rolled plate and proximate matter (part of the group adopt bolted connection), it has such characteristics as good integral rigidity and fastness and reliability.
3. Totally closed structure, automatic discharging, more suitable for assembly line work.
4. Less energy consumption, low noise, long service life of the screen.
Application of Multilayer Efficient Rectangular Vibrating Sifter Machine for Blasting Shot:
Linear vibrating screen is widely used in mining, coal, refractories, metallurgy, building materials and other industries.It is usually used for the screening and grading materials in large, middle and small particles.
