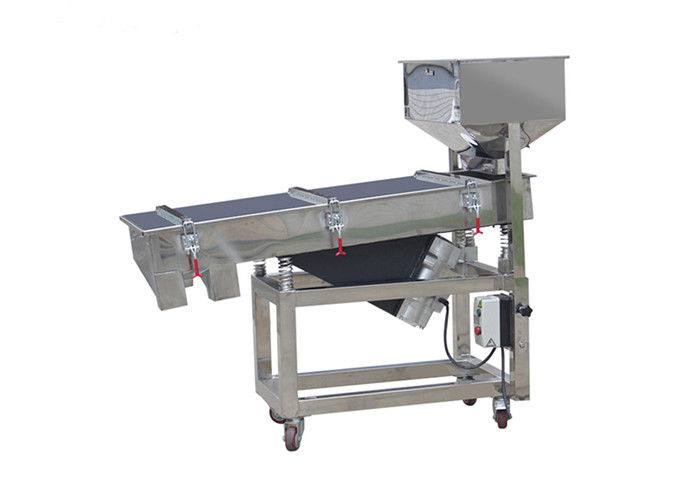

SS 316L Vibratory Sand Screening Machine Rectangular Vibrating Separator

SS 316L Vibratory Sand Screening Machine Rectangular Vibrating Separator

  • SS 316L Vibratory Sand Screening Machine Rectangular Vibrating Separator
  • SS 316L Vibratory Sand Screening Machine Rectangular Vibrating Separator
SS 316L Vibratory Sand Screening Machine Rectangular Vibrating Separator
Product Details:
Place of Origin: China
Brand Name: AAREAL
Certification: ISO9001:2015
Model Number: AZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Fumigation-free plywood wooden case for small size
Delivery Time: 20~30 workdays after order confirmed
Payment Terms: T/T, L/C
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Model: AZ-520, 1030, 1235, 1535 Etc. Material Granularity: 0.074mm~10mm
Screen Width: 500mm~1500mm (1800mm, 2000mm Not Suggested) Screen Length: 2000mm~4000mm (>4000mm Not Suggested)
Screen Frame: Wood Frame, Carbon Steel Frame, Stainless Steel Frame Etc. Mesh Cleaning Device: Bounce Balls, Ultrasonic Deblinding System Etc.
Vibrating Motor: Double Horizontal Vibrating Motors, Explosion-proof Type Optional Material: Stainless Steel, Carbon Steel, Titanium Materials Etc.
High Light:

linear motion vibrating screen

,

vibratory screening equipment

SS 316L Vibratory Sand Screening Machine Rectangular Vibrating Separator



Introduction of Stainless Steel Rectangular Vibrating Separator for Color Master Batch:

The main difference with a Stainless Steel Rectangular Vibrating Separator for Color Master Batch is that its motion is linear. It uses a vibrating motor to throw materials in an upward and forward linear motion. These models typically operate with twin-vibrating motors that function in a synchronized fashion and move the centrifugal force parallel to the motor access. Centrifugal and gravity force help throw the material in the direction it moves, which effectively reduces its size and grades it.

  Linear vibrating screen machines are available in single or multi-deck types with sizes up to 2000mm wide and 6000mm long. They’re known for being rugged, stable and simple to maintain. Typical applications include primary and secondary classification, sizing, de-sliming, washing, dewatering and hot-material screening, among others.



Technical Parameters of Stainless Steel Rectangular Vibrating Separator for Color Master Batch:

Model Nominal Size (mm) Particle Size (mm) Leaning Angle of Screen (°) Amplitude (mm) Layer Power (Kw)
AZ-520 500*2000 0.074~10 0~7° 4~10 1~6 2*(0.4~0.75)
AZ-525 500*2500 2*(0.4~0.75)
AZ-530 500*3000 2*(0.4~0.75)
AZ-1020 1000*2000 2*(0.4~0.75)
AZ-1025 1000*2500 2*(0.4~1.1)
AZ-1030 1000*3000 2*(1.1~1.5)
AZ-1040 1000*4000 2*(1.1~1.5)
AZ-1225 1200*2500 2*(1.1~1.5)
AZ-1235 1200*3500 2*(1.1~2.2)
AZ-1250 1200*5000 2*(1.1~2.2)
AZ-1535 1500*3500 2*(1.1~2.2)
AZ-1560 1500*6000 2*(2.2~3.7)
AZ-1845 1800*4500 0.074~15 2*(2.2~3.7)
AZ-2050 2000*5000 2*(2.2~3.7)
AZ-2060 2000*6000 2*(2.2~3.7)

Note: The data in the table are for reference only. Our company reserve the right to modify the above data.



Structure of Stainless Steel Rectangular Vibrating Separator for Color Master Batch:

The linear vibrating screener machines are composed of screen box, vibration motor, damping system and chassis. The screen box consists of chute, roof, screen frame, screen plate (mesh), wire gauze.

1. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
2Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.

3Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.

4. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.

5. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
6Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.



Working Principle of Stainless Steel Rectangular Vibrating Separator for Color Master Batch:

SS 316L Vibratory Sand Screening Machine Rectangular Vibrating Separator 0

  Linear vibrating screen is designed with dual-vibration motor drive, two synchronous motors are reversely placed so that the exciter generate reverse excitation force, the exciting force generated by eccentric block cancel each other out on the parallel direction of motor axis, and stack together with the perpendicular direction of motor axis, so its trajectory is linear.Linear vibrating screen is suitable for particle size from 0.074 -5 mm,the maximum size should be less than 10mm.



Features of Stainless Steel Rectangular Vibrating Separator for Color Master Batch:

1. Less energy consumption,lower noise,longer service life
2. The beam and screen box are connected by high strength blot without welding
3. High accuracy screening efficiency,simple and stable structure, convenient maintenance
4. Suitable for rough screening with high capacity
5. Long travel distance for materials on the screen surface, high screening efficiency



Important Information About Stainless Steel Rectangular Vibrating Separator for Color Master Batch:

Shape rectangular shape
Motion linear motion
Structural Composition screen box, screen, vibration motor, motor base, damping spring, support etc.
Vibrating Motor two sets of horizontal vibrating motors, synchronous reverse rotation
Applicable Material suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%
Screen Surface horizontal or inclined (0°~7°)
Layers of Screen 1~6 layers of screen (The higher layers can be customized according to the actual situation)
Screen Frame wooden screen frame, carbon steel screen frame, stainless steel screen frame etc.
Mesh Cleaning Method bouncing balls, ultrasonic system etc.
Material carbon steel, stainless steel 304/316L,  titanium material etc.
Screen Size screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc.
Application plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc.
Surface Treatment Sand blasting, plastic spraying, spray paint, mirror polishing etc.



Application of Stainless Steel Rectangular Vibrating Separator for Color Master Batch:

1. Food industry: gourmet powder, starch, milk powder, yeast powder, sugar, salt, alkali, pollen, food additive, bean milk, juice, etc.

2. Metallurgy industry: electrode powder, manganese dioxide, electrolytic copper powder, aluminum powder, lead powder, copper powder, ore, alloy powder, electric magnetic material, polishing powder, refractory material, etc.

3. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.

4. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

5. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide, etc.

6. Chemical industry: resin pigment, medicine, grease, paint, palette, cosmetic, etc.

7. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive,refractory material, slurry, etc.

8. Pollution treatment: waste oil, waste water,additives, activated carbon,etc.



Technical Parameters of Stainless Steel Rectangular Vibrating Separator for Color Master Batch:

Model Nominal Size (mm) Particle Size (mm) Leaning Angle of Screen (°) Amplitude (mm) Layer Power (Kw)
AZ-520 500*2000 0.074~10 0~7° 4~10 1~6 2*(0.4~0.75)
AZ-525 500*2500 2*(0.4~0.75)
AZ-530 500*3000 2*(0.4~0.75)
AZ-1020 1000*2000 2*(0.4~0.75)
AZ-1025 1000*2500 2*(0.4~1.1)
AZ-1030 1000*3000 2*(1.1~1.5)
AZ-1040 1000*4000 2*(1.1~1.5)
AZ-1225 1200*2500 2*(1.1~1.5)
AZ-1235 1200*3500 2*(1.1~2.2)
AZ-1250 1200*5000 2*(1.1~2.2)
AZ-1535 1500*3500 2*(1.1~2.2)
AZ-1560 1500*6000 2*(2.2~3.7)
AZ-1845 1800*4500 0.074~15 2*(2.2~3.7)
AZ-2050 2000*5000 2*(2.2~3.7)
AZ-2060 2000*6000 2*(2.2~3.7)

Note: The data in the table are for reference only. Our company reserve the right to modify the above data.



SS 316L Vibratory Sand Screening Machine Rectangular Vibrating Separator 1SS 316L Vibratory Sand Screening Machine Rectangular Vibrating Separator 2
