|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Fumigation-free plywood wooden case for small size|
|Delivery Time:||20~30 workdays after order confirmed|
|Payment Terms:||T/T, L/C|
|Supply Ability:||10 sets per month|
|Movement:||Linear Motion||Screen Frame:||Wooden Frame, Carbon Steel Frame, Stainless Steel Frame Etc.|
|Screen Width*Length:||1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*3000mm, 1200*3500mm, 1200*4000mm, 1500*3500mm Etc.||Screen Slope Angle:||Inclination Angle 0°~7°|
|Mesh Cleaning Device:||Rubber Balls, Ultrasonic Deblinding System Etc.||Material Granularity:||0.074mm~10mm|
|Vibrating Motor:||Double Horizontal Vibrating Motors||Application:||Sand, Gravel, Limestone, Grain Of Any Powder Or Particles|
vibratory screening equipment,
horizontal vibrating screen

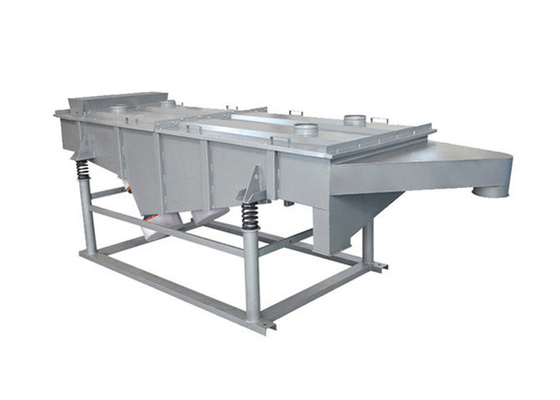

High Precision Vibratory Screening Equipment Multideck For Fertilizer Granules
Introduction of Large Capacity Multi-deck Linear Vibrating Sieve Machine for Fertilizer Granules:
Large Capacity Multi-deck Linear Vibrating Sieve Machine for Fertilizer Granules is an efficient new screening equipment, which widely used in mining, coal, metallurgy, building materials industry, two sets of horizontal vibration motor to be power source, so that the screened material was tossed in the sieve, while forward in a straight line into the screening machine’s discharging outlet. It can be supplied of different sizes depending on capacity required. And can be supplied of multi-layer as requirements of screening aim. Inlets, outlets and legs can be customized to fit your installation requirements.
We produce both light and heavy-duty type linear vibrating screen which is suitable for anything, from screening off fine particles as product moves along a feeding line, to those specifically designed for separating out complex and irregular shapes using a special purpose screen.
Features of Large Capacity Multi-deck Linear Vibrating Sieve Machine for Fertilizer Granules:
1. Suitable for different screening sizes:
Change the screen spacing and inclination according to material size, permeability probability and productivity.
2. High sieving precision:
The material has a long stroke on the screen surface, high screening precision and large processing capacity.
3. High capacity and Friendly working space:
With excellent structuer of machine and motors, the output is very high and working noise is low.
4. Low maintenance cost and long service time:
All parts of the screen body are welded properly with excellent steel plates, and the overall rigidity is good, firm and reliable for very long time.
5. Flexible machine structures:
Different shapes and structures can be designed according to the production site.
6. Good sealing and minimal dust spillage:
Fully enclosed structure, automatic discharge lead to nearly zero rate of dust spillage.
7. Movable screening process:
At the same time of screening, the material has been transported over long distances.
8. Easy to repace screen and parts:
Using a special grid structure design, the screens and parts can be easily changed and tighten.
Important Information About Large Capacity Multi-deck Linear Vibrating Sieve Machine for Fertilizer Granules:
|Structural Composition||screen box, screen, vibration motor, motor base, damping spring, support etc.|
|Vibrating Motor||two sets of horizontal vibrating motors, synchronous reverse rotation|
|Applicable Material||suitable for sieving 0.074mm~10mm non-sticky materials with moisture content less than 7%|
|Screen Surface||horizontal or inclined (0°~7°)|
|Layers of Screen||1~6 layers of screen (The higher layers can be customized according to the actual situation)|
|Screen Frame||wooden screen frame, carbon steel screen frame, stainless steel screen frame etc.|
|Mesh Cleaning Method||bouncing balls, ultrasonic system etc.|
|Material||carbon steel, stainless steel 304/316L, titanium material etc.|
|Screen Size||screen width*length 500*2000mm, 500*2500mm, 1000*2000mm, 1000*2500mm, 1000*3000mm, 1000*4000mm, 1200*2500mm, 1200*3500mm, 1200*4000mm, 1500*3500mm etc.|
|Application||plastic particle, tea, chemical fertilizer, lysine, urea, organic fertilizer, limestone, fodder, feeding stuff, refractory material etc.|
|Surface Treatment||Sand blasting, plastic spraying, spray paint, mirror polishing etc.|
Working Principle of Large Capacity Multi-deck Linear Vibrating Sieve Machine for Fertilizer Granules:
The rectangular vibrating separator uses double vibrating motors to be power source, when two motors synchronous reversely rotate, exciter forces eccentric block generates are undone in parallel with the direction of motor axis and unite as one across the motor axis direction, so its movement trajectory is linear. There is an angle of inclination two motor axis relative to screen deck, under the influence of exciter force and materials self weight,materials are threw up to make saltatory and linear movement forward on the screen deck in order to screen and grade the materials. Applied in flowing line to achieve automatic operation.
Structure of Large Capacity Multi-deck Linear Vibrating Sieve Machine for Fertilizer Granules:
The rectangular vibrating sieve machine is composed of two vibration motors, a sieve box, a screen mesh, a vibration absorbing body and a vibration damping device.
1. Vibration motor: the vibration motor use and maintenance method to see the vibration motor operating instructions.
2. Sieve box: welded by steel plate, with certain strength and rigidity, it is the main component of screen machine.
3. Screen Mesh: the screen mesh is perforated plate. The overall stiffness is good, solid and reliable.
4. Vibration damping spring: to prevent vibration from passing to the ground and support the full weight of the screen box. When installing, the spring must be perpendicular to the ground.
5. Motor pedestal: the motor pedestal of the down vibration type of sieve machine (the motor is installed under the sieve box) can be moved. The connecting screw must be tightened before using, Especially the new screening machine must be repeatedly tightened three days before trial, so as to avoid accidents caused by loosening.
6. Bracket: the bracket is used to support the screen box. It must be mounted perpendicular to the ground during installation. The bracket and sieve body part shall be joined by the compression spring.
Technical Parameters of Large Capacity Multi-deck Linear Vibrating Sieve Machine for Fertilizer Granules:
|Model||Nominal Size (mm)||Particle Size (mm)||Leaning Angle of Screen (°)||Amplitude (mm)||Layer||Power (Kw)|
Note: The data in the table are for reference only. Our company reserve the right to modify the above data.
Application of Large Capacity Multi-deck Linear Vibrating Sieve Machine for Fertilizer Granules:
1. Metallurgy industry: electrode powder, manganese dioxide, electrolytic copper powder, aluminum powder, lead powder, copper powder, ore, alloy powder, electric magnetic material, polishing powder, refractory material, etc.
2. Chemical industry: resin pigment, medicine, grease, paint, palette, cosmetic, etc.
3. Food industry: gourmet powder, starch, milk powder, yeast powder, sugar, salt, alkali, pollen, food additive, bean milk, juice, etc.
4. Abrasive material and ceramic industry: building sand, mica, alumina, abrasive,refractory material, slurry, etc.
5. Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
6. Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.
7. Mining industry: kaolin, alumina, carbon, quartz sand,titanium oxide, zinc oxide, etc.
8. Pollution treatment: waste oil, waste water,additives, activated carbon,etc.
